AP-51xx Access Point Product Reference Guide
5-2

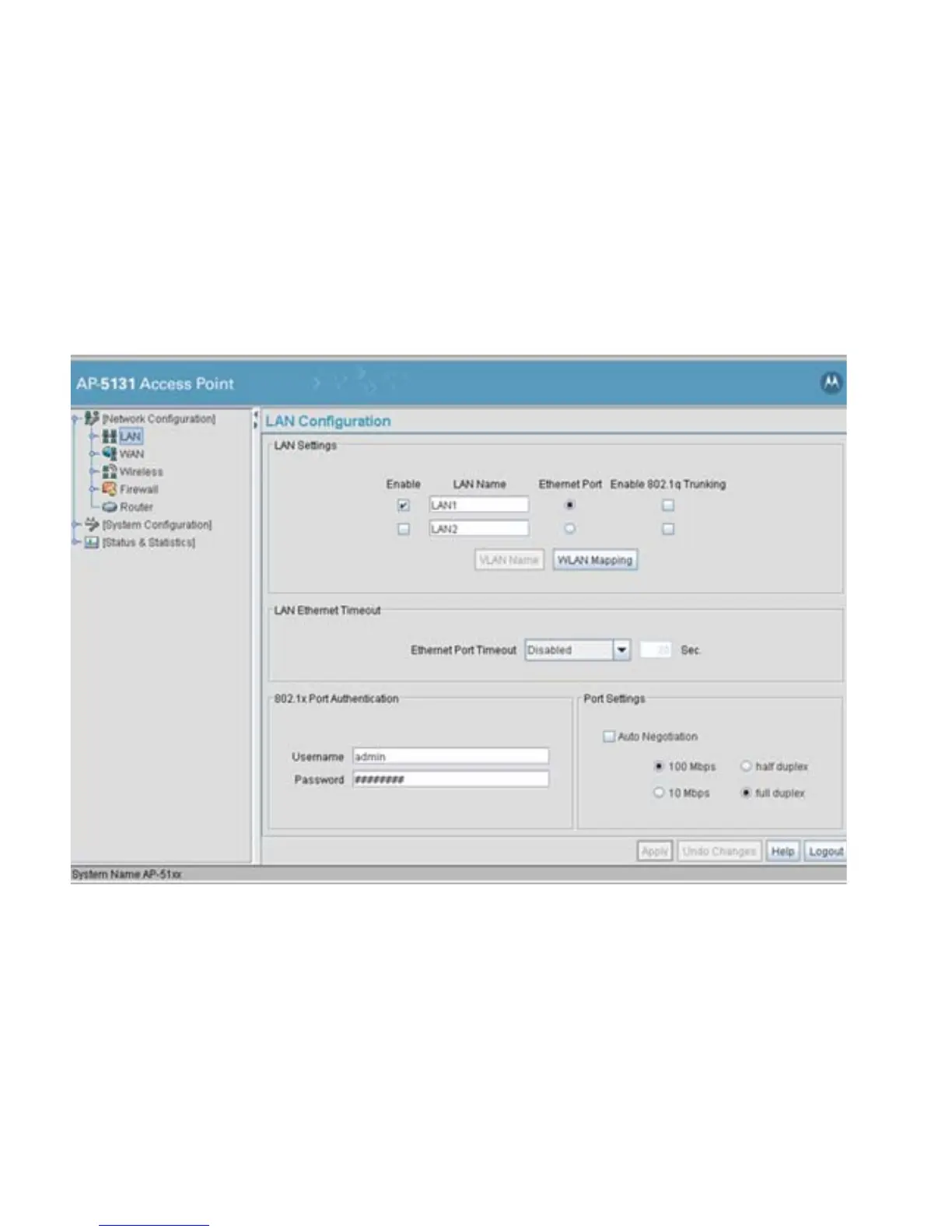

Use the LAN Configuration screen to enable one (or both) of the access point’s LAN interfaces,
assign them names, define which LAN is currently active on the access point Ethernet port and assign
a timeout value to disable the LAN connection if no data traffic is detected within a defined interval.
To configure the access point LAN interface:
1. Select Network Configuration -> LAN from the access point menu tree.
2. Configure the LAN Settings field to enable the access point LAN1 and/or LAN2 interface,
assign a timeout value, enable 802.1q trunking, configure WLAN mapping and enable
802.1x port authentication.
Enable Select the LAN1 and/or LAN2 checkbox to allow the forwarding of
data traffic over the specified LAN connection. The LAN1
connection is enabled by default, but both LAN interfaces can be
enabled simultaneously. The LAN2 setting is disabled by default.
