AP-51xx Access Point Product Reference Guide
5-6
1. Select Network Configuration -> LAN from the access point menu tree.
2. Ensure the Enable 802.1q Trunking button is selected from within the LAN Setting field.
Trunk links are required to pass VLAN information between destinations. A trunk port is by
default a member of all the VLANs existing on the access point and carry traffic for all those
VLANs. Trunking is a function that must be enabled on both sides of a link.
3. Select the VLAN Name button.

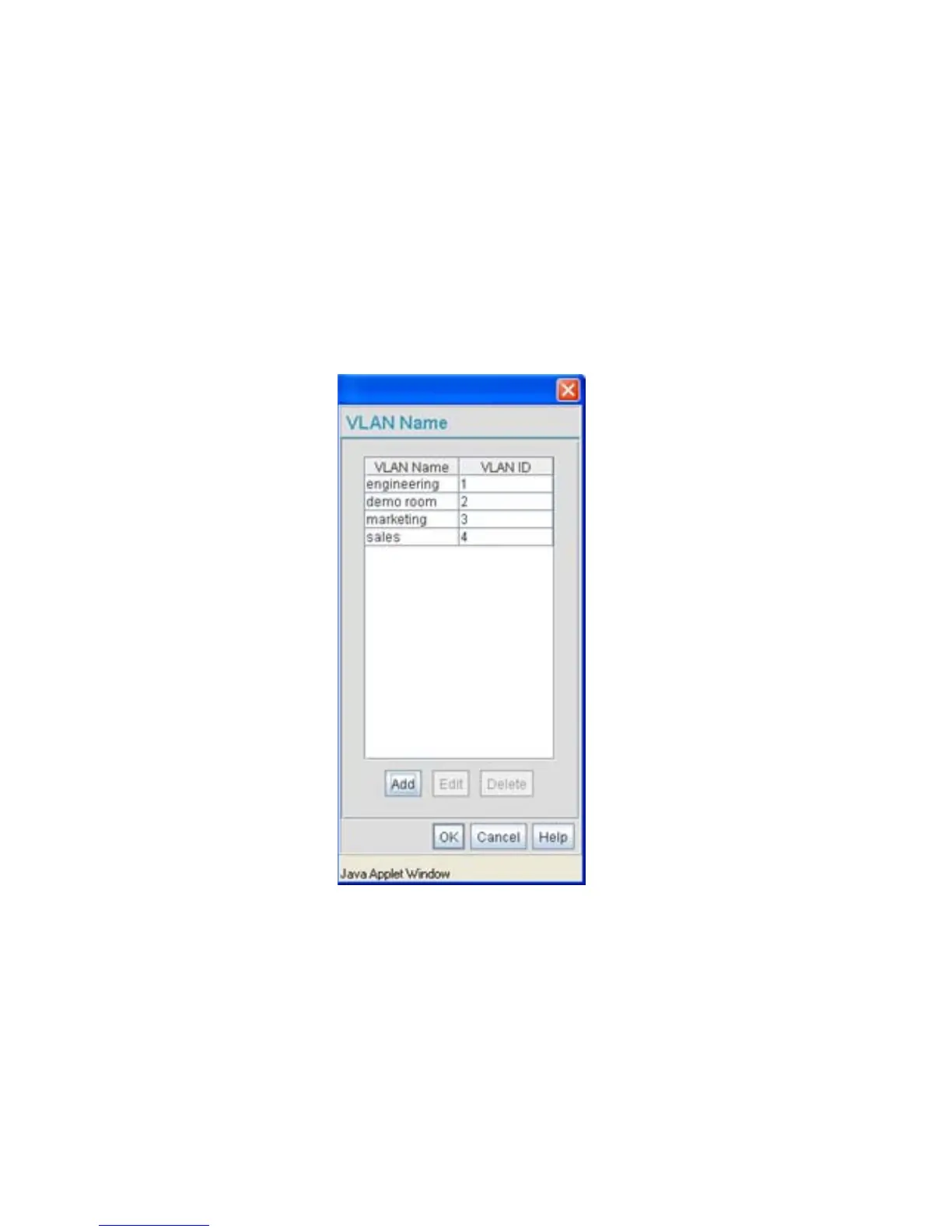

The VLAN name screen displays. The first time the screen is launched a default VLAN name
of 1 and a default VLAN ID of 1 display. The VLAN name is auto-generated once the user
assigns a VLAN ID. However, the user has the option of re-assigning a name to the VLAN
using New VLAN and Edit VLAN screens.
To create a new VLAN, click the Add button, to edit the properties of an existing VLAN, click
the Edit button.
