Monitoring Statistics
7-3

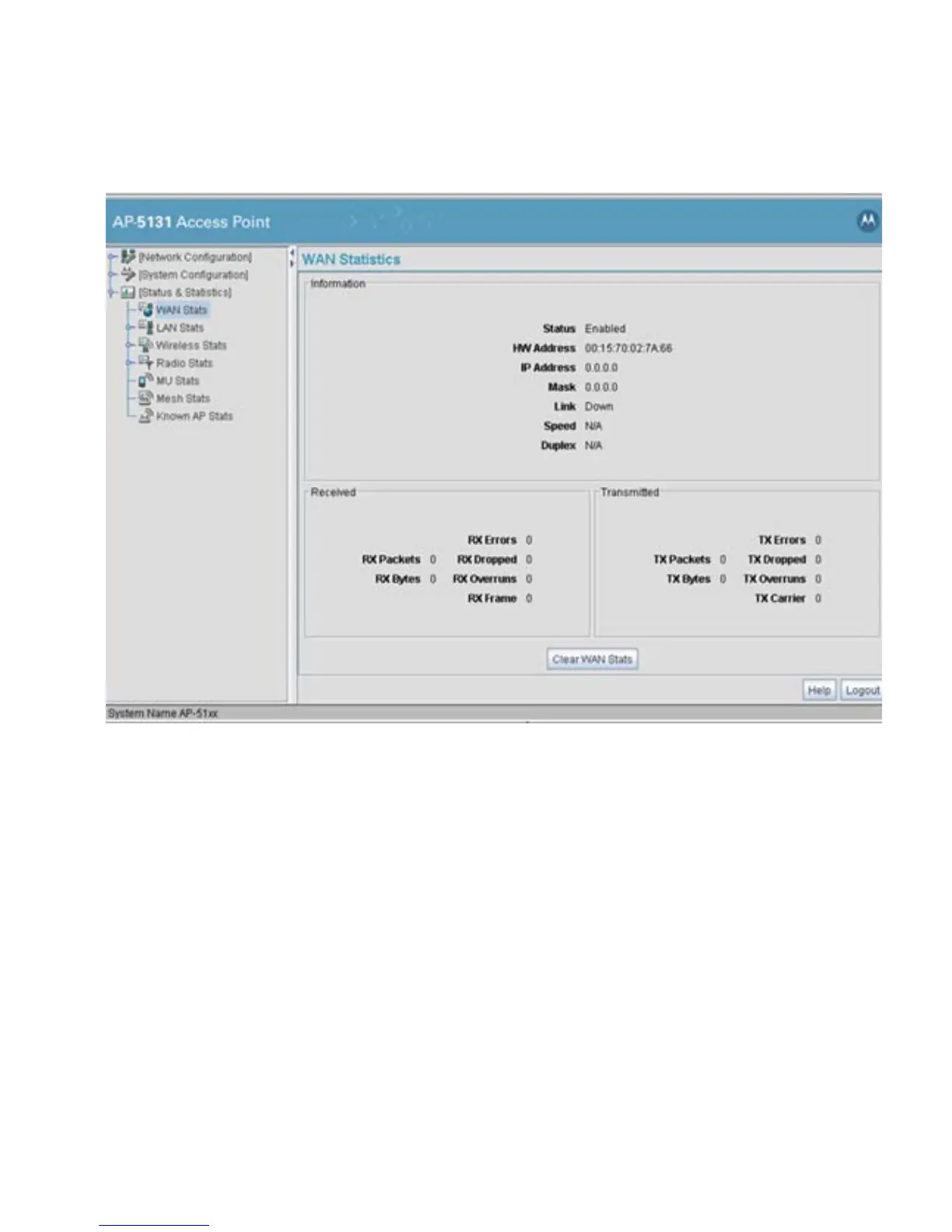

2. Refer to the Information field to reference the following access point WAN data:
Status The Status field displays Enabled if the WAN interface is enabled
on the WAN screen. If the WAN interface is disabled on the WAN
screen, the WAN Stats screen displays no connection information
and statistics. To enable the WAN connection, see Configuring
WAN Settings on page 5-16
HW Address The Media Access Control (MAC) address of the access point WAN
port. The WAN port MAC address is hard coded at the factory and
cannot be changed. For more information on how access point
MAC addresses are assigned, see AP-51xx MAC Address
Assignment on page 1-27.
IP Addresses The displayed Internet Protocol (IP) addresses for the access point
WAN port.
