Estimated Charging Time
The following tables provide the estimated charging time of the battery.
Table 5: Estimated Charging Time
Charging Solution Standard Li-Ion Battery
Single Unit Charger 5.5 hours
Multi-Unit Charger 4 hours
Charging Radio with the Drop-in Tray SUC
Procedure:
1 Place the drop-in Tray Single Unit Charger (SUC) on a flat surface.
2 Insert the connector of the power supply into the Micro USB port on the front of the drop-in tray
charger.
3 Connect the correct power supply to a proper AC outlet.
4 Insert the radio with battery installed into the tray, facing down and making sure that the
charging contacts on the charger are aligned with the contacts on the radio.

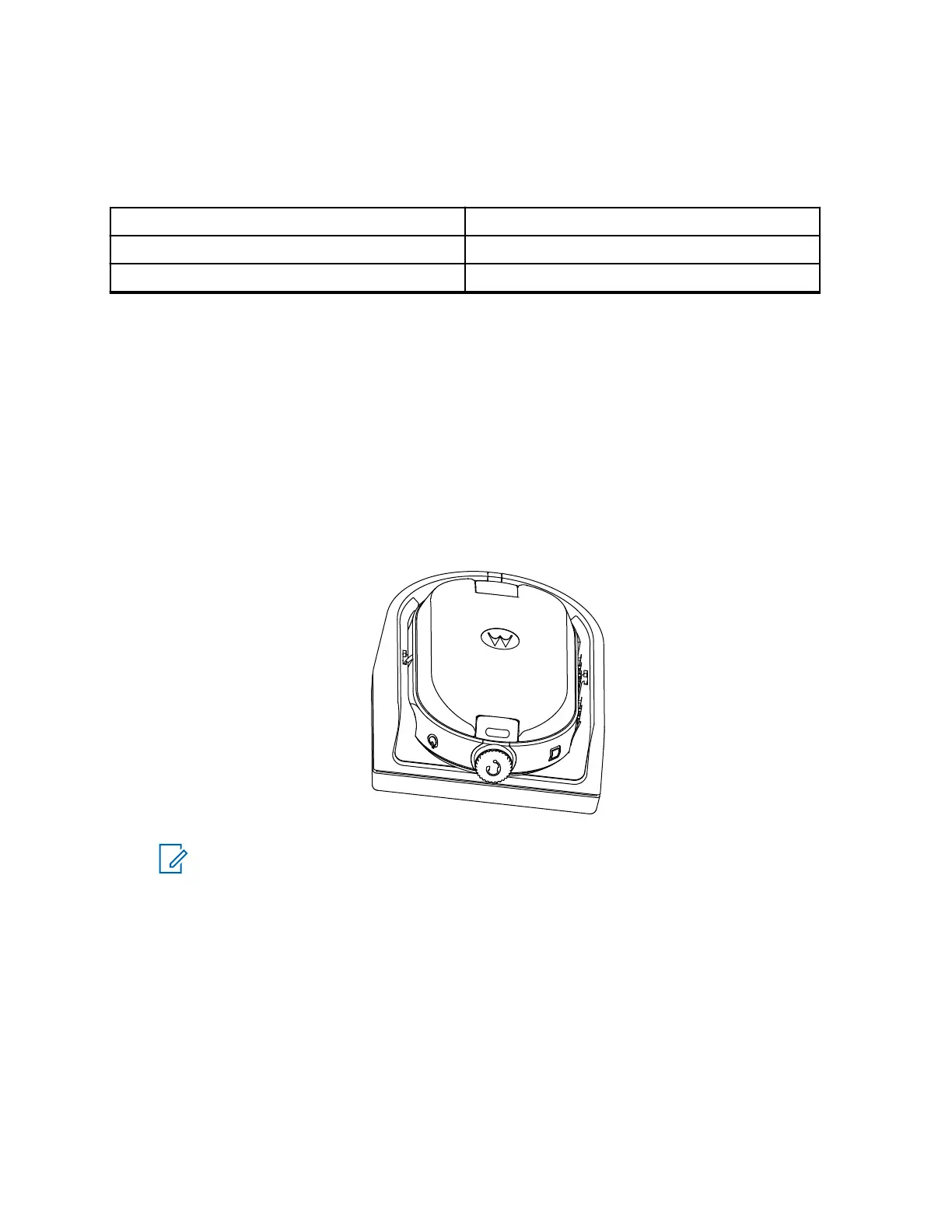

Figure 8: Charging Radio
NOTICE: When charging a battery attached to radio, ensure that the radio is turned off.
You can enable the radio to automatically turn off when radio is inserted into the charger
feature through Customer Programming Software (CPS).
Charging with the Drop-In Tray MUC-Optional Accessory
The Multi-Unit Charger (MUC) allows drop-in charging of up to six radios. Each of the six charging
pockets can hold a radio with a battery installed. The MUC provides pockets for headset storage.
Procedure:
1 Place the charger on a flat surface or mount it on the wall.
2 Insert the power cord plug into the jack on the MUC.
3 Plug the cord into an AC outlet and then into the charger.
4 Turn off the radio.
MN006181A01-AA
Battery and Charger
26
