Single Slot Serial/USB Cradle
This section describes how use the Single Slot Serial/USB Cradle with the mobile computer.

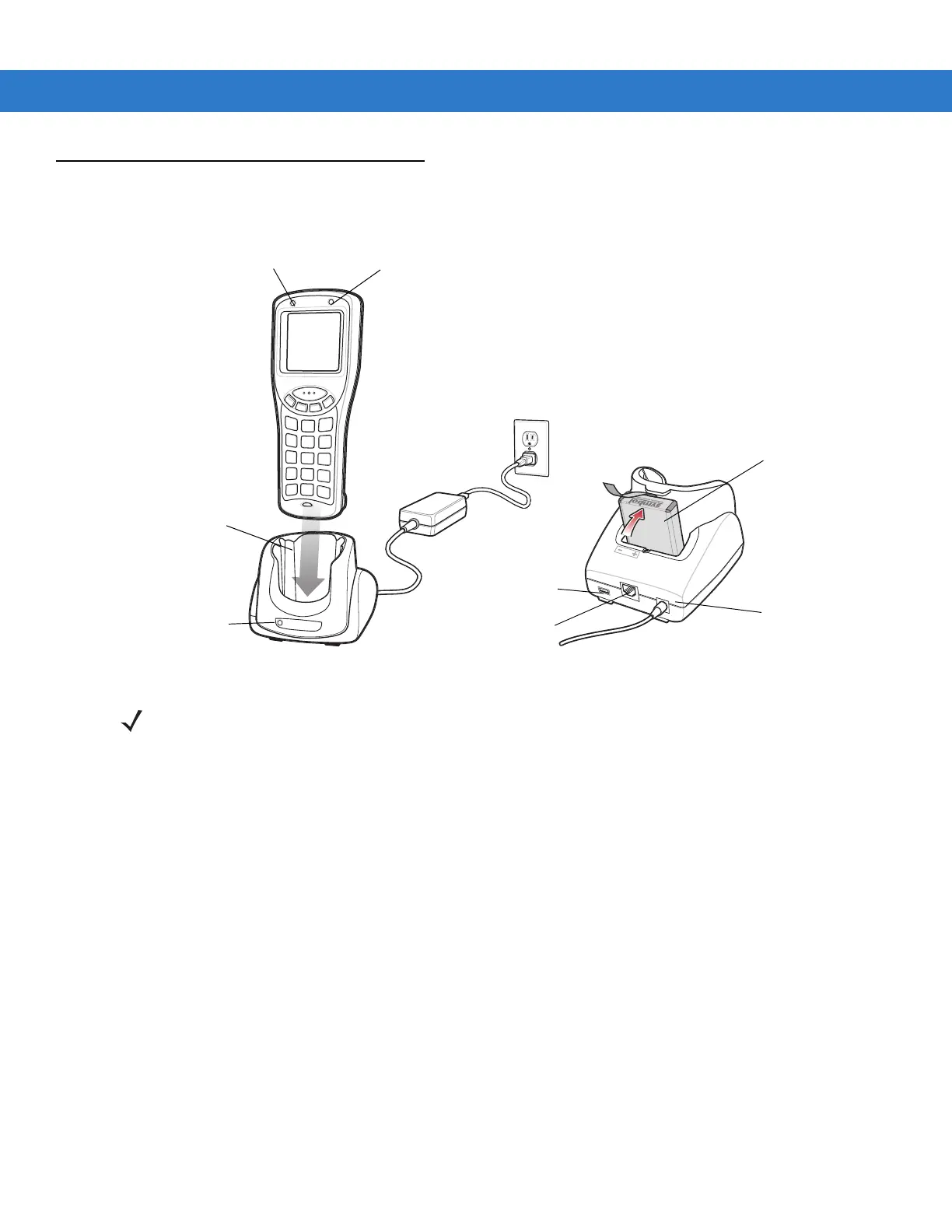

Figure 3-1 Single Slot USB Cradle
The Single Slot Serial/USB cradle:
• Provides 5.4 VDC power for operating the mobile computer.
• Provides a serial port and USB port (mini B receptacle) for data communication between the mobile
computer and a host computer.
• Synchronizes information between the mobile computer and a host computer (with customized or third party
software, it can also synchronize the mobile computer with corporate databases).
• Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer (cradle serial communication cable is available). For communication setup procedures,
refer to the MC1000 Integrator Guide.
• Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer (cradle USB communication cable is available). For communication setup procedures, refer
to the MC1000 Integrator Guide.
• Charges the mobile computer’s Li-ion battery.
Charge LED
Mobile Computer
Slot
Spare
Battery
Spare Battery
Charging LED
Power Port
Serial Port
USB Port
Scan LED
NOTE Use only a Symbol-approved power supply output rated 5.4 VDC and minimum 3 A. The power supply is
certified to EN60950 with SELV outputs. Use of alternative power supply will invalidate any approval given to
this device and may be dangerous.
HINWEIS Benutzen Sie nur eine Symbol Technologies genehmigt in den Ausgabe: 5.4 VDC und minimum 3A. Die
Stromversorgung ist bescheinigt nach EN60950 mit SELV Ausgaben. Bei Verwendung eines anderen
Netzteils werden alle für das Gerät gewährten Genehmigungen außer Kraft gesetzt, und der Betrieb kann
gefährlich sein.
