EOL Instructions
Wireless Card Assembly

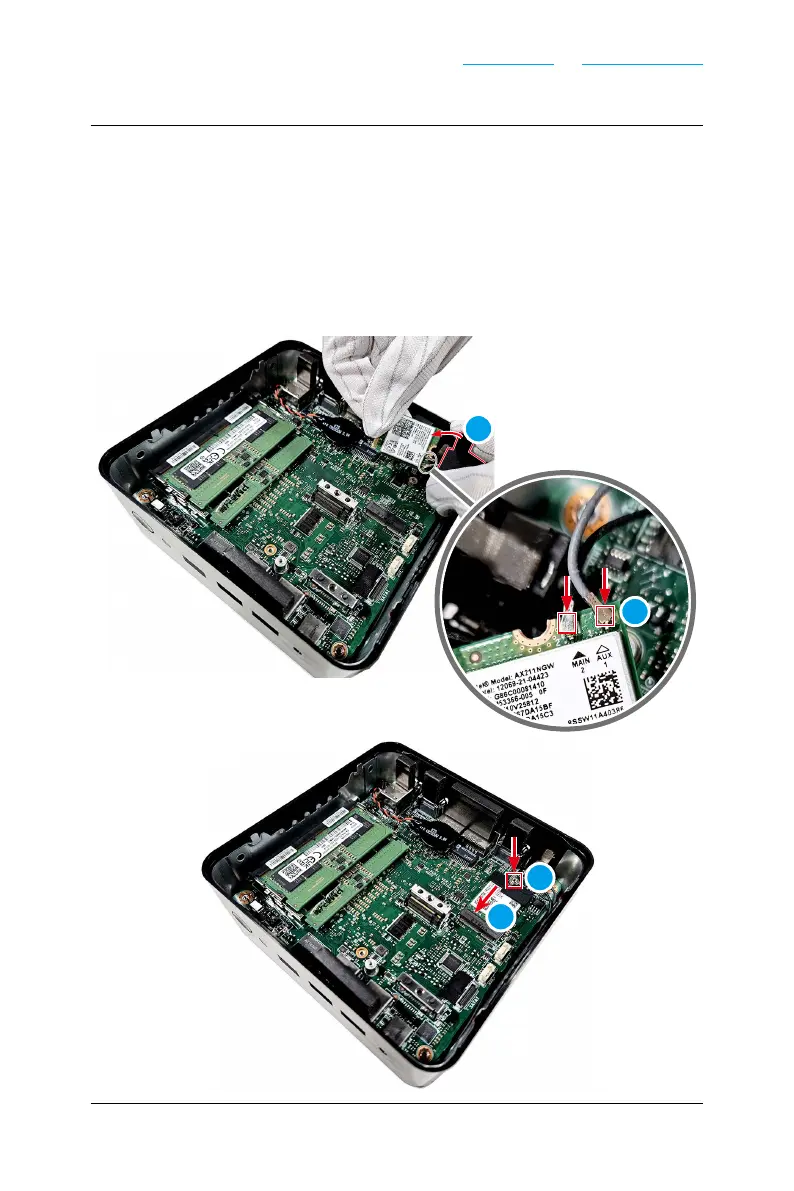

1. Connect the antenna cables ❶ to the wireless card. Make sure the black
antenna cable is connected to MAIN and the gray antenna cable is connected to
AUX.
2. Replace and secure the wireless card clip
❷ onto the wireless card.
3. Align the notch on the wireless card with the key on the slot, and insert the
wireless card
❸ into the slot.
4. Gently push the wireless card downwards and use a cross-head screwdriver to
secure the card with the screw
❹.
1
2
4
3
To Next Page
