MSI Cubi Series Service Guide

31
Components EOL Instructions

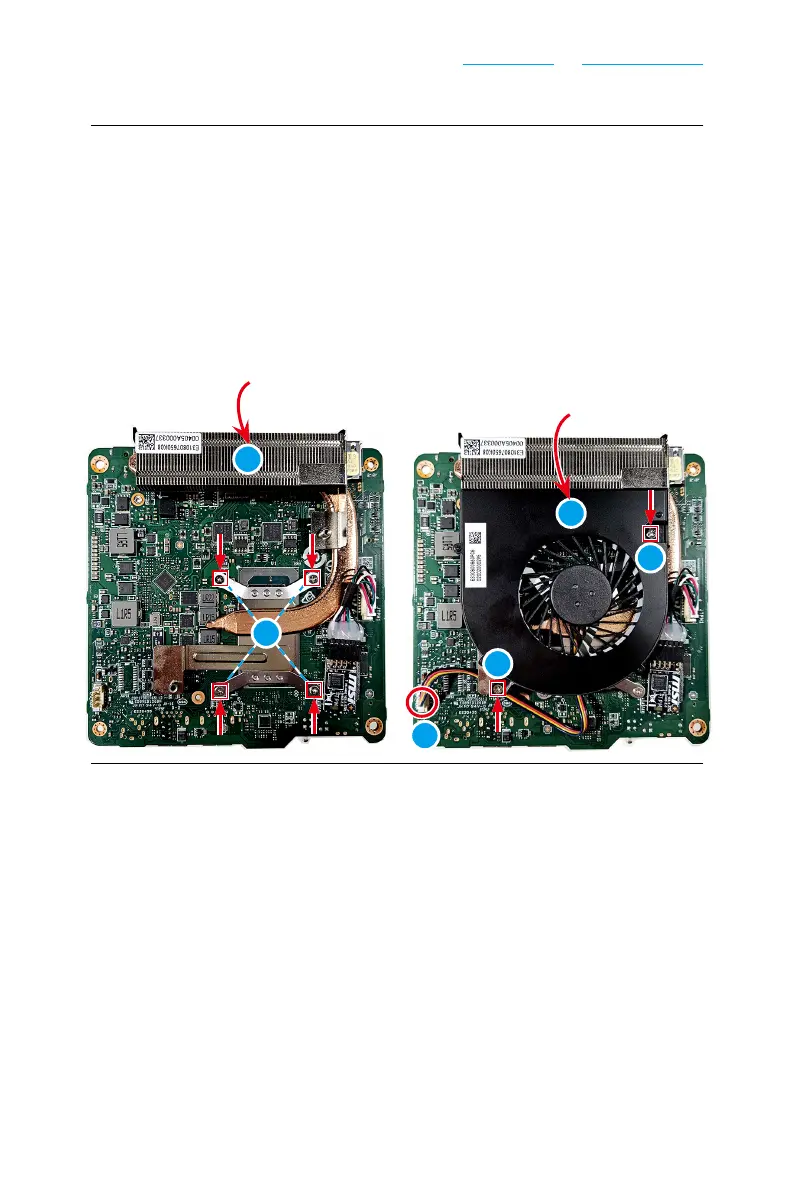

Fan & Heat Sink Assembly
1. Apply proper amount of thermal paste directly onto the center of the CPU.
2. Place the heat sink
❶ atop the CPU with screw holes aligned.
3. Replace and tighten the screws
❷ with a cross-head screwdriver to secure the
heat sink in place.
4. Place the fan
❸ atop the heat sink with screw holes aligned.
5. Replace and tighten the screws
❹ with a cross-head screwdriver to secure the
fan in place.
6. Connect the fan cable
❺ to the mainboard.
