Hardware Setup
2-15

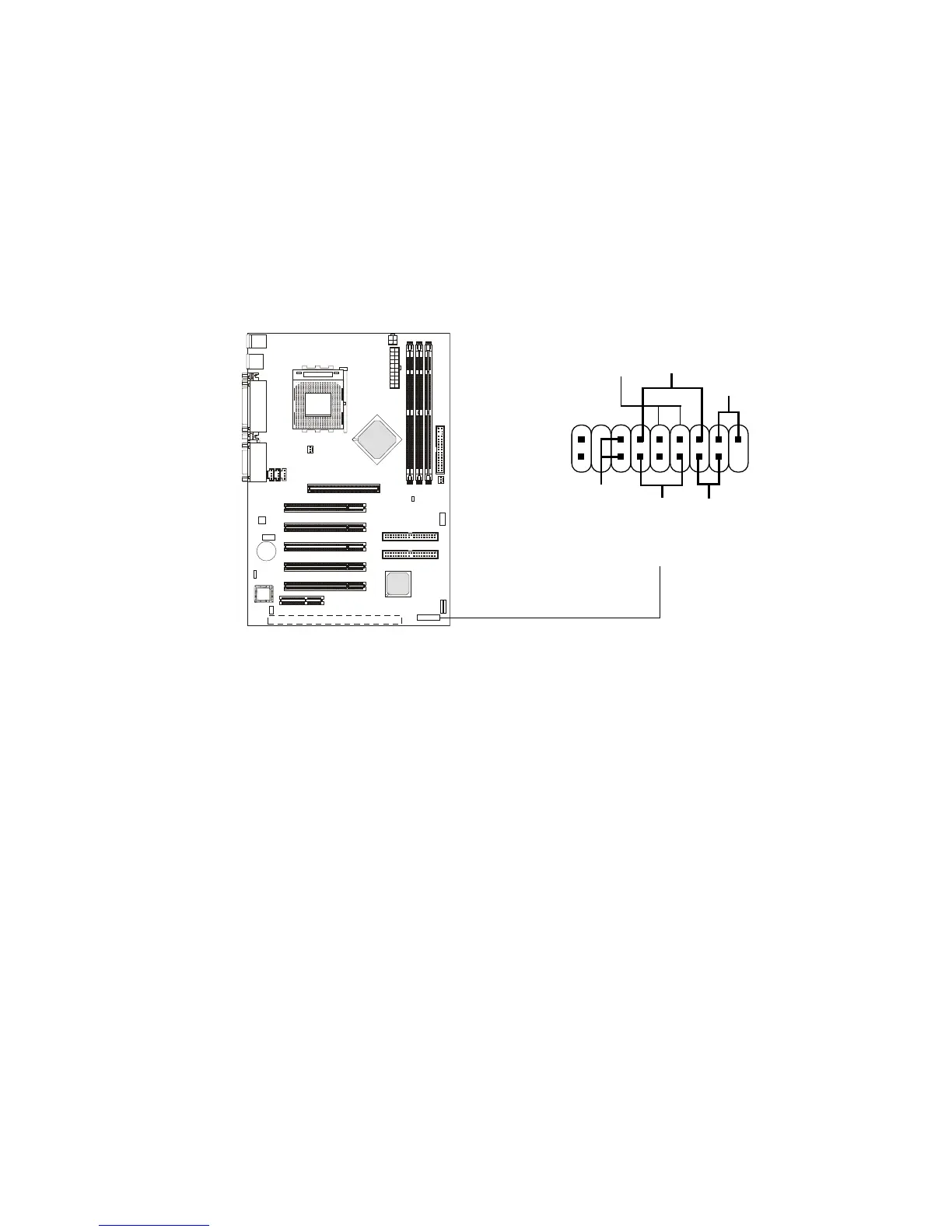

Case Connector: JFP1
The case connector block JFP1 allows you to connect to the Power
Switch, Reset Switch, Speaker, Power LED, and HDD LED on the case.
Power Switch
Connect to a 2-pin push button switch.
Reset Switch
Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the HDD is working. You can connect the
Reset switch from the system case to this pin.
Power LED
The Power LED is lit while the system power is on. Connect the Power LED
from the system case to this pin.
Speaker
Speaker from the system case is connected to this pin.
If on-board Buzzer is available, then:
Short pin 14-15: On-board Buzzer Enabled.
JFP1
Power
Switch
Power LED
+
Reset
Switch
HDD
LED
+
Speaker
Buzzer
(short pin)
14
15
