Chapter 2
2-18

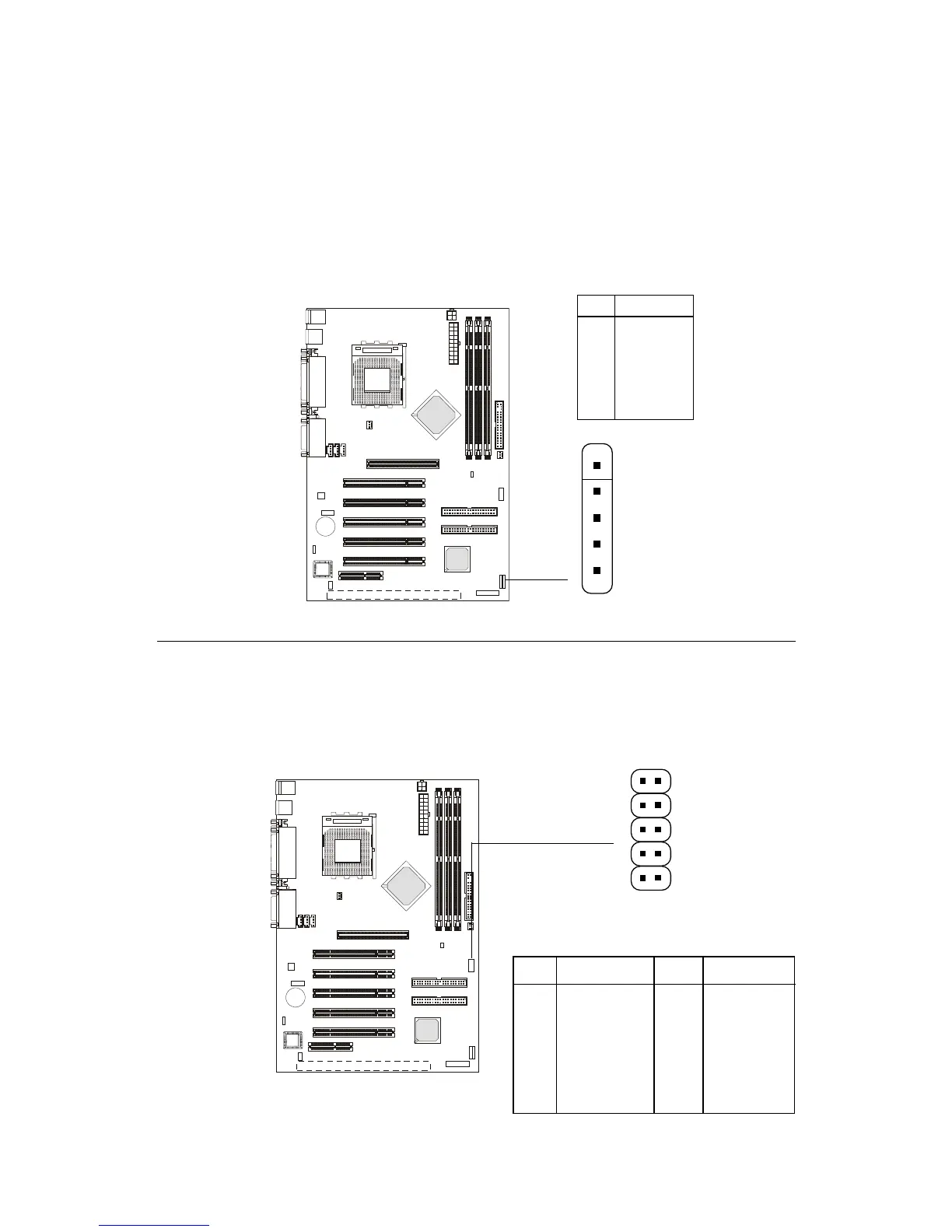

IrDA Infrared Module Connector: J2
This connector allows you to connect to an IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.
J2
1
1 VCC
2NC
3 IRRX
4 GND
5 IRTX
Pin Signal
USB Front Panel Connector: USB2
The mainboard provides one Front USB (Universal Serial Bus) pin head-
ers that allow you to connect optional USB ports for front panel.
Pin Description Pin Description
1 VCC 2 GND
3 USB3- 4 GND
5 USB3+ 6 USB2+
7 GND 8 USB2-
9 GND 10 VCC
USB2 Pin Definition
10
2
9
1
USB2
