Hardware Setup
2-19

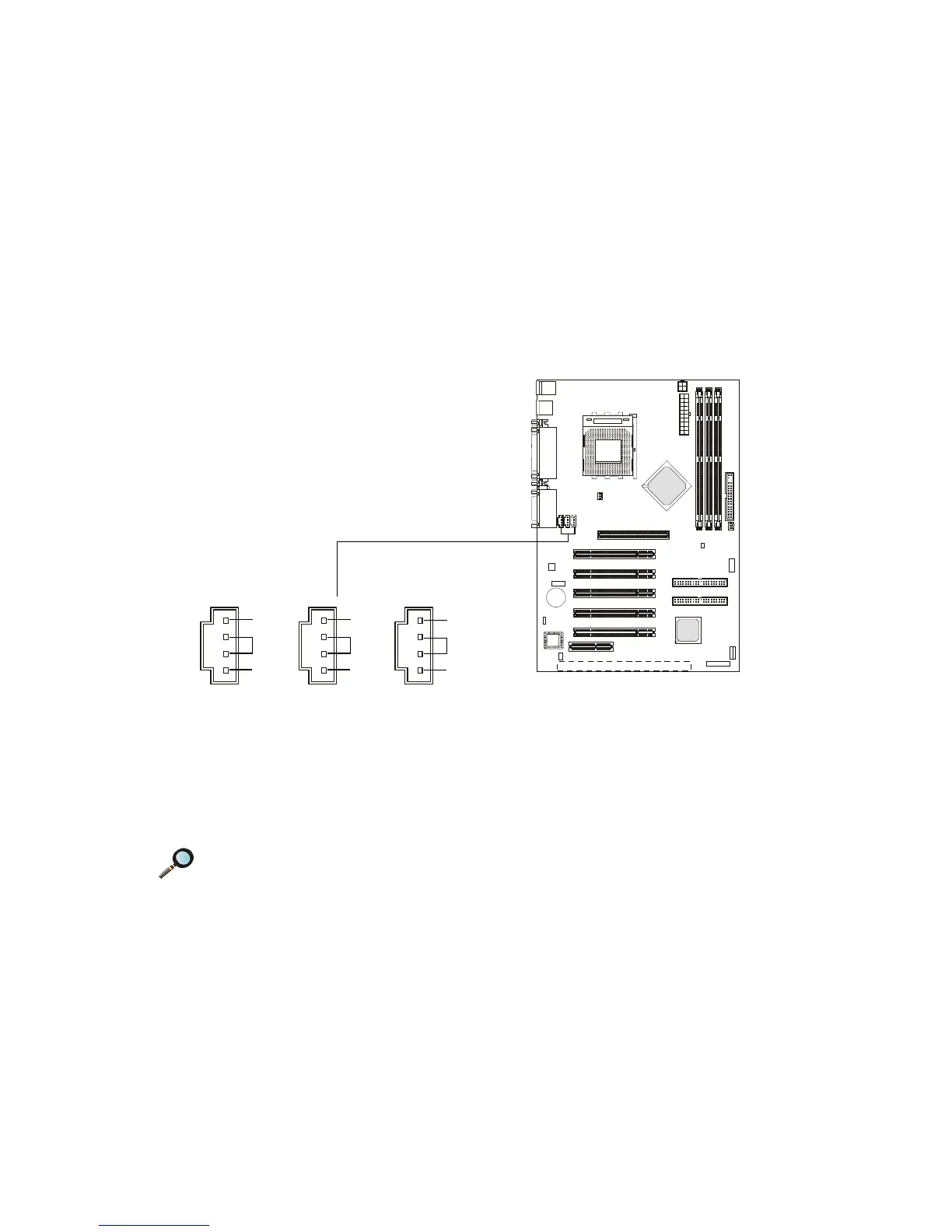

CD-In/Aux Line-In/Modem-In Connector: JCD1/JAUX1/
J_PHN1
JCD1 connector is for CD-ROM audio connector.
JAUX1 connector is for DVD add-on card with Line-in connector.
J_PHN1 connector is for modem with internal audio connector.
JCD1
JAUX1
Note:
Mono_Out is connected to the Modem speaker-out connector.
Phone_In is connected to the Modem Microphone-In connector.
GND
L
R
GND
L
R
J_PHN1
GND
Phone_In
Mono_Out
1
1
1
