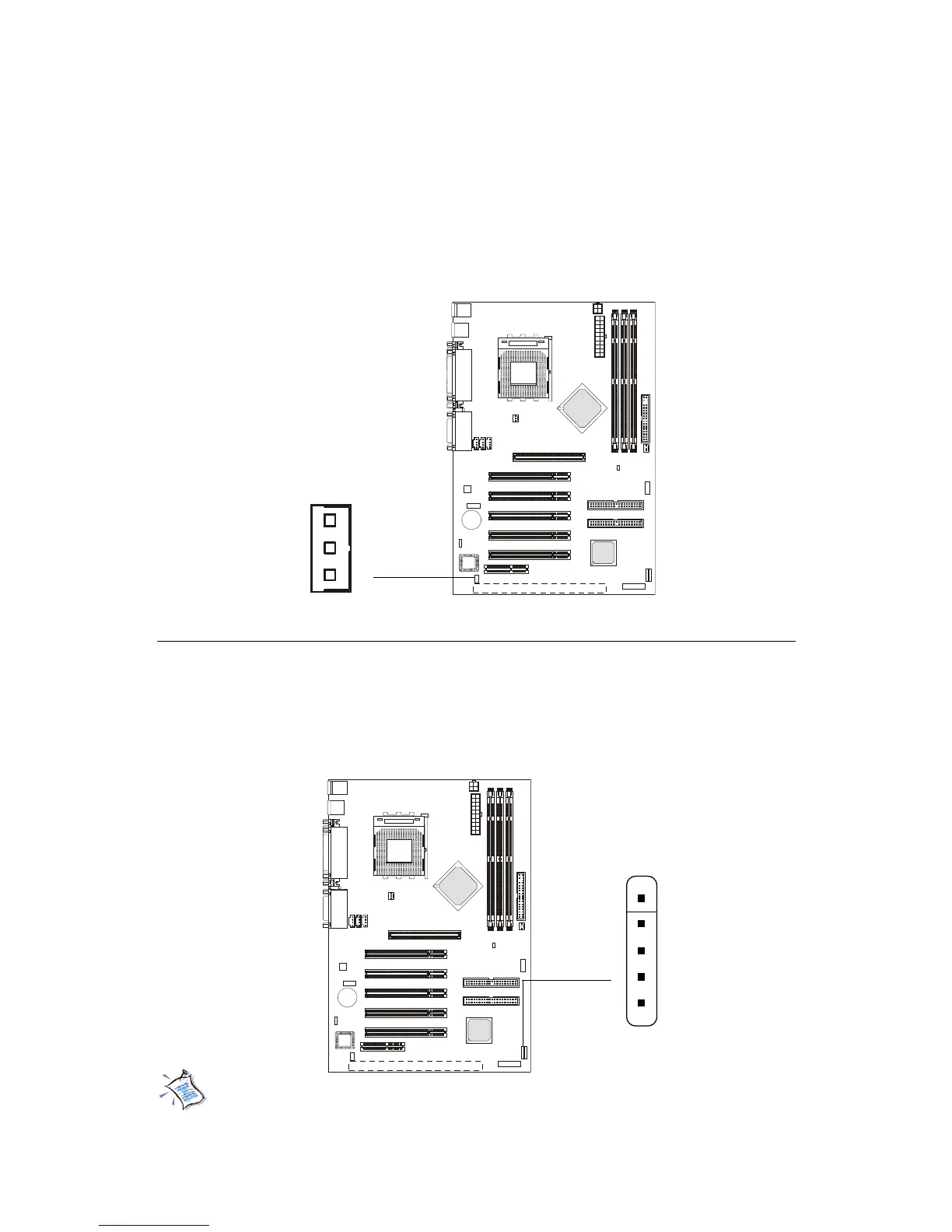

JMDM1
Wake On Ring Connector: JMDM1
This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is
received through the modem card.
Note: Modem wake-up signal is active “low”.
Wake On LAN Connector: JWOL1
This connector allows you to connect to a LAN card with Wake On
LAN function. You can wake up the computer via remote control through a
local area network.
JWOL1
5VSB
GND
MP_WAKEUP
1
NC
MDM_WAKEUP
NC
5VSB
1
GND
