2-13
Hardware Setup

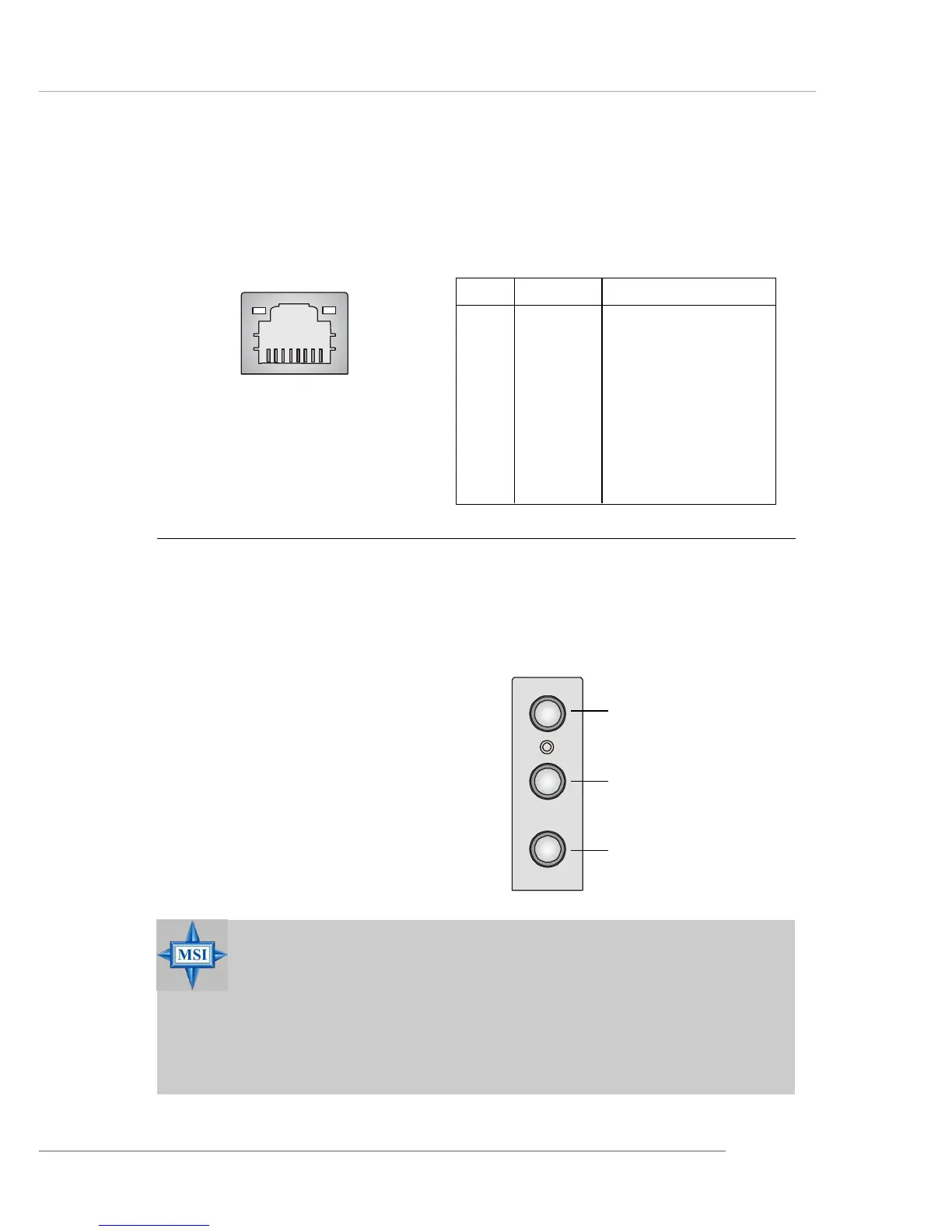

RJ-45 LAN Jack (Optional)
The mainboard provides one standard RJ-45 jack for connection to Lo-
cal Area Network (LAN). You can connect a network cable to the LAN jack.
Pin Definition
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
RJ-45 LAN Jack
Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used
for external CD player, Tape player, or other audio devices. Mic is a connec-
tor for microphones.
1/8” Stereo Audio Connectors
Line Out
Line In
MIC
MSI Reminds You...
For advanced audio application, Realtek ALC 650 is provided
to offer support for 6-channel audio operation and can turn
rear audio connectors from 2-channel to 4-/6-channel audio.
For more information on 6-channel audio operation, please
refer to Appendix. Using 4- or 6-Channel Audio Function.
To Next Page
