2-20
MS-6738 Micro ATX Mainboard

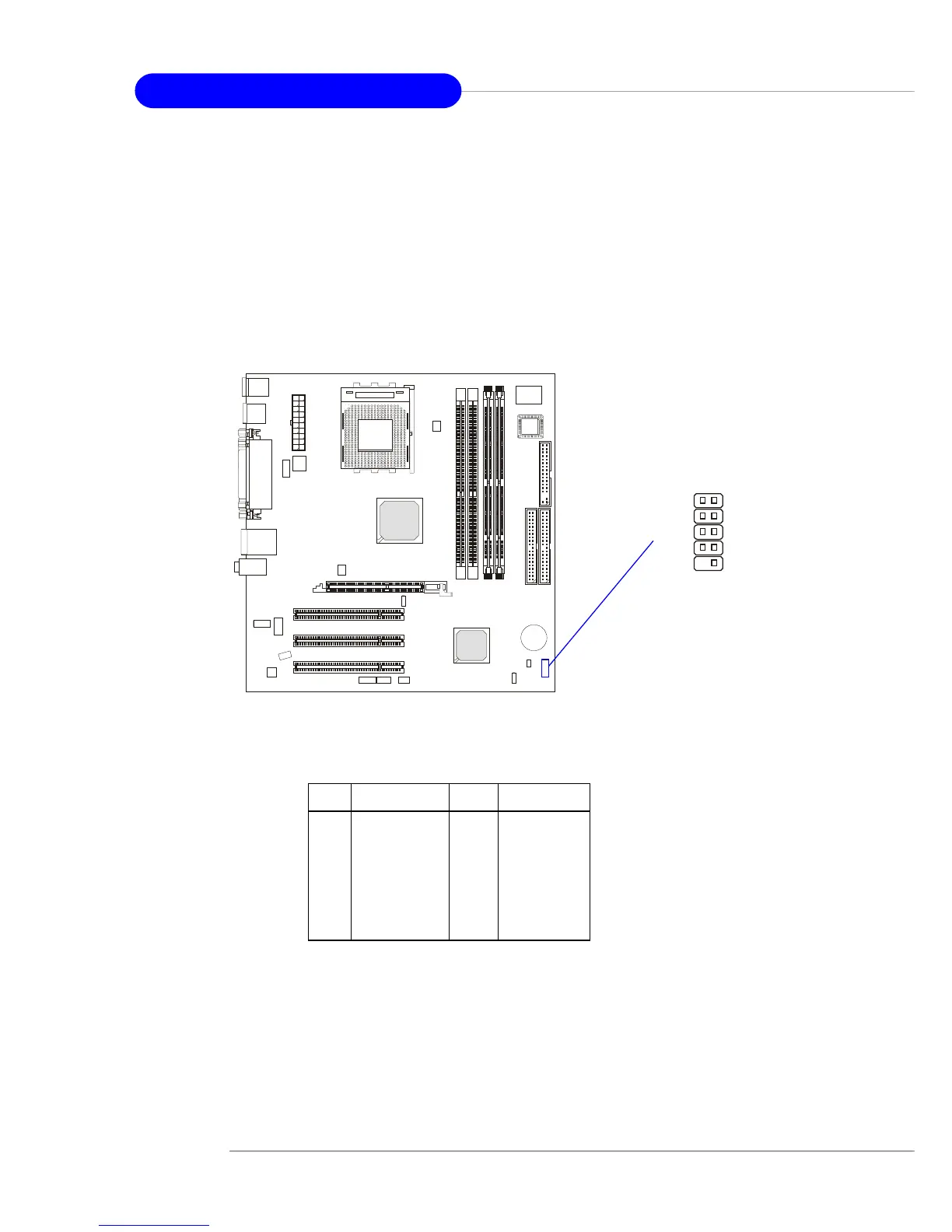

Front USB Connectors: JUSB1
The mainboard provides one USB 2.0 pin header JUSB1 that is compliant
with Intel
®
I/O Connectivity Design Guide. USB 2.0 technology increases
data transfer rate up to a maximum throughput of 480Mbps, which is 40
times faster than USB 1.1, and is ideal for connecting high-speed USB inter-
face peripherals such as USB HDD, digital cameras, MP3 players, printers,
modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 USBOC
JUSB1 Pin Definition
JUSB1
(USB 2.0/Intel spec)
1
9
2
10
