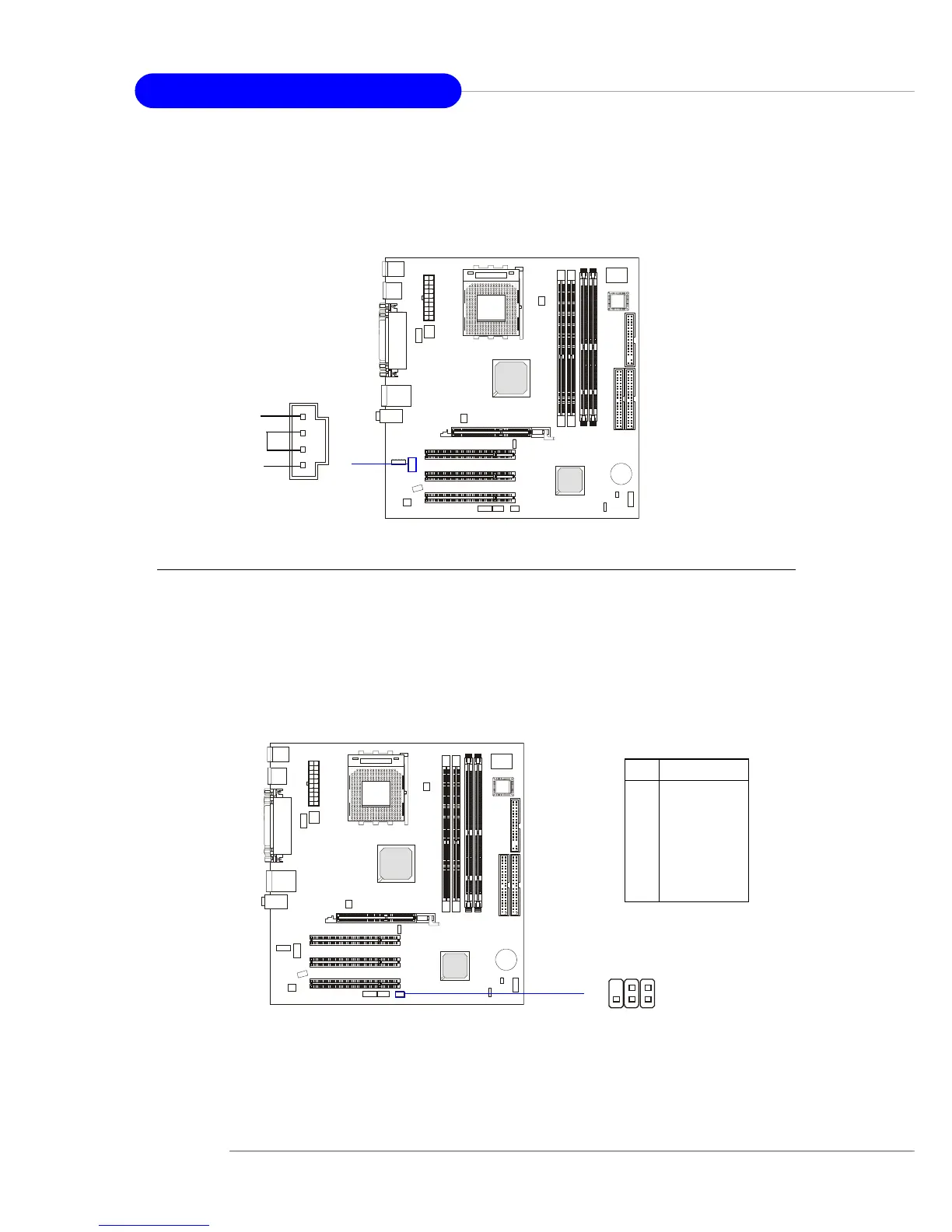

2-22
MS-6738 Micro ATX Mainboard
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
JCD1
GND
L
R
IrDA Infrared Module Header: JIR1
The connector allows you to connect to IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.
JIR1 is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
JIR1
Pin
Signal
1N
C
2N
C
3
VCC5
4
GND
5
IRTX
6
IRRX
JIR1 Pin Definition
6
5
2
1
36
38
Table of Contents
Default Chapter
2
FCC-B Radio Frequency Interference Statement
2
Copyright Notice
3
Revision History
3
Safety Instructions
4
Table of Contents
5
Chapter 1. Getting Started
8
Mainboard Specifications
9
Mainboard Layout
11
MSI Special Features
12
PC Alert™ 4
12
Live Bios™/Live Driver
14
Live Monitor
15
Chapter 2. Hardware Setup
16
Quick Components Guide
17
Central Processing Unit: CPU
18
CPU Core Speed Derivation Procedure
18
CPU Installation Procedures for Socket 462
19
Installing AMD Athlon CPU (Socket 462) Cooler Set
20
Memory
21
DDR Module Combination
22
Installing DDR Modules
22
SDR Module Combination
23
Installing SDR Modules
23
Power Supply
24
ATX 20-Pin Power Connector: CONN1
24
ATX 12V Power Connector: JPW1
24
Back Panel
25
Mouse Connector
25
Keyboard Connector
26
Serial Port Connectors: COM a & JCOM2 (Optional)
27
VGA Connector
27
LAN Jack (Optional)
28
Audio Port Connectors
28
Parallel Port Connector: LPT1
29
Connectors
30
Floppy Disk Drive Connector: FDD1
30
Chassis Intrusion Switch Connector: JCI1
30
Hard Disk Connectors: IDE1 & IDE2
31
Fan Power Connectors: CPUFA1/SYSFA1
32
Front Panel Connectors: JFP1 & JFP2
33
Front Panel Audio Connector: JAUD1
34
Front USB Connectors: JUSB1
35
SPDIF Connector: JSP1
36
CD-In Connector: JCD1
37
Irda Infrared Module Header: JIR1
37
Jumpers
38
Clear CMOS Jumper: JBAT1
38
FSB Mode Jumper: SW1
39
Slots
40
AGP (Accelerated Graphics Port) Slot (Optional)
40
PCI Interrupt Request Routing
41
Chapter 3. BIOS Setup
42
Entering Setup
43
Control Keys
43
Getting Help
44
The Main Menu
45
Standard CMOS Features
47
Advanced BIOS Features
49
Advanced Chipset Features
53
Integrated Peripherals
57
Power Management Setup
62
PNP/PCI Configurations
66
PC Health Status
68
Frequency/Voltage Control
69
Load Fail-Safe/Optimized Defaults
70
Set Supervisor/User Password
71
Appendix: Using 4- or 6-Channel Audio Function
72
Using 4- or 6-Channel Audio Function
73
Installing the Audio Driver
73
Using 4- or 6-Channel Audio Function
74
Testing the Connected Speakers
77
Testing each Speaker
77
Playing Karaok
79
Troubleshooting
80
Glossary
84
