2-21
Hardware Setup
JSP1
1
3
1
VCC
2
SPDIF
3N
C
JSP1 Pin Definition
PIN
SIGNAL
Connected to JSP1
SPDIF Bracket

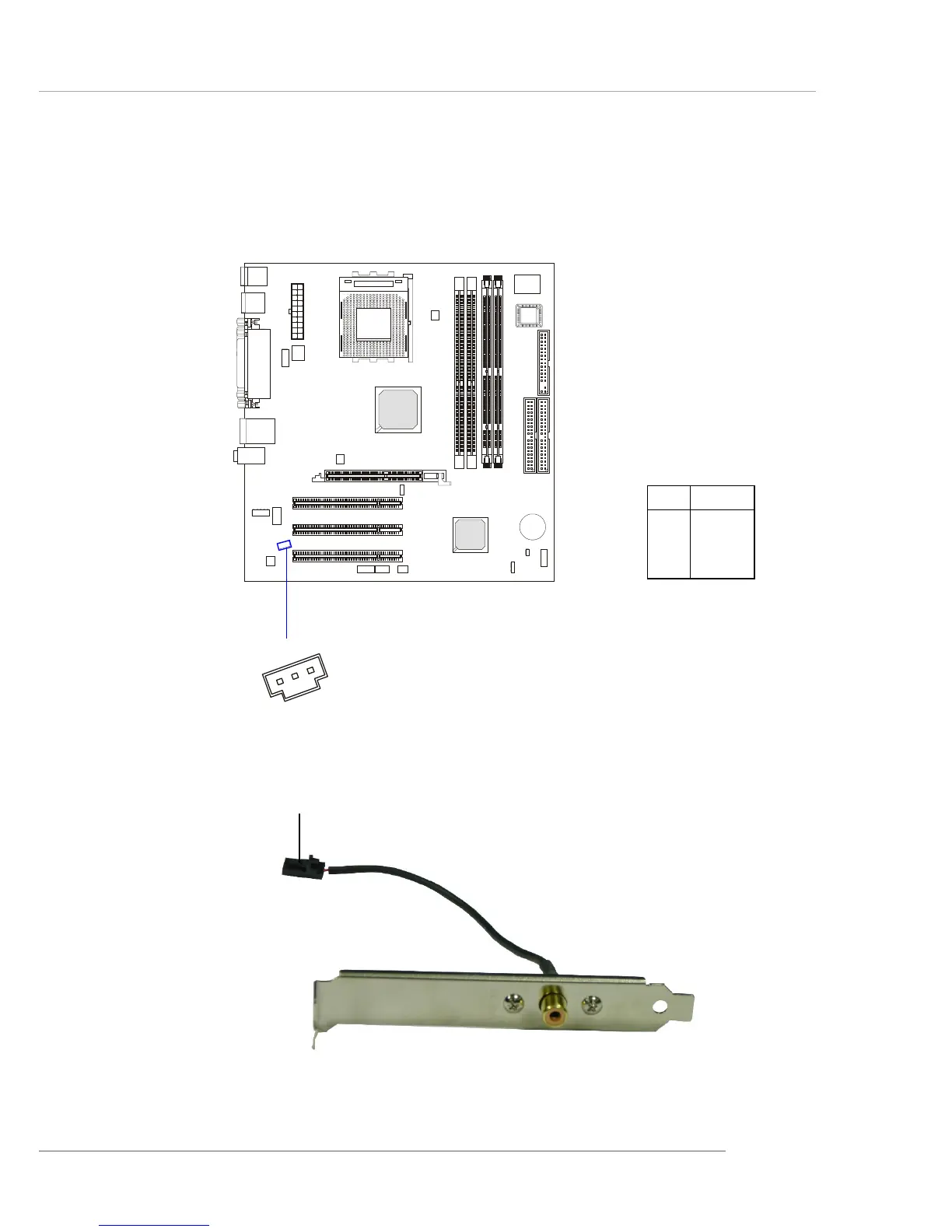

SPDIF Connector: JSP1
The connector is used to connect SPDIF (Sony & Philips Digital Inter-
connect Format) interface for digital audio transmission.
The JSP1 supports SPDIF output only
and can be connected to an external SPDIF
Bracket for digital audio transmission.
35
37
