Chapter 2
2-6
You can install one or more DIMM modules in the following
combination:
DIMM Modules Combination
DIMM Socket Memory Module Total Memory
Socket 1
(Bank 0 & Bank 1)
32MB, 64MB, 128MB,
256MB, 512MB
32MB ~ 512MB
Socket 2
(Bank 2 & Bank 3)
32MB, 64MB, 128MB,
256MB, 512MB
32MB ~ 512MB
Total System Memory 32MB ~ 1GB

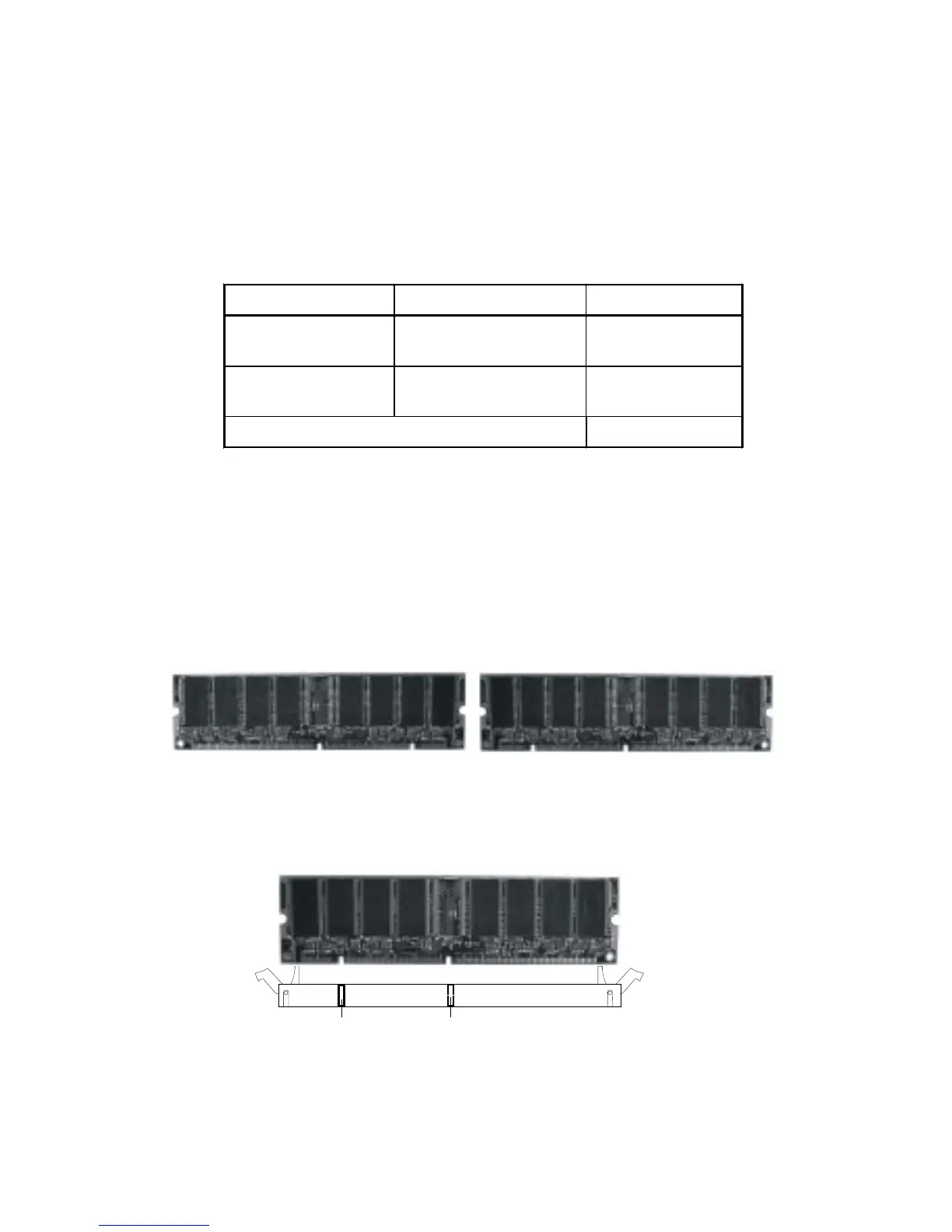

1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the DIMM
memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in.
3. The plastic clip at each side of the DIMM slot will automatically
close.
VOLTDRAM
Front View Rear View
Installing DIMM Modules
