MSI MS-6378 ATX User Manual

Hardware Setup
2-21

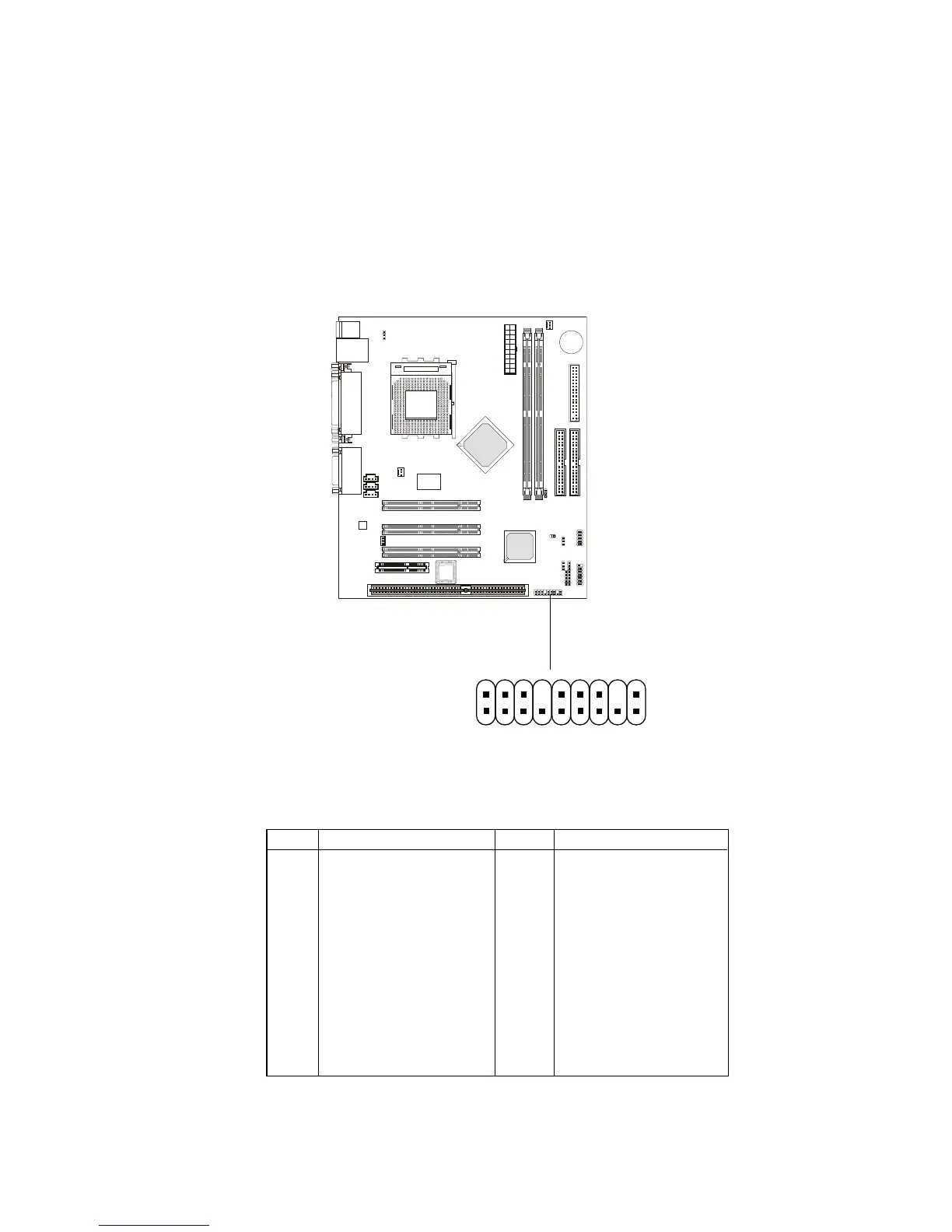

Front Panel Audio Connector: JAUD1
You can connect an optional audio connector to the Front Panel Audio
Header.
JAUD1
18
9
10
1
1 Active Line Out (R) 10 Active Line Out (L)
2 GND (ALO) 11 GND (ALO)
3 GND (+12) 12 GND (+12)
4 +12V (1A) 13 NC
5 MIC 14 GND (MIC)
6 Front Line Out (R) 15 Line Next (R)
7 Front Line Out (L) 16 Line Next (L)
8 GND (FLO) 17 NC
9 Line In (R) 18 Line In (L)
PIN PINDescription Description
