Hardware Setup
2-15

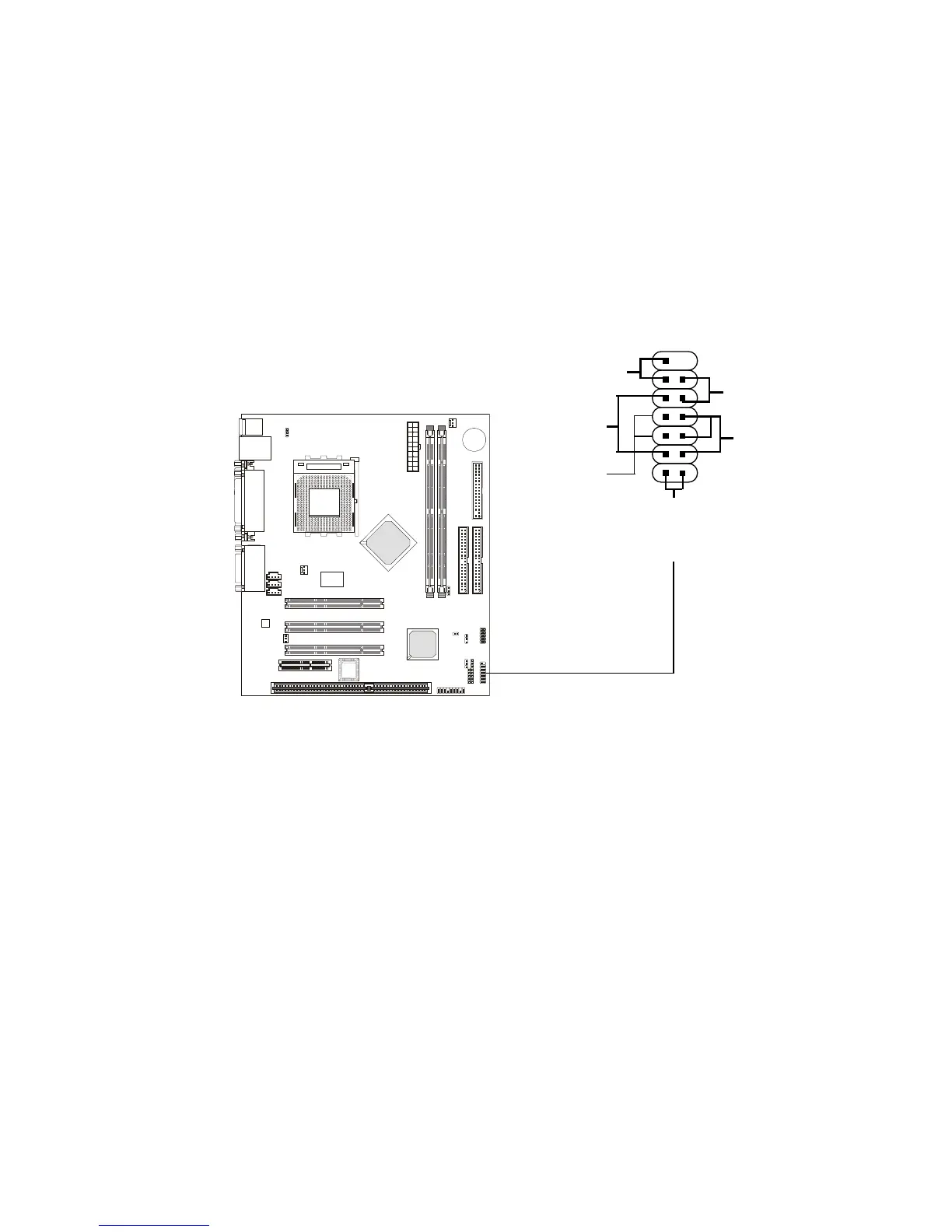

Case Connector: JFP1
The case connector block JFP1 allows you to connect to the Power
Switch, Reset Switch, Speaker, Power LED, and HDD LED on the case.
JFP1
Power
Switch
Power
LED
+
Reset
Switch
HDD LED
+
Speaker
Buzzer
(short pin)
14
15
Power Switch
Connect to a 2-pin push button switch. Pressing this button can turn the
system power on or off.
Reset Switch
Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the HDD is working. You can connect the
Reset switch from the system case to this pin.
