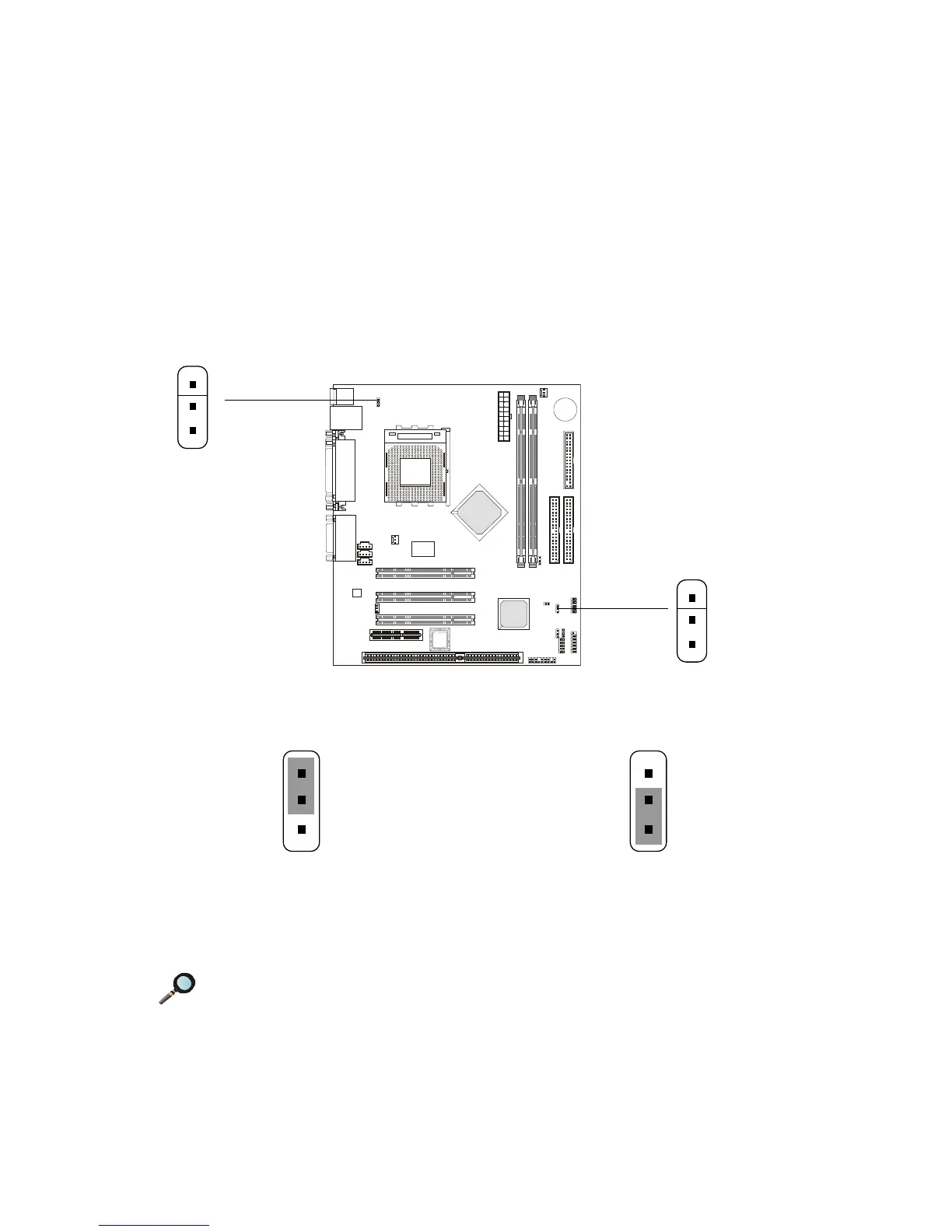

USB Keyboard Wake-up Jumpers: JBV1 & JBV2
The JBV1/JBV2 jumpers are used to set USB keyboard wake-up function.
(Please note JBV1 is for USB rear ports and JBV2 is for USB front pin header:
USB1) To use the function, you should also go to BIOS to enable the USB
keyboard wake-up (power on) function.
Note: To be able to use this function, you need a power supply that
provides enough power for this feature. (Power supply with 750mA
5V Stand-by)
VCC 5V
Disable Keyboard Power On Function
JBV2
1
JBV1
1
5V Standby
Enable Keyboard Power On Function
1
3
1
3
