Hardware Setup
2-13

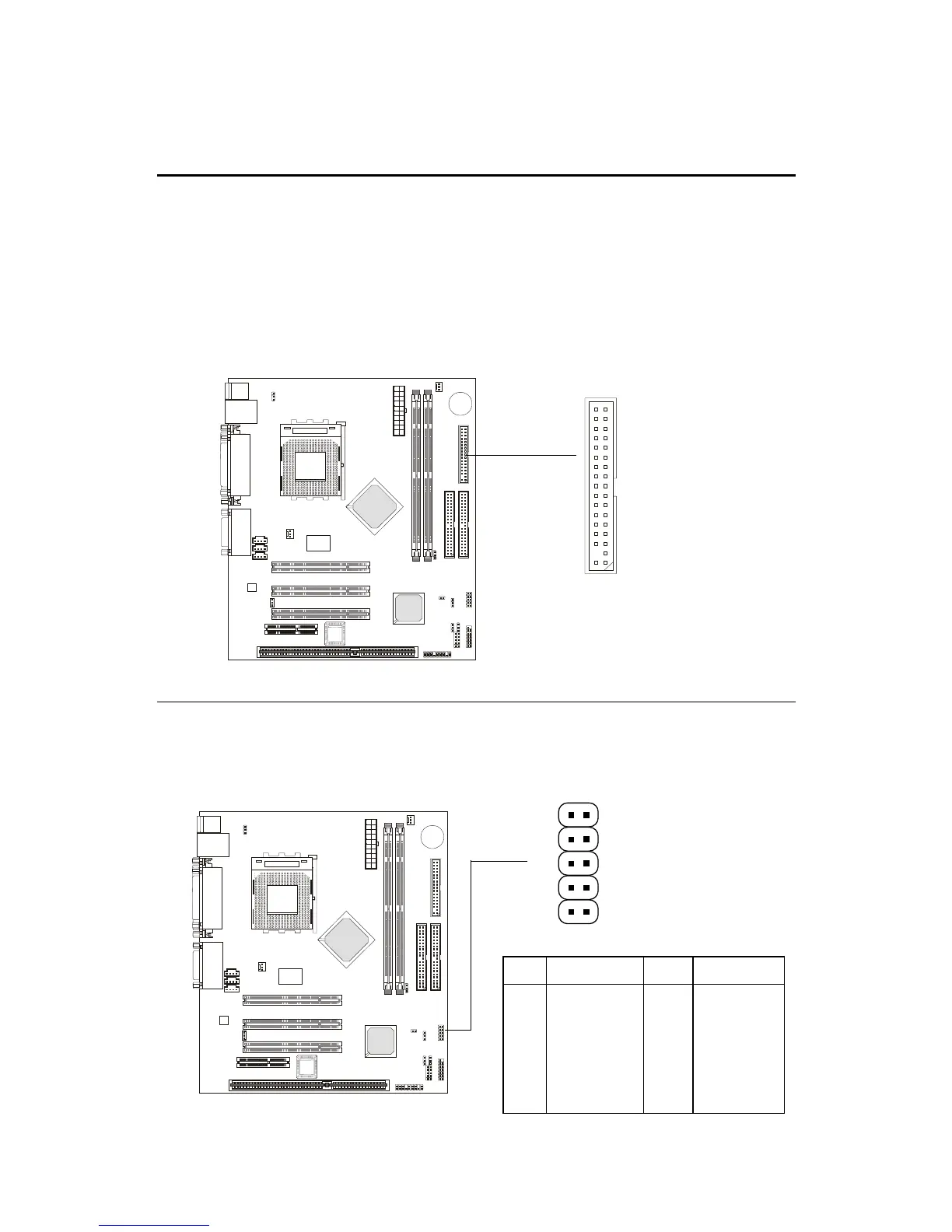

USB Front Panel Connector: USB1
The mainboard provides one Front USB (Universal Serial Bus) pin
header that allows you to connect two optional USB ports for Front Panel.
FDD1
1
2
3334
The mainboard provides connectors to connect to FDD, IDE HDD, IDE
RAID HDD, case, modem, LAN, USB Ports, IR module and CPU/System FAN.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
1
9
USB1
2
10
Connectors
Pin Description Pin Description
1 VCC/5VSB 2 GND
3 USBD0- 4 GND
5 USBD0+ 6 USBD1+
7 GND 8 USBD1-
9 GND 10 VCC/5VSB
Pin Definition
