Hardware Setup
2-17

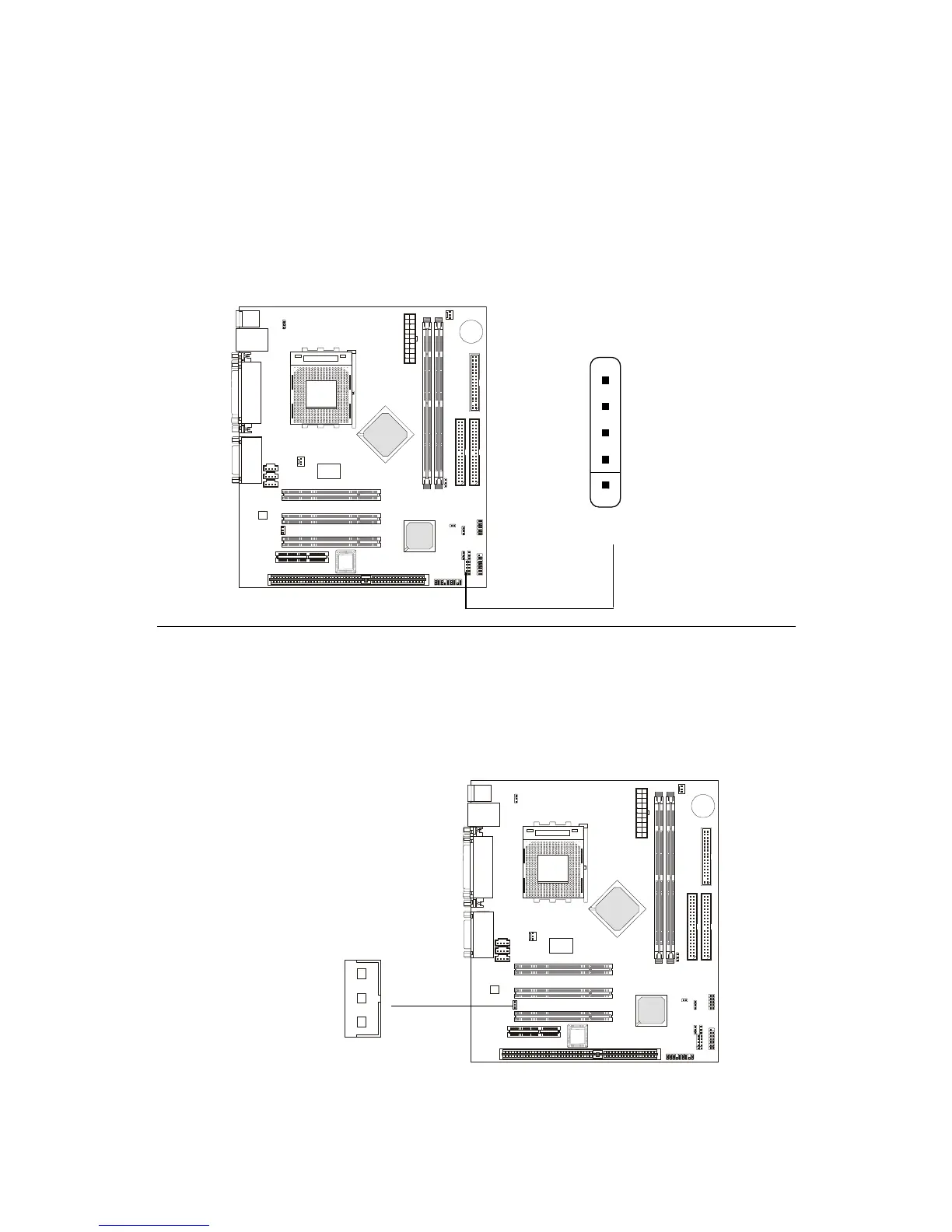

Wake On LAN Connector: JWOL1
This connector allows you to connect to a LAN card with W
ake On
LAN function. Y
ou can wake up the computer via remote control through a
local area network.
JWOL1
5VSB
GND
MP_WAKEUP
1
Wake On Ring Connector: JMDM1
This connector allows you to connect to a modem card with W
ake On
Ring function. The connector will power up the system when a signal is
received through the modem card.
JMDM1
NC
MDM_WAKEUP
NC
5VSB
1
GND
31
33
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1. Introduction
8
Mainboard Specification
9
Mainboard Layout
11
Quick Components Guide
12
Key Features
13
MSI Special Features
14
PC Alert™ III
14
Chapter 2. Hardware Setup
16
Central Processing Unit: CPU
17
CPU Installation Procedures
17
CPU Core Speed Derivation Procedure
19
CPU Clock Frequency Selection: JFSB1
19
Memory
20
Introduction to SDRAM
20
DIMM Modules Combination
21
Installing DIMM Modules
21
Power Supply
22
ATX 20-Pin Power Supply
22
Back Panel
23
Mouse Connector
23
Keyboard Connector
24
USB Connectors
24
Parallel Port Connector
25
Serial Port Connector: COM 1
26
VGA DB 15 Pin Connector
26
Joystick/MIDI Connectors
27
Audio Port Connectors
27
LAN Jack (RJ-45)
27
Connectors
28
Floppy Disk Drive Connector: FDD1
28
USB Front Panel Connector: USB1
28
Hard Disk Connectors: IDE1 & IDE2
29
Case Connector: JFP1
30
Hdd Led
31
Wake on Ring Connector: JMDM1
32
Wake on LAN Connector: JWOL1
32
Fan Power Connectors: C_FAN1/S_FAN
33
Modem_In
34
Chassis Intrusion Switch Connector: JCASE
35
Irda Infrared Module Connector: JIR1
35
Front Panel Audio Connector: JAUD1
36
Jumpers
37
Clear CMOS Jumper: JBAT1
37
Onboard Audio Codec Jumper: JP1
38
USB Keyboard Wake-Up Jumpers: JBV1 & JBV2
39
Slots
40
PCI Slots
40
CNR (Communication Network Riser) Slot
40
ISA Slot (Optional)
40
PCI Interrupt Request Routing
41
Chapter 3. AWARD® BIOS Setup
42
Entering Setup
43
Control Keys
43
Getting Help
44
The Main Menu
45
Standard CMOS Features
47
Advanced BIOS Features
50
Advanced Chipset Features
54
Integrated Peripherals
58
Power Management Setup
63
Irqs Activity Monitoring
68
Pnp/Pci Configurations
69
PC Health Status
72
Frequency/Voltage Control
73
Load Fail-Safe/Optimized Defaults
74
Set Supervisor/User Password
76
Save & Exit Setup
78
Bios Setup
78
Exit Without Saving
79
Chapter 4. Installing Drivers
80
System Requirements
81
VIA® Chipset
82
Features
82
VIA Chipset Driver Installation
82
VIA KLE133 VGA Driver Installation
84
VIA AC97 PCI Sound Driver Installation
84
Realtek® 8100 Fast Ethernet Controller
87
Features
87
Driver Installation
87
