ROYAL evo
Page 86

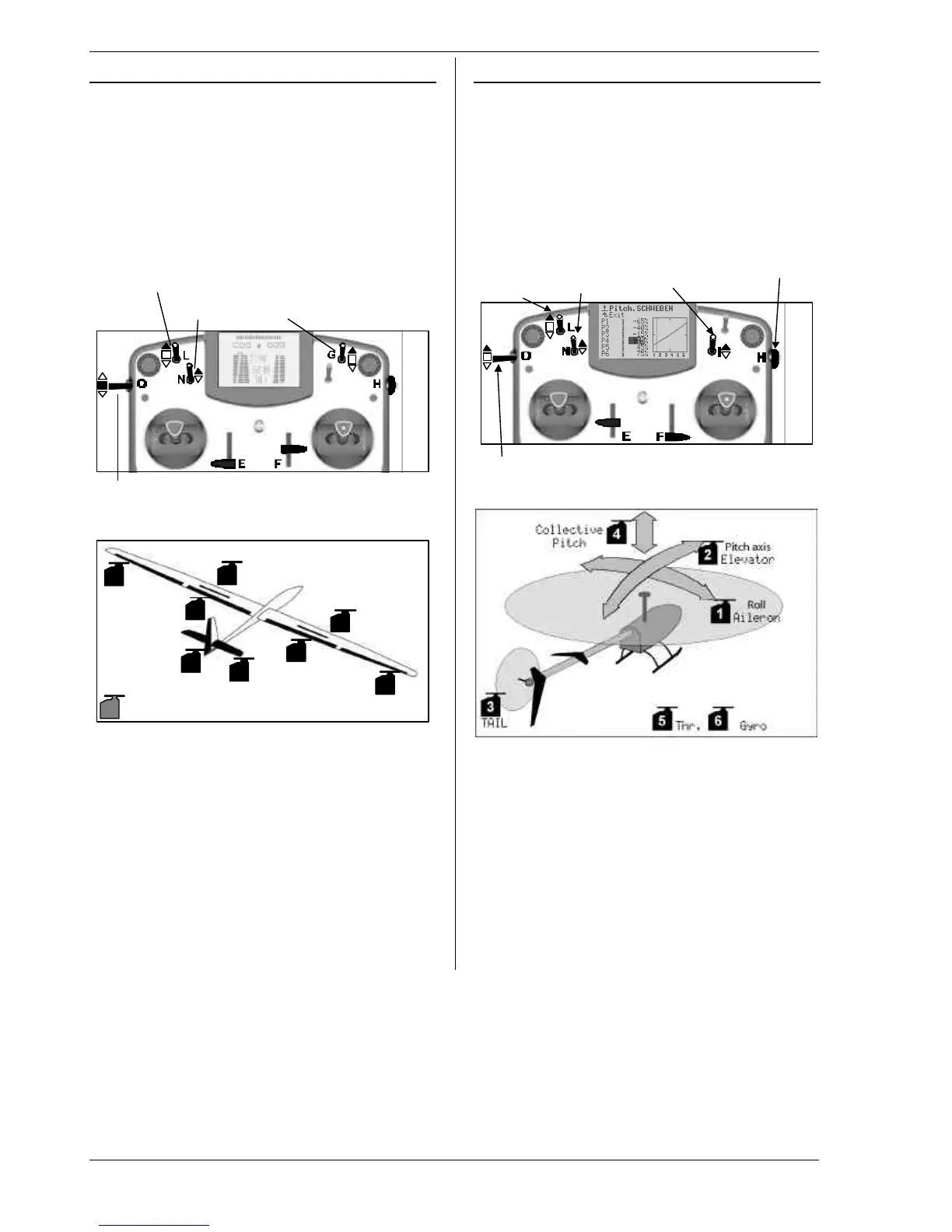

12.10. Template: 4-Flaps
suitable for:
F3B, F3J,
Glider with four wing flaps, with electric power,
with V-tail Typical models:
DG 600, ASW 27, Milan, EURO/ELEKTRO-MASTER,
Alpina (Bild 12.9.2.), ASH 26
12.10.1. Assigned transmitter controls and switches
Assignment used: SEGLER
A : Sum timer ´ controlled by throttle (E)
Dual-Rates Combi- Mix-1
A/E/R Switch (ele-ail))
OFF OFF OFF
Phase 1-3 Throttle Flap
1: NORMAL Idle neutral
12.10.2. Assigned servos / receiver outputs
1
2
4
5
6
3
7
8
9
Spoiler
Spoiler
AILERON+
Throttle
AILERON+
ELEVATR+
Rudder
FLAP+
FLAP+
ç Aero-tow release instead of throttle: see 12.9.3.
12.10.3. Fine-tuning
!!
Steps a. and b. (è 12.4.)
c. Butterfly
This function is already programmed in the tem-
plate, and is operated using the transmitter control
Spoiler (slider E). You may have to adjust the com-
pensation ratio (15%) in the ELEVATOR+ mixer.
d. Activate throttle - elevator mixer
select G, ELEVATR+, input Thr -Tr ,
set 10% down elevator
For fine adjustment in flight assign the value to the
3-D digi-adjustor (è 10.2.2.).
12.11. Template: HELImech
suitable for:
Main rotor control systems with mechanical mixers
Typical models:
Ergo, Futura, Moskito, Raptor
12.11.1. Assigned transmitter controls and switches
Assignment used: HELI
A : Sum timer ´ controlled by THR.LIMITER (F)
Dual-Rates Direct Main Throttle
A/E/R Throttle phase Cut
OFF OFF OFF
Phase 1-3 Gyro Thr. limiter (Direct Thr.)
1: HOVER Centre Minimum
12.11.2. Assigned servos / receiver outputs
12.11.3. Fine-tuning
a. Check stick functions (roll, pitch-axis, yaw)
Select different mode if necessary (è 13.3.1.)
L, Assignment, Mode
b. Check direction of servo rotation for all functions
If necessary change servo direction (REVERSE)
K, Calibrate, select servo, Parameter REV/CLR
c. Gyro features
è 15.3.
