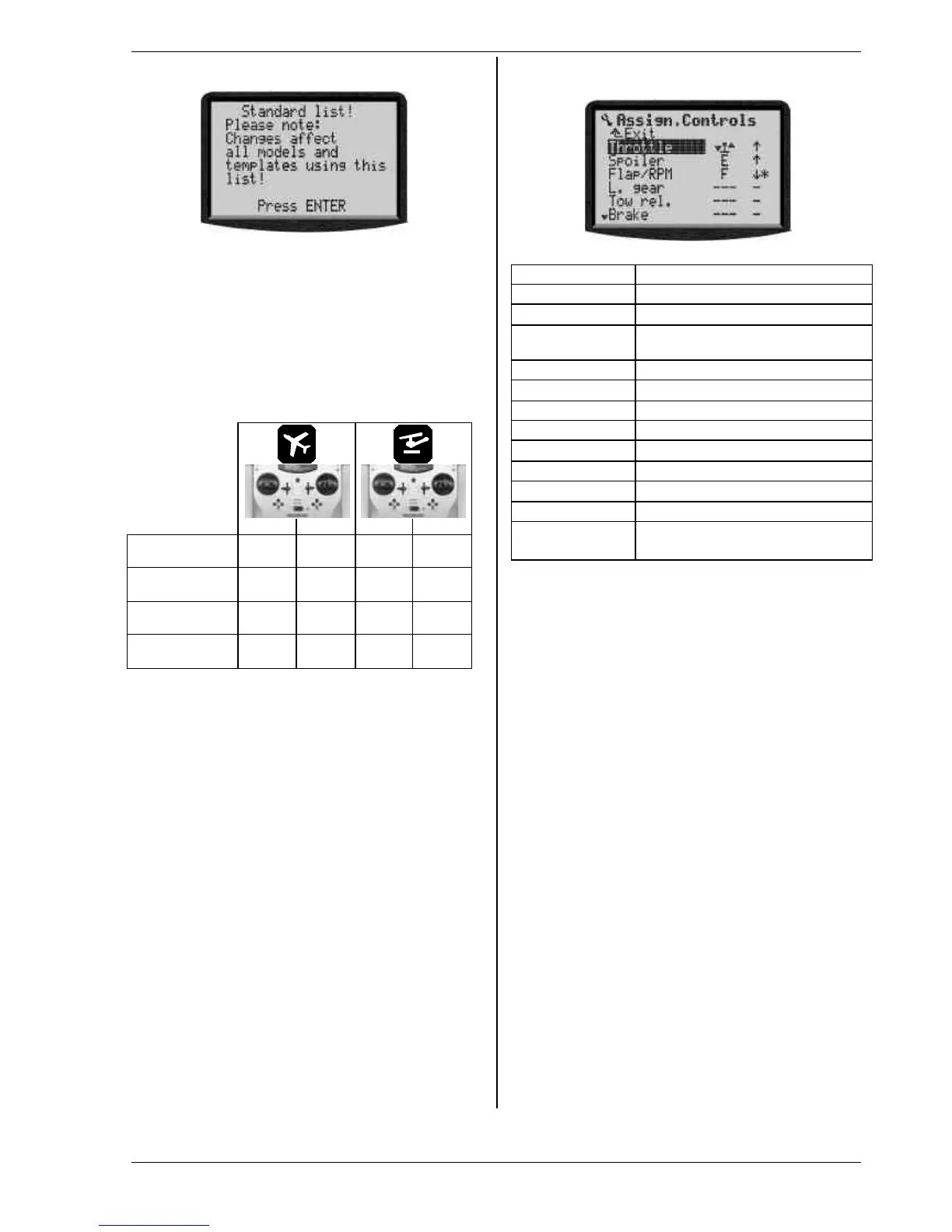

If you attempt to change one of these “standard mixers”
the following on-screen note appears:
13.3.1. Parameter „Mode“
I Affects active model only
The transmitter controls for the primary control axes
(sticks) aileron / elevator / rudder or roll-axis / pitch-axis
/ yaw are governed by the “Mode” (stick mode) parame-
ter, rather than by assignment lists.
All 4 possible control modes are available. The arrows
are reminders for the assignment.
é stands for Rudder resp. Yaw
è stands for Elevator resp. Pitch Axis
Mode left right left right
1: è é
Elevat.
Rudder
Thr./Sp.
Aileron
Pitch
Yaw
Coll.
Roll
2: é è
Thr./Sp.
Aileron
Elevat.
Rudder
Coll.
Roll
Pitch
Yaw
The stick mode can be changed at any time (e.g. if an-
other modeller accustomed to a different stick mode
wishes to fly your model). Changing the mode does not
affect any settings or values (e.g. trim settings) in any
way.
You can change the stick mode here in the menu L
Setup, Assignment (è 13.3.2.) as well as in the
menu I Memory, Properties (è 18.5.).
13.3.2. Parameter „Assignment“
I Affects active model only
You can change the stick mode here in the menu L
Setup, Assignment as well as in the menu I Mem-
ory, Properties (è18.5.).
13.3.3. Parameter „Assignment - Name“
affects only the active assignment
(è 13.3.2.)
Each assignment list (consisting of transmitter control
assignment and switch assignment) can be allotted its
own name. 8 characters are available (text input: è
10.1.3.).
13.3.4. Parameter „Assignment - Controls“
Affects active assignment only (è13.3.2.)
The following control functions are available:
Control function Note
Throttle
Spoiler
Flap/RPM
Flap for fixed wing models and
RPM control for helicopters
L. gear
Tow hook
Brake
Gyro
Mixture
AUX1
Auxiliary function/channel
AUX2
Auxiliary function/channel
Collect.
Helicopters only
Thr.limit
Helicopters only
(throttle limiter/“Idle up“)
The corresponding transmitter control (control ele-
ment) for the control functions listed above can be
assigned quickly and simply using Quick-Select.
Assigning using Quick-Select:
1. In Column 1 select the desired function (Column:
Control function)
2. Press ENTER to move to Column 2 (Column: Control
element)
3. Operate the desired control element
⇒ The screen displays the code letter for the con-
trol element you operated.
' TIP:
One control element can be assigned to multiple con-
trol functions, and can also be assigned simultaneously
as a switch (also for several functions).
1. Important!
Move the control element to the desired neutral
position (e.g. throttle to idle, spoiler to retracted
position, collective pitch to minimum position)
2. Press ENTER to confirm the input
⇒ cursor returns to column 1
If the control function is not required, erase the assign-
ment by pressing REV/CLR ⇒ „ – – – “appears.
Column 3 shows the status ( * = ON, control element at
neutral position) and the direction of the neutral posi-
tion ( # / ' ).
Note: Assignment of push buttons
Please note the exceptions which apply when assigning
the following control elements: momentary switches
“H” and “M”, stick-top buttons “KTa” and “KSw” (è next
page).
