National Instruments NI PCI-6510 User Manual

3-18 | ni.com
Chapter 3 Digital I/O
NI 6517 Pin Assignments

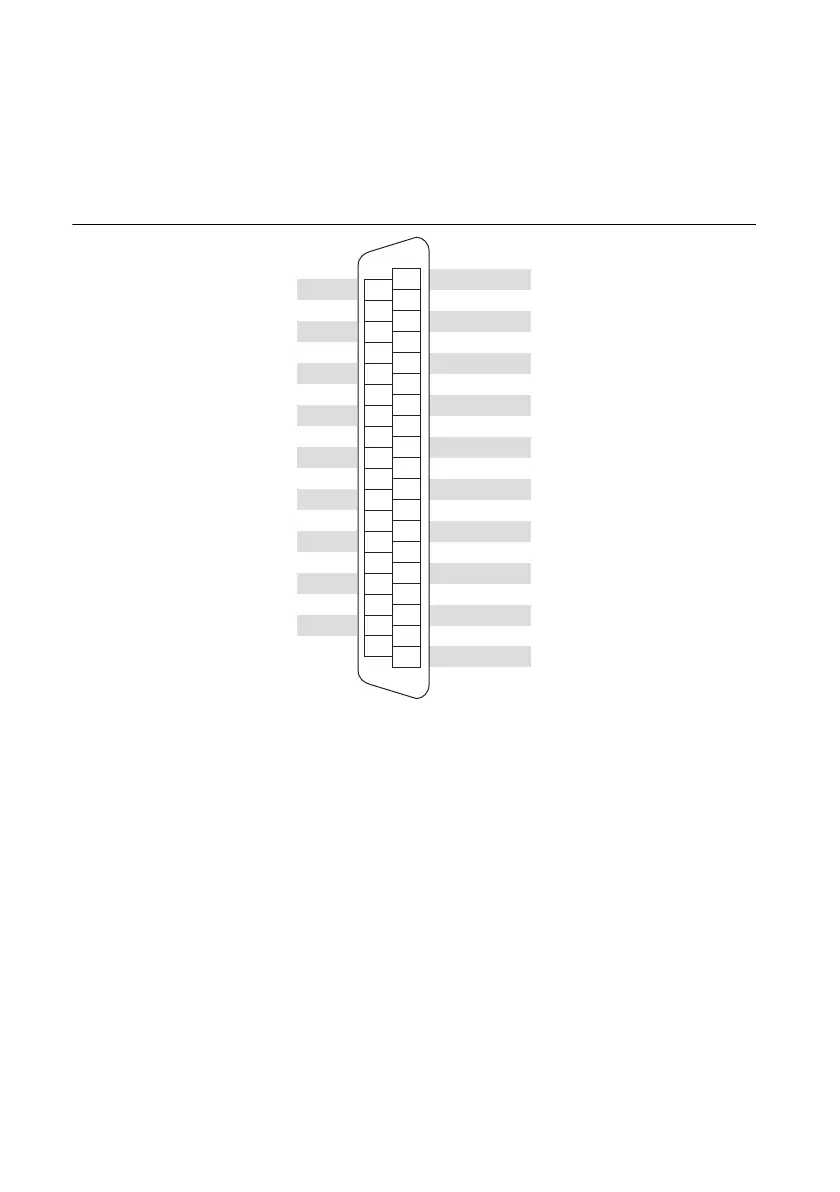

Figure 3-13 shows the pin assignments for the SH37F-37M cable when connecting to the
NI 6517 device. The naming convention for each pin is PX.Y, where X is the port (P) number,
and Y is the line number or name.
Figure 3-13. NI 6517 Pin Assignments
For more information on the NI 6517 signals, refer to the Signal Descriptions section.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
P0.0
P0.2
P0.4
P0.6
GND
P1.1
P1.3
P1.5
P1.7
P2.0
P2.2
P2.4
P2.6
GND
P3.1
P3.3
P3.5
P3.7
COM (VCC)
P0.1
P0.3
P0.5
P0.7
P1.0
P1.2
P1.4
P1.6
GND
P2.1
P2.3
P2.5
P2.7
P3.0
P3.2
P3.4
P3.6
GND
