NI 651x User Manual
Figure 4-9. NI 6516 GND Connection Example
Figure 4-10. NI 6518 GND Connection Example
Refer to the NI SH37F-37M Cable section of Chapter 5, Cables and Accessories, for more
information.
Output Signal Connection Example (Sinking Current)

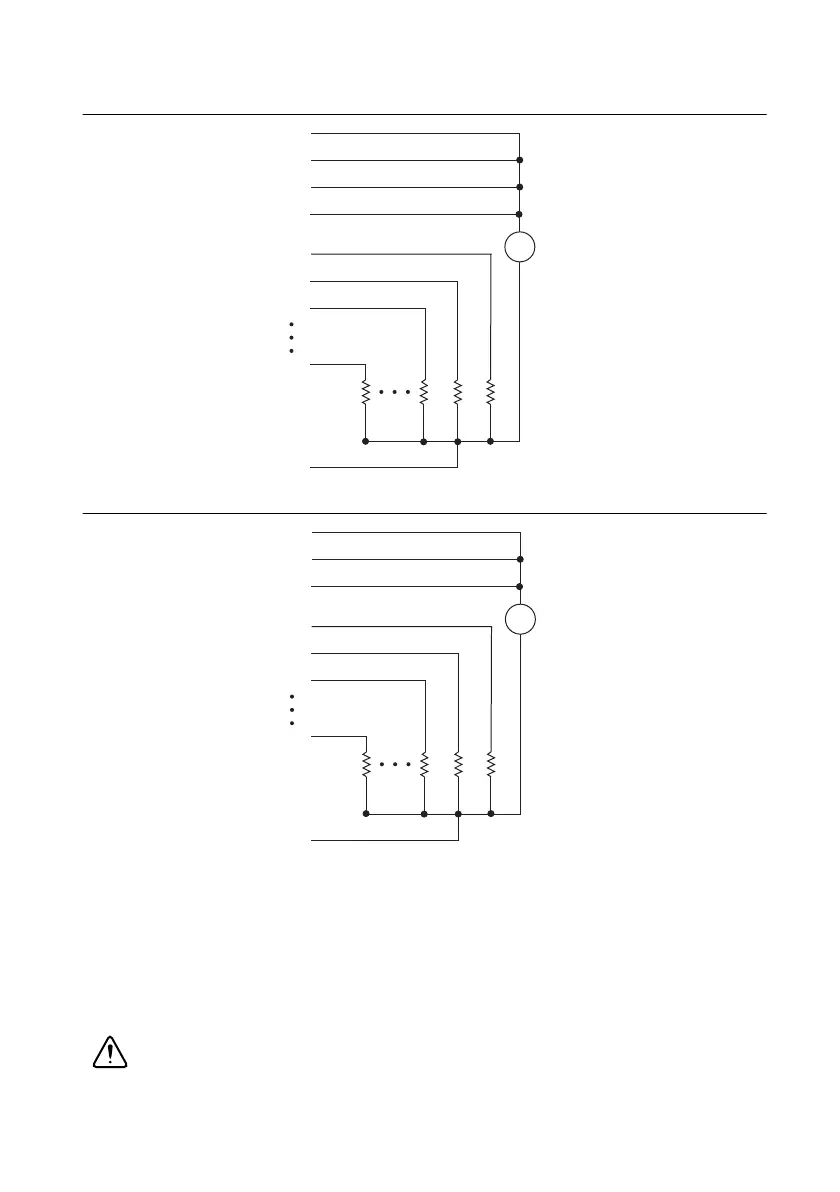

The following figures show examples of driving a load with the photocouplers and Darlington
arrays (sinking current).
Caution Make sure that P<0..7>.COM (VCC) is connected to the positive pole of
the power supply and that P<0..7>.GND is connected to the negative pole of the
R
L0 ...
P0.0
P0.1
P0.2
P3.7
VCC, Pin 5
VCC, Pin14
VCC, Pin 28
VCC, Pin 37
COM
+
–
+5 V ~ +30 V
R
L0 ...
P0.0
P0.1
P0.2
P3.7
VCC, Pin10
VCC, Pin 28
VCC, Pin 29
COM
+
–
+5 V ~ +30 V
