Chapter 1 Getting Started
RMC-8357 Description
Figures 1-1 1-2 and shows the key features of the RMC-8357 front and rear panels. For detailed
information about the RMC-8357 front and rear panel, refer to Chapter 3, I/O Information.

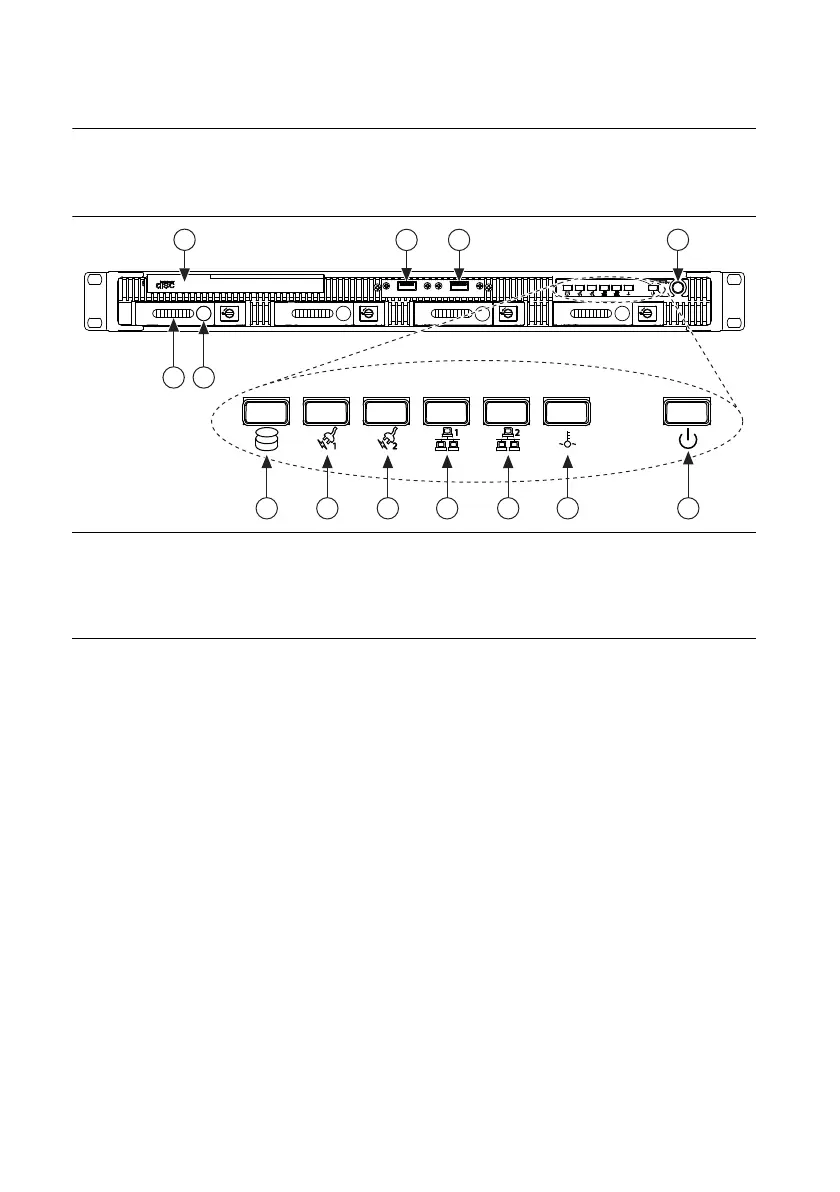

Figure 1-1. Front View of the RMC-8357
The front panel includes the following LEDs:
• Hard drive activity indicator—Glows when there is hard drive activity.
• Power shuttle indicators—Glow when power shuttles are powered on.
• LAN status indicators—Flash when there is activity on LAN1 or LAN2.
• Overheat/fan fail indicator
– Off—Normal
– On—Overheat
– Flashing—Fan failure warning
• Power indicator—Glows when the RMC-8357 is powered on.
1 DVD-R/W Blu-ray Drive
2 Hard Drives
3 Hard Drive Ejector Buttons
4USB Ports
5 Hard Drive Activity Indicator
6 Power Shuttle 1 Indicator
7 Power Shuttle 2 Indicator
8 LAN1 Status Indicator
9 LAN2 Status Indicator
10 System Temp and Fan Warning Indicator
11 Power Indicator
12 Power Button
Rugged Rackmount ControllerRugged Rackmount Controller
NI RMC-8357NI RMC-8357
4
4
32
12
9876
5 10
11
1
