Serial
Figure 3-3 shows the location and pinouts for the serial connector on the RMC-8357. Table 3-4
lists and describes the serial connector signal.

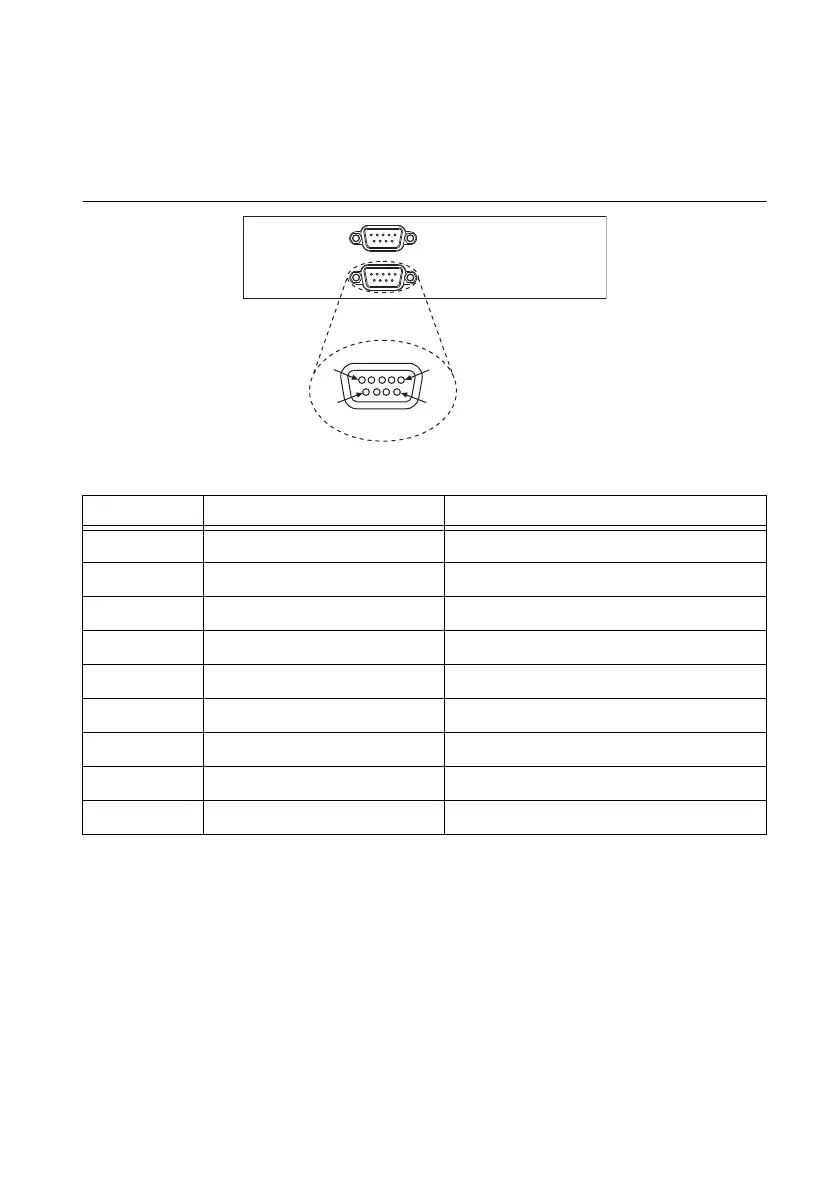

Figure 3-3. Serial Connector Location and Pinout
Table 3-4. Serial Connector Signals
Pin Signal Name Signal Description
1 DCD* Data Carrier Detect
2 SIN* Receive Data
3 SOUT* Transmit Data
4 DTR* Data Terminal Ready
5 GND Ground
6 DSR* Data Set Ready
7 RTS* Ready to Send
8 CTS* Clear to Send
9 RI* Ring Indicator
1
5
9
6
Serial
