When using the MIDI Assignment editor, all keyboard controls (i.e. navigation, transport,
etc.) are blocked.
4.5 Connecting External MIDI Equipment to the Keyboard
The KOMPLETE KONTROL S-Series keyboard has dedicated MIDI sockets that allow you to di-
rectly connect other MIDI devices using a 5-pin DIN MIDI cable and integrate the keyboard
into your MIDI setup.

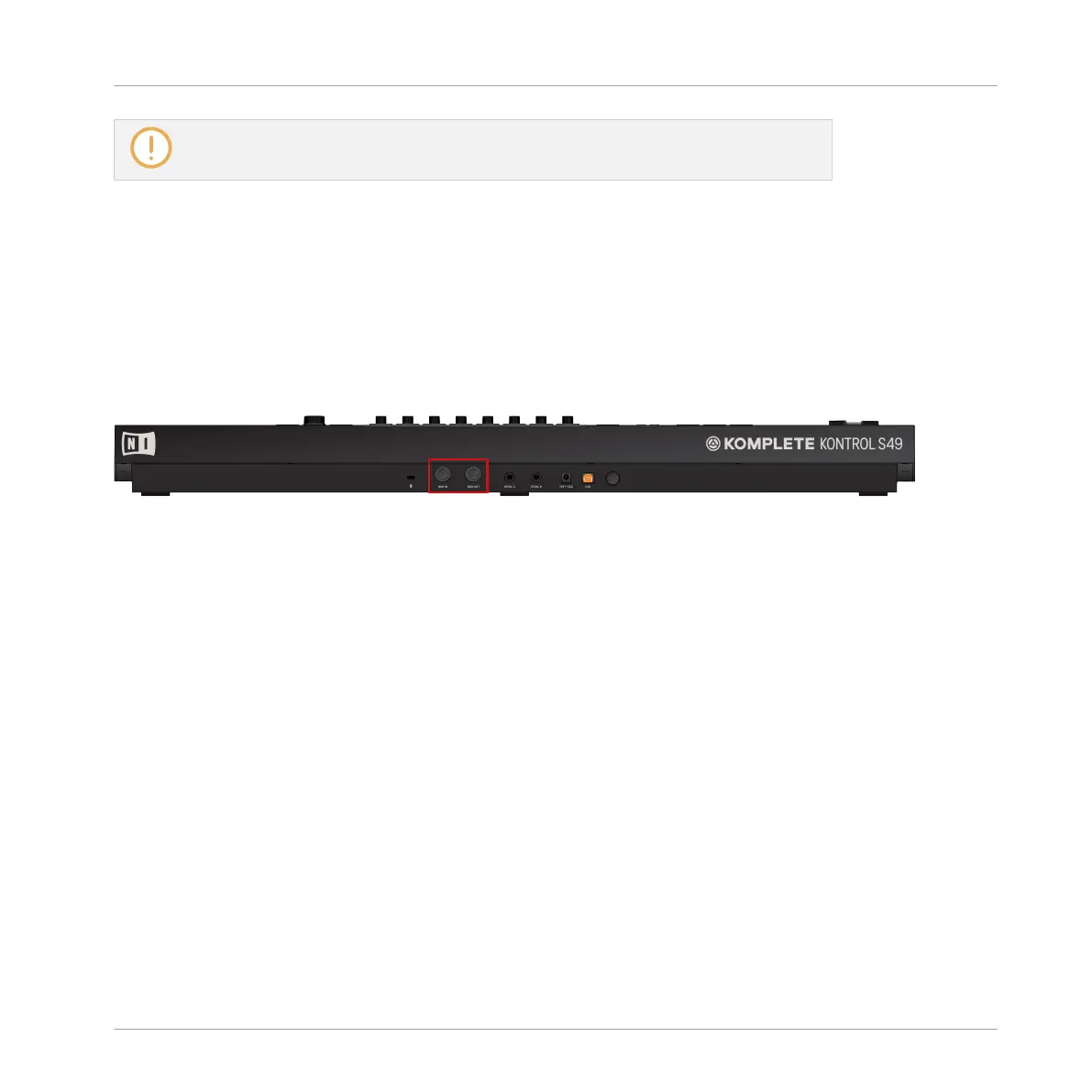

The MIDI sockets on the rear panel of the KOMPLETE KONTROL S-Series keyboard.
To connect your external MIDI equipment:
1. Connect the device receiving MIDI signals to the MIDI OUT socket on the rear panel of
the keyboard using a 5-pin DIN MIDI cable.
2. Connect the device sending MIDI signals to the MIDI IN socket on the rear panel of the
keyboard using a 5-pin DIN MIDI cable.
→ The MIDI equipment is connected.
Depending on your use case, additional configuration is required in the software:
▪ If KOMPLETE KONTROL is running as a stand-alone application, you need to activate the
corresponding MIDI inputs and outputs of the keyboard on the MIDI page of the Preferen-
ces.
▪ If KOMPLETE KONTROL is running as a plug-in in a host, the MIDI configuration is man-
aged by the host.
▪ If you are using the keyboard as MIDI controller without a USB connection, MIDI data is
directly sent and received via the keyboard’s MIDI IN and MIDI OUT sockets.
Setting up KOMPLETE KONTROL
Connecting External MIDI Equipment to the Keyboard
KOMPLETE KONTROL - Manual - 30
