Planar-D1 / Compact-M2 R7

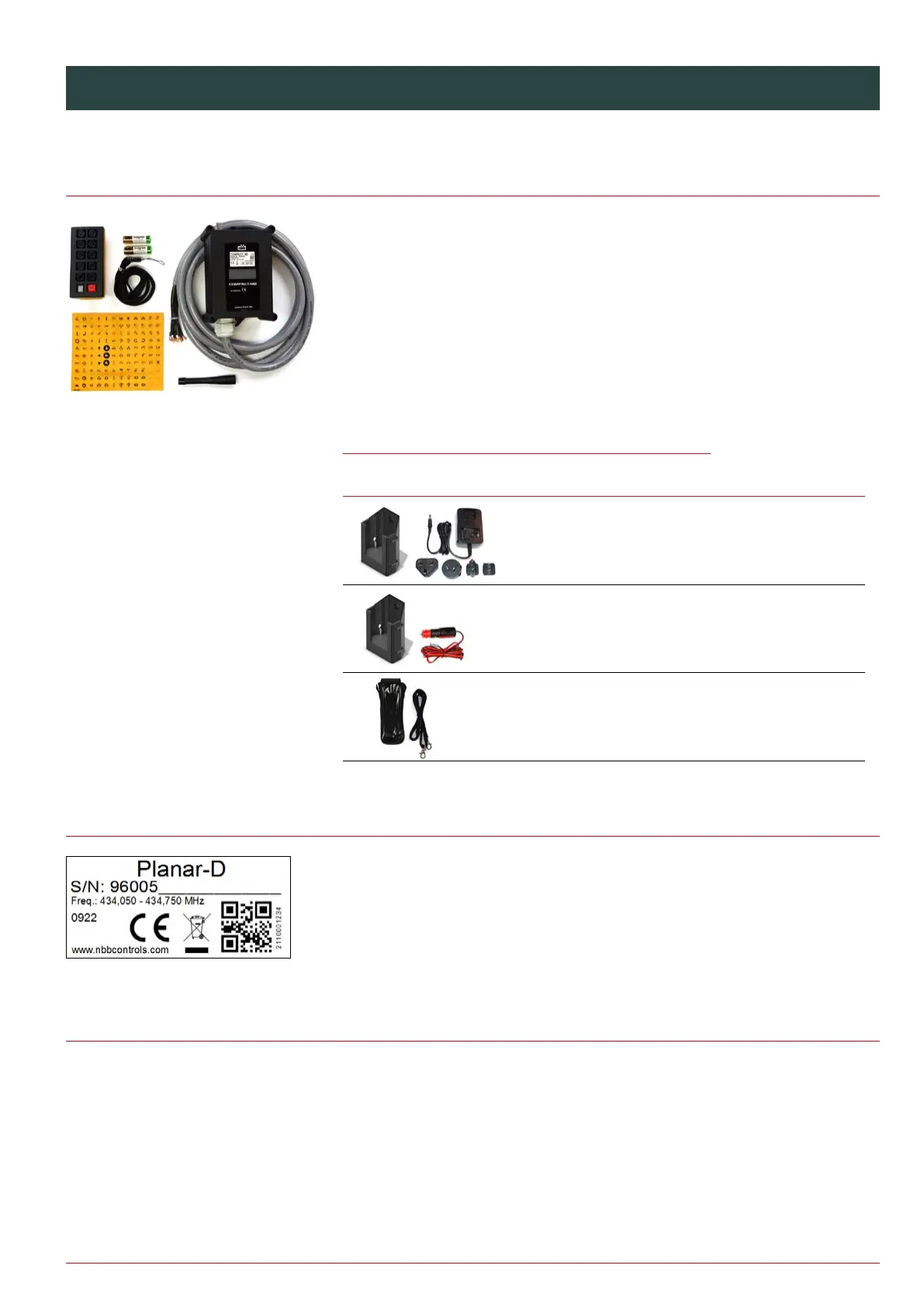

Scope of delivery
– Planar-D1 transmitter (NBB no. 10001)
– Compact-M2 R7 receiver (NBB no. 10002)
– Operating instructions
– 2 x AA alkaline batteries 1.5 V
– Standard symbol sheet (NBB no. 3.820.1823)
– Carrying belt
– Antenna
The order confirmation and/or the delivery note when the system is received is binding
for the actual scope of delivery.
Optional accessories (webshop: https://shop.nbb.de/de-de/)
Type NBB no.
Wall mount (with charging function)
incl. plug adapter set (GB/USA/AU/EU)
– Only in combination with
rechargeable battery
2.250.1480
Wall mount (with charging function)
incl. car adapter
– Only in combination with
rechargeable battery
2.250.1481
Planar-D carrying bag 3.360.1012
Type plate
The following data is indicated on the type plate:
– Transmitter type
– Production number
– Frequency range
– Approval for non-EU countries
Please always specify the serial number for queries.
Safety equipment
Safety equipment in the NBB radio control system:
– Emergency stop or stop function
– Zero position interlock
– Addressing each transmitter using a unique bit combination
Please check the control elements and the housing for breaks and cracks each time
before commissioning the transmitter. Contact your service team if necessary. Non-
observance can lead to malfunctions.
Transmitter Planar-D1
Example type plate
