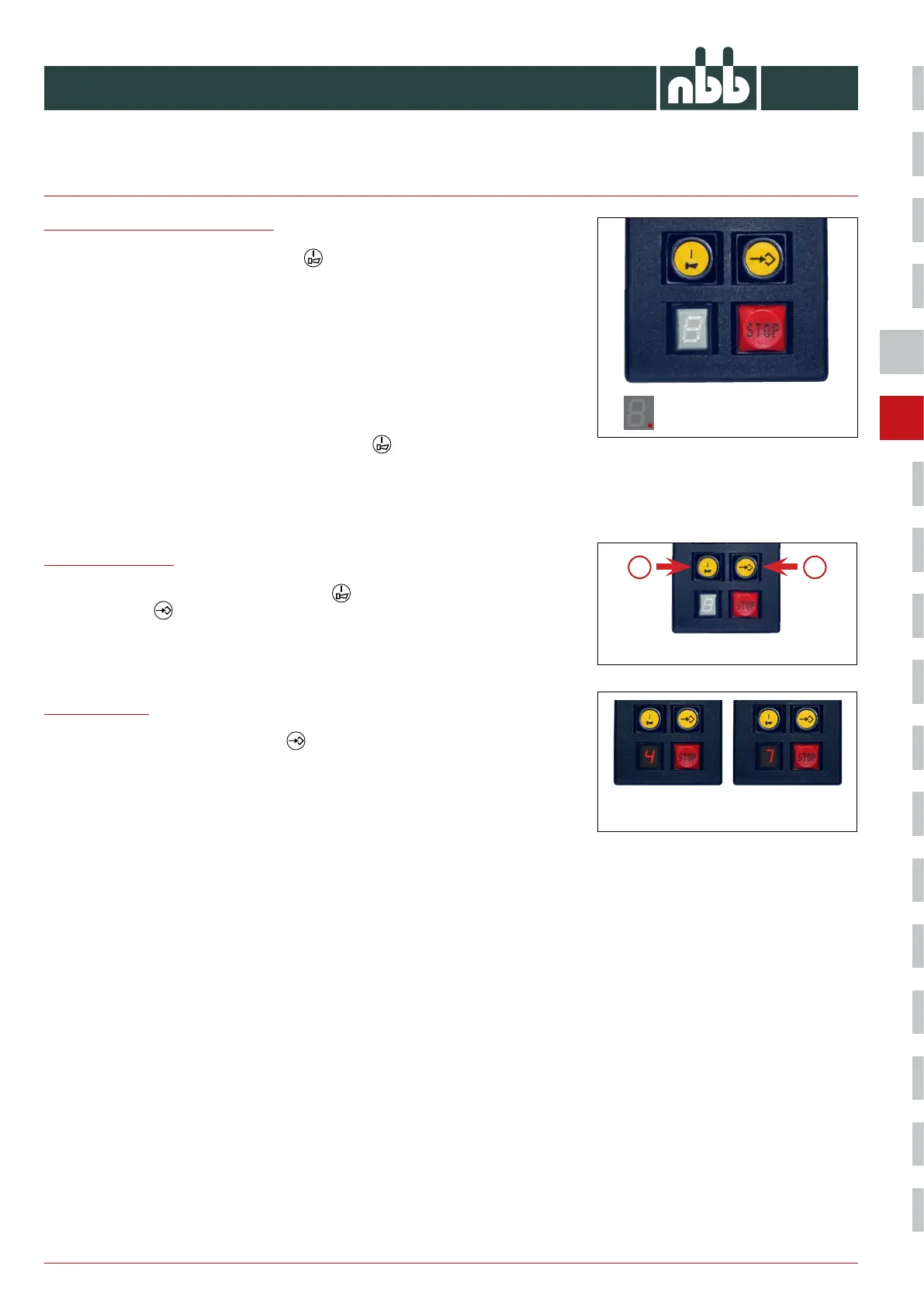

Operation of the system
Switching the transmitter on and off
1. The transmitter is switched on with the
key.
✓ During operation, a red dot flashes on the 7-segment display.
2. The transmitter is switched off by pressing the STOP key.
✓ After pressing the STOP key, stop telegrams are sent for 2 seconds to switch off
the system to be controlled. This shut-off time is displayed on the 7-segment
display by the external segments rotating clockwise.
To ensure faultless operation, please observe the following rules for operation precisely:
– The system to be controlled can – provided the transmitter is ready for
operation – only be switched on if no key is pressed.
– The command necessary for this is activated by the
key.
– Here a horn signal is triggered for the system to be controlled.
– After switching on the system to be controlled, this key is used, according to
the work specifications, for repeated triggering of the horn signal.
Frequency switching
1. To switch the frequency, press and hold the
key.
2. Now press the
key. The receiver changes to a new frequency, a horn signal
sounds and the system is ready for operation.
3. Please observe the country-specific regulations, if applicable.
Channel number
► To display the set channel, press the
key during operation.
Operation:
The red dot flashes.
1. On/Horn
2. Frequency switching
First the tens digit is displayed, then the ones digit:
e. g. channel 47.
1
2
