3.5
Mounting Multiple LED Posters as Video Wall
The LED Posters can be placed next to each other and display images or videos like a video wall.
To achieve optimal results, observe the following instructions when mounting multiple LED
Posters next to each other.
Freestanding Mounting (on Pedestal Stand) 3.5.1
Prerequisites
Wire or chain (to prevent tipping)
Attachment for wall, e.g. hook (to prevent
tipping)
depending on
weight of LED Poster
mounting surface, wall
material/condition
Pedestal stand
Screws for tipping prevention
Connection bracket and Connection screw
Screws
4× M6×30 mm with washers
4× M6×16 mm1× M6 × 12 mm
How to do it
Assemble the LED Posters (see 3.2 Freestanding Mounting (on Pedestal Stand), p.17). Step 1)
Result: The LED Posters are mounted on the pedestal stand.

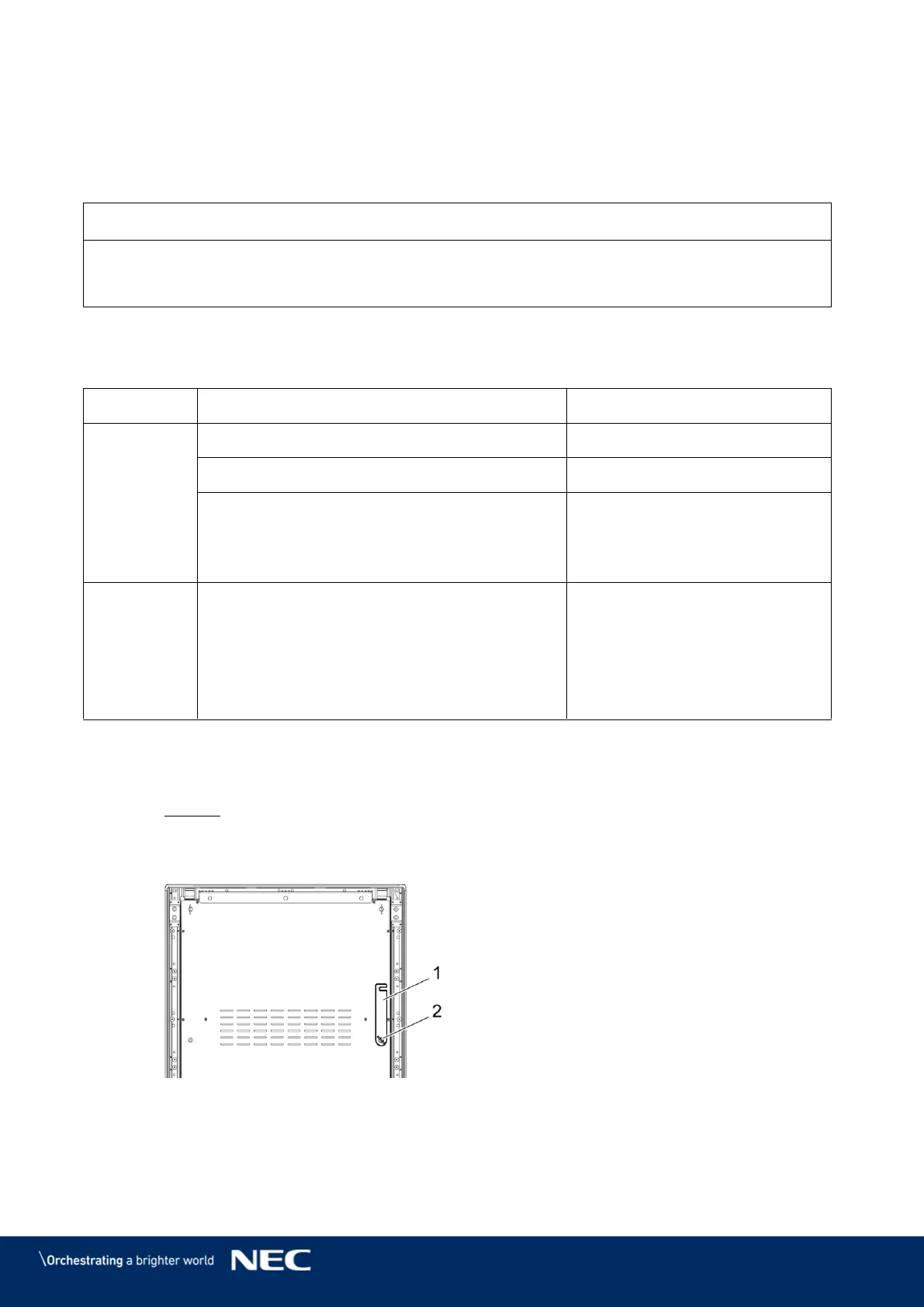

Attach the Connection bracket (1) to the rear panel of the first LED poster with the Step 2)
delivered Connection screw (2). Only tighten the screw lightly, so that the Connection
bracket can still be turned.
Place the second LED Poster close to the first LED Poster. Step 3)
When used in a video wall configuration for a long time, slight expansion of the LED Poster may
happen due to temperature changes. It is recommended that over 1 mm gap is kept between
adjacent LED Poster edges.
