How to do it

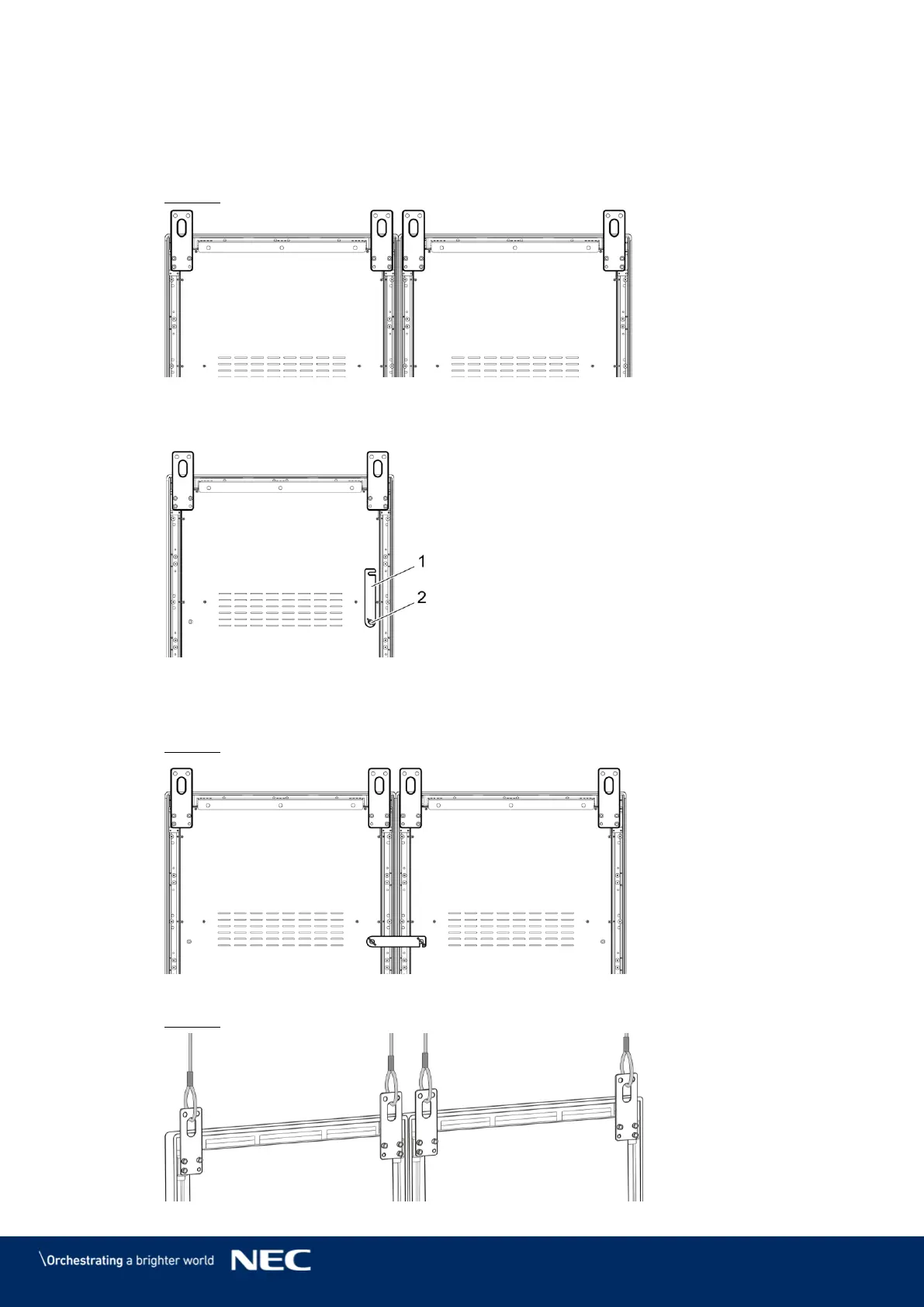

Attach the Hanging brackets to each LED Poster with 3 M6 × 12 mm screws and 3
Step 1)
washers for each Hanging bracket.
The tightening torque range is 275 – 314 N·cm.
Result: The Hanging brackets are fixed on the rear panel.
Attach the Connection bracket (1) to the rear panel of the first LED poster with the Step 2)
delivered Connection screw (2). Only tighten the screw lightly, so that the Connection
bracket can still be turned.
Place the second LED Poster close to the first LED Poster. Step 3)
Fix the Connection bracket on the second LED Poster together with the delivered Step 4)
Connection screw.
Result: The LED Posters are connected.
Attach the wires from the ceiling to the Hanging brackets on the LED Posters. Step 5)
Result: The LED Posters are mounted to the ceiling.
