Wireless Cable Voice Gateway Model CBVG834G Adminstrators User Manual
Installing the Gateway 1-3
v1.0, February 2008
The Gateway Rear Panel
The label on the bottom of the gateway identifies the connections on the rear panel.
The rear panel includes the following connections, viewed from left to right.
•Power. AC power adapter input.
• Wireless antenna. The gateway ships with the wireless antenna already attached.
• Two Voice/Phone ports. With VoIP service, connect one or two handsets to these ports.
• Four Ethernet LAN ports. Use these ports to connect local computers. The port connector
LEDs work as follows:
– Green on. The local port has detected link with a 100 Mbps device.
– Green blinking. Data is being transmitted or received at 100 Mbps.
– Amber on: The local port has detected link with a 10 Mbps device.
– Amber blinking. Data is being transmitted or received at 10 Mbps.
– Off. No link is detected on this port.
• USB port. If the USB driver is installed, you can connect a local computer to this port.
• Coaxial cable connector. Attach coaxial cable to the cable service provider’s connection.
• Reset button. Resets the gateway to its factory defaults.

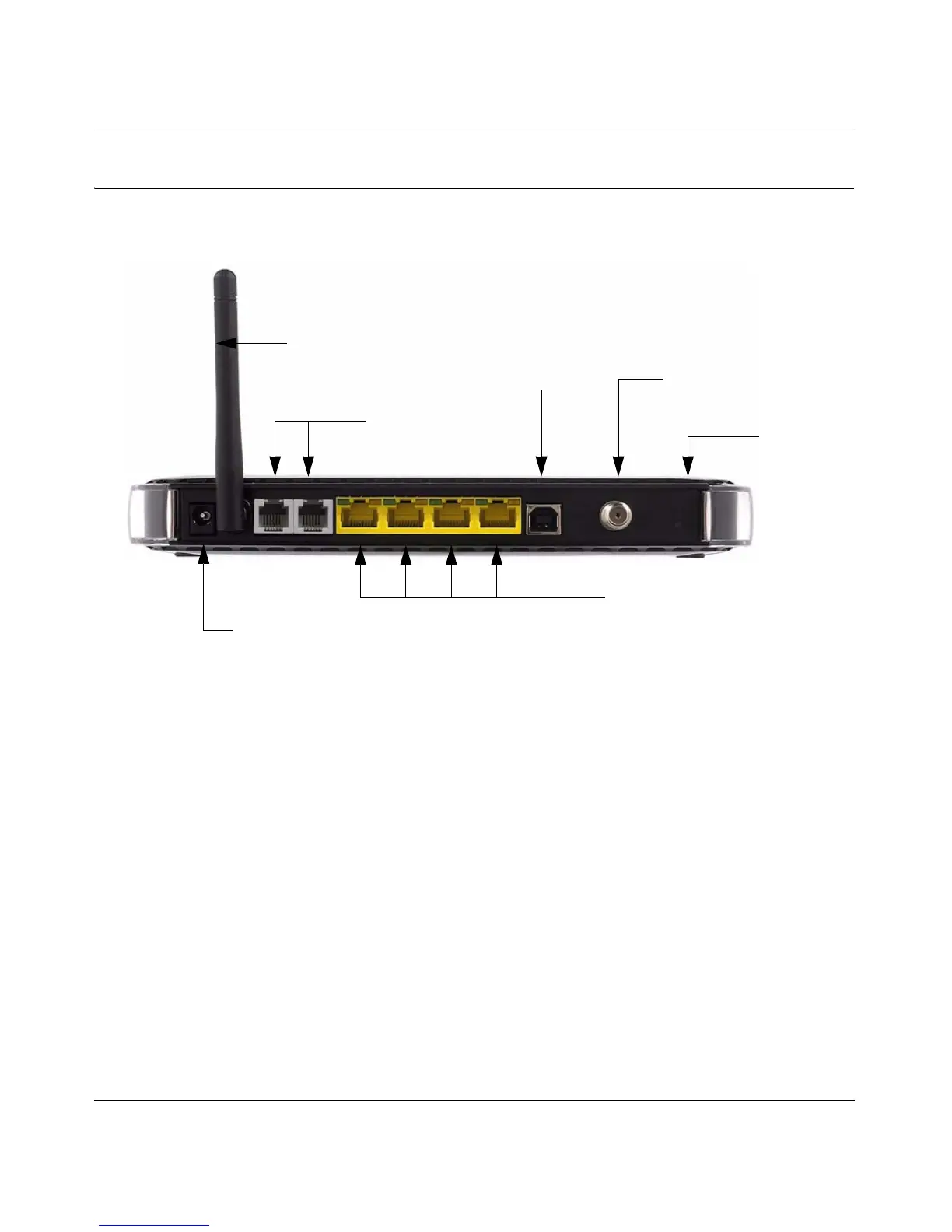

Figure 1-2
Wireless antenna
AC power adapter input
Four Ethernet LAN ports
Coaxial cable to the cable
service provider
Voice/phone ports to
connect handsets
to connect local computers
USB
Reset
