GS700TS Smart Switch Software Administration Manual
6-20 Managing Security
v1.0, June 2009

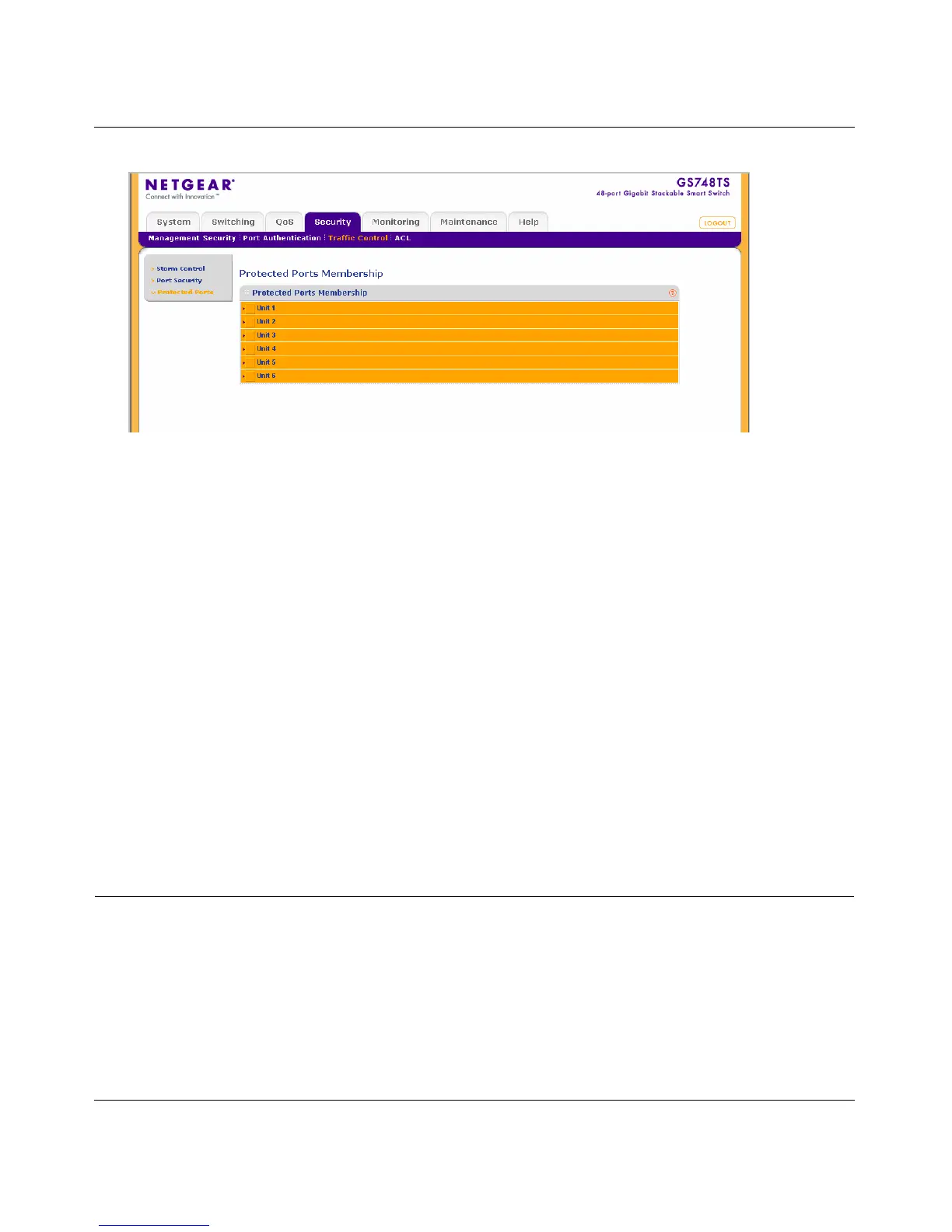

The Protected Ports Membership screen contains the following fields:
Protected Ports Membership Table
• Port Number (1-XX) – Displays the unprotected and protected ports on the device.
2. Select the interfaces to the be defined as a Protected Port by one of the following methods.
a. Click on the Unit’s Unit’s or LAG’s gold bar to display the associated interfaces, and then
select the interfaces to bind by clicking on the boxes below the interfaces.
or
b. Click on the Unit’s or LAG’s quick box to select all the associated interfaces.
3. Click on the gold button. The port panel displays.
4. Select the ports to be defined as protected ports.
5. Click APPLY to update the device.
ACL
Access Control Lists (ACL) allow network managers to define classification actions and rules for
specific ingress ports. Packets entering an ingress port, with an active ACL, are either admitted or
denied entry and the ingress port is disabled. If they are denied entry, the user can disable the port.
The ACL menu contains the following options:
• “MAC ACL”
Figure 6-11
