GS700TS Smart Switch Software Administration Manual
4-5 Configuring Switching Settings
v1.0, June 2009
Basic
The LAG Basic menu contains the following options:
• “LAG Configuration”
• “LAG Membership”
LAG Configuration
The Basic LAG Configuration screen contains fields for configuring LAG parameters. The system
supports 8 LAGs, and each LAG can contain up to 8 ports.
To define LAG parameters:

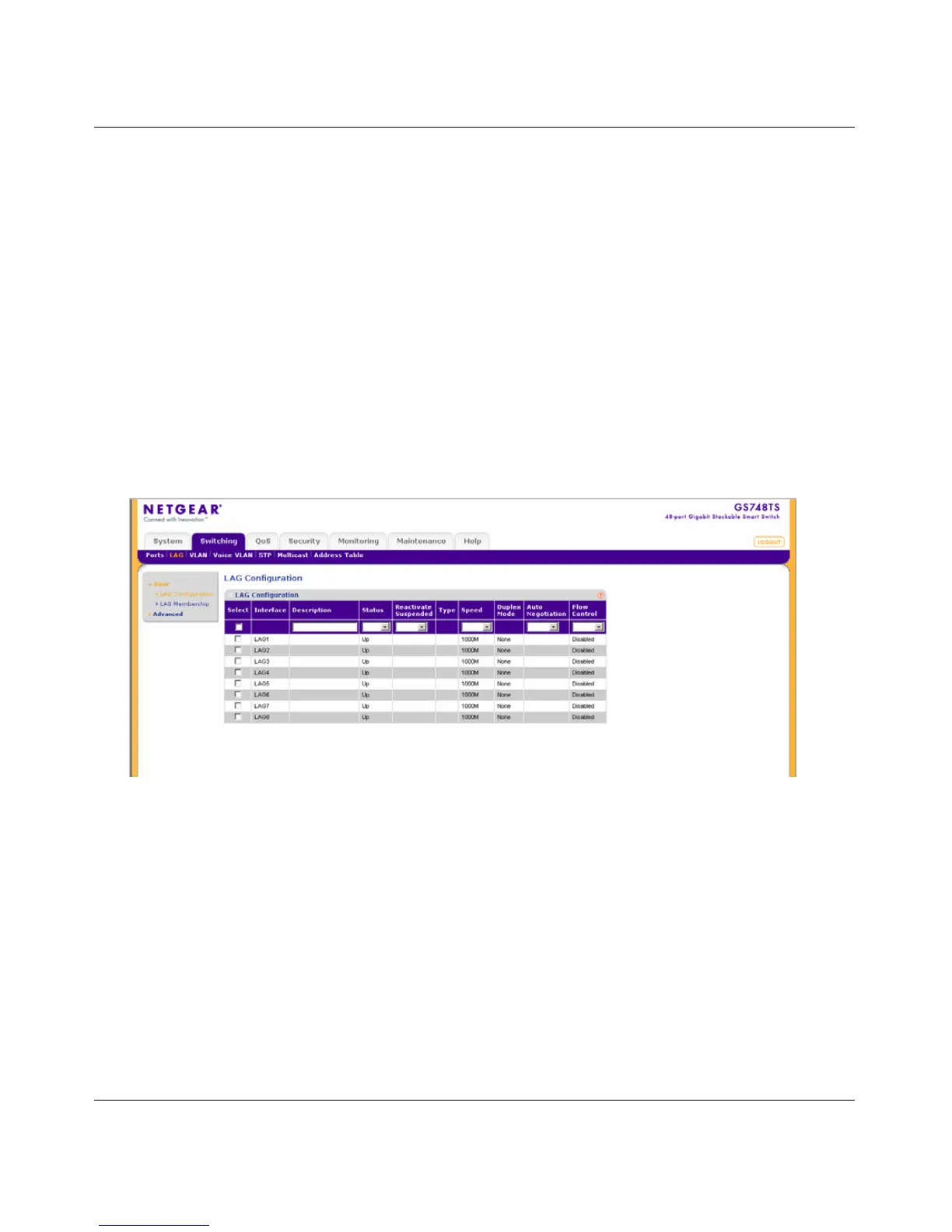

1. Click Switching > LAG > Basic > LAG Configuration. The Basic LAG Configuration
screen displays:
The Basic LAG Configuration screen contains the following fields:
• Interface – Displays the LAG number.
• Description – Enter a user-defined LAG description.
• Status – Select the current link operation. The possible field values are:
– Up – Indicates the LAG is currently linked and forwarding traffic.
– Down – Indicates the LAG is currently not linked.
• Reactivate Suspended – Select the action to apply to a suspended LAG. The possible
field values are:
Figure 4-2
