14 – English

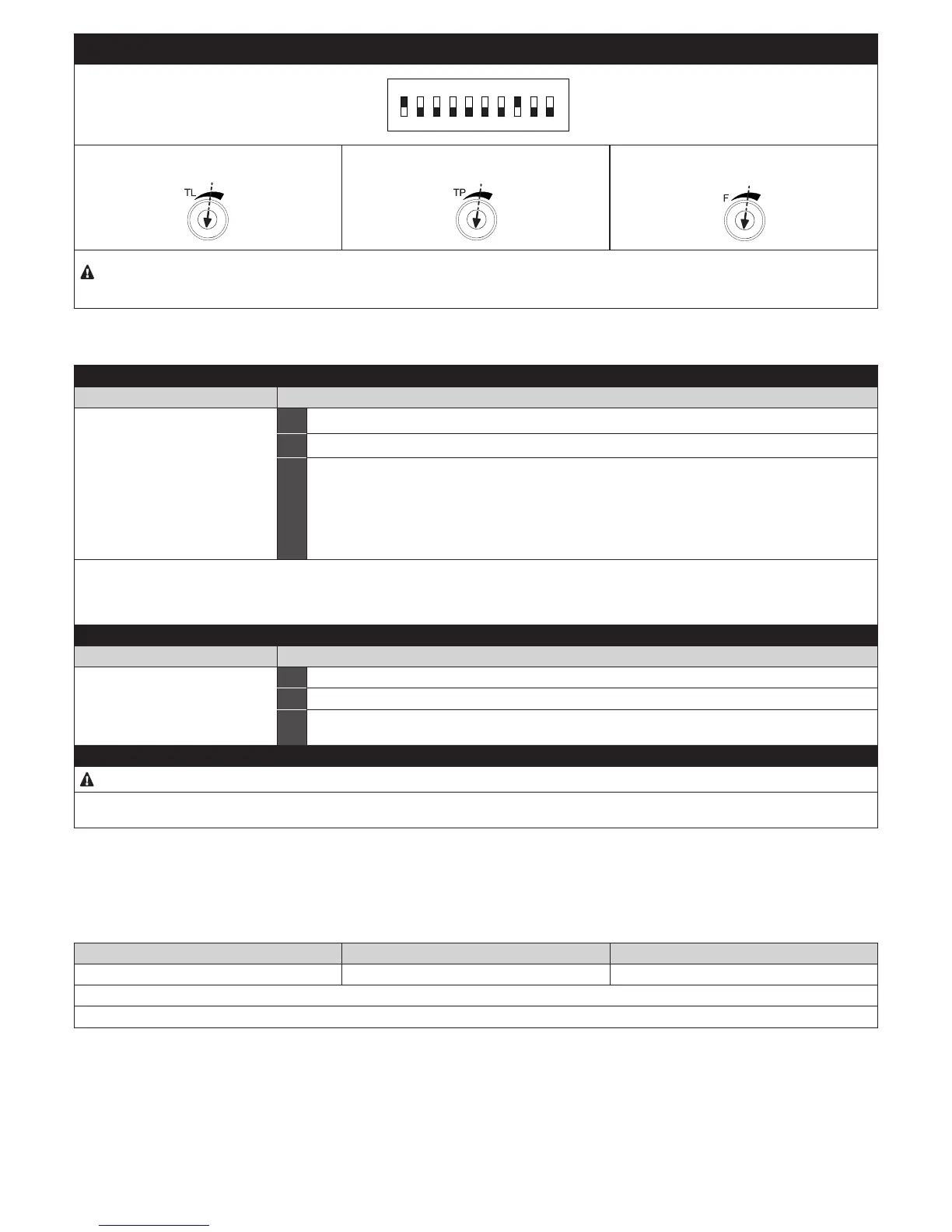

Factory settings (default)
Micro switches:
Semiautomatic (1 = ON)
1
ON
OFF
2 3 4 5 6 7 8 9 10
Trimmer TL (Operating Time) Trimmer TP (Pause Time) Trimmer F (Force)
CAUTION! - Every time the selection of micro switches 1 and 2 is changed, it is necessary to repeat the device learning
procedure as described in paragraph 5.2.
7.1 - Adjustable parameters: Trimmer ( TL - TP - F )
The control unit’s parameters can be adjusted with three trimmers (g. 7)
TL (Operating Time)
Operating mode Adjustment
sets the maximum duration of an
Open or Close movement
01. select ‘Semiautomatic’ or ‘Automatic’ and set micro switch 1 to ‘ON’
02. set trimmer TL to the mid position
03. run a full Open and Close cycle:
check that the maximum duration setting (Open / Close) is high enough and that a margin of 2 or 3
seconds remains.
Adjust trimmer TL to its maximum setting if necessary.
N.B.: if this time is not sufcient, cut the TLM jumper next to trimmer TL (g. 7) to obtain a ‘Long
Operating Time’ (TLM)
Slowing down function: to use this function, activate the “slow down” programmable function and set trimmer TL so that the slow down
phase starts 50/70 cm before the gate trips the limit switch.
N.B.: the result of an adjustment to this parameter is visible during the rst Open movement run after the modication has been made.
TP (Pause Time)
Operating mode Adjustment
sets the time between the end of
an Open movement and the start
of the next Close movement
01. select ‘Automatic’ and set micro switch 2 to ‘ON’
02. set trimmer TP to the desired value;
03. to check the time setting, run a full Open movements and see how long it takes before the Close
movement starts.
F (Force)
CAUTION! – Adjustments to this parameter are safety critical: take great care when making this adjustment.
To adjust the parameter, try various settings: you must measure the force applied by the gate when moving and compare it with local
regulations.
7.2 - Programmable functions
The control unit has a set of micro switches (PROGRAM SWITCH - g. 7) which activate functions to adapt the automation to the user’s needs
as well as making it safer to use.
The micro switches select the operating modes and program the functions, as described in Table 5.
To activate/deactivate a function:
Micro switches (1 ... 10) ACTIVATE DEACTIVATE
ON OFF
IMPORTANT! - some functions are safety critical; make sure to check which function is safest.
