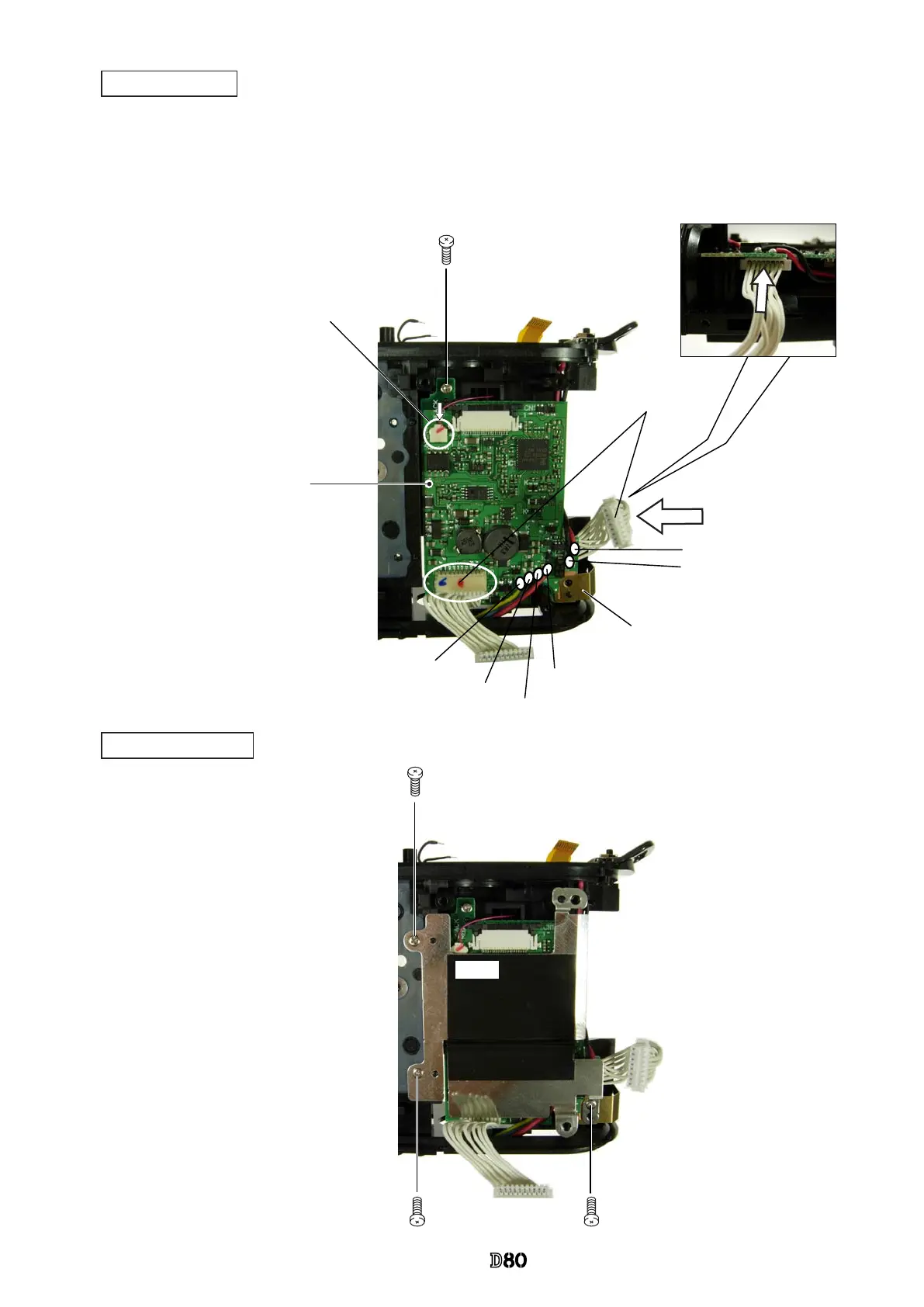

Mount the DC/DC PCB unit (#B1030).
・
Connect the two harnesses to each connector.
・
Tighten the screw (#610).
・
Connect the rechargeable battery wire (#1059).
・
Solder six wires.
・
Attach [#110].
#110
#610
Harness
Black wire:
Battery contacts spring (
－
)
Blue wire:
SB PCB
Red wire:
Battery contacts spring (
＋
)
Yellow wire:
SB PCB Red wire:
SB PCB
Black wire:
SB PCB
Rechargeable battery wire
(#1059)
#607×2
#610
#B109
・
Fix [#B109] with two screws (#607)
and one screw (#610).
DC/DC PCB unit
(#B1030)
DC/DC PCB unit
GND-plate C unit
