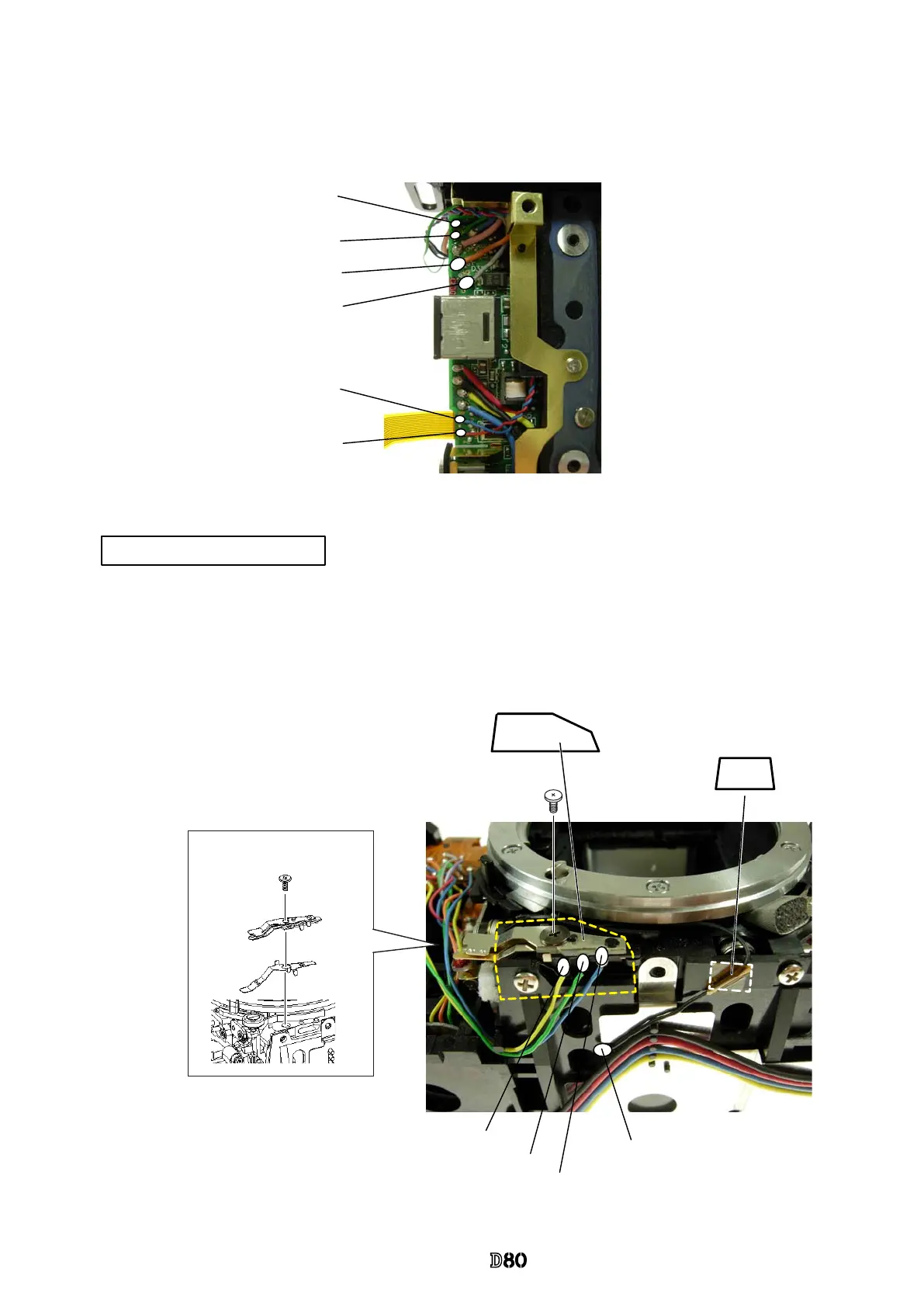

Solder six wires that are connected from the top cover.

Black wire

Green wire

Orange wire

Gray wire

Blue wire

Red wire

・

Put the preview SW (#227) and preview SW unit (#B228), and x them with the screw (#627).

・

Solder four wires.

・

Attach two stickers (#826 and #762).

Preview SW section

#826

#762

Yellow wire

Green wire

Blue wire

Black:FminSW

Preview SW/Fmin GND wire

#627

#B228

#227
