内部に高電圧部あり。カバーを外す時は感電に注意すること。
カバーを外した後は、修理指針の指示に従ってメインコンデン
サーの放電を必ず行うこと。
警告
Approx. 0.7
ｍ
AF50/1.4
Ｄ
＊
Under the environment where the AE-CCD positioning is adjusted, use the reference body (and change the
environment depending on measured results).
・
In case the measured value is out of standard, check if there is no misalignment of the grid lines.
・
In case the measured value is out of standard, change the environment of measurements. (e.g. setting place/
direction, room brightness, etc)
Procedure
①
Make temporary assembly of the following four parts: Top cover (connected only with the FPC without
tightening the screws), grip cover, I/F cover, and bottom cover (with the tripod base plate being attached.)
②
Mount "AF50/1.4D" on the camera, and x them on the tripod horizontally.
③
Connect the camera and PC via USB cable (UC-E4).
④
Connect the AC adapter EH-5.
Caution: Be careful NOT to cause a short-circuit at uncovered portions.
⑤
Attach the AE-CCD positioning tool (J15428) in the color viewer (J63070), and turn power ON.
⑥

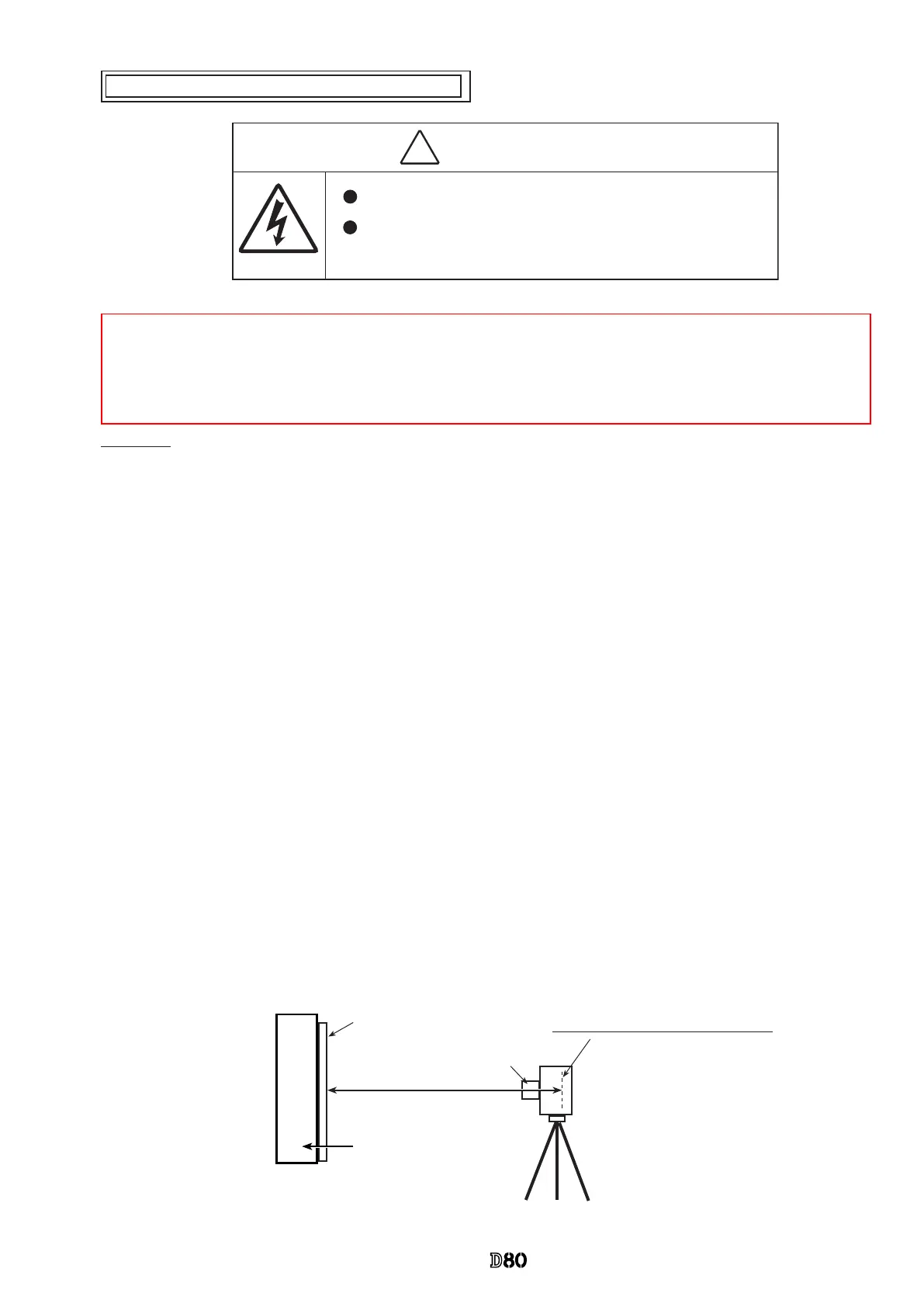

Keep the 0.7-m distance between the front face of the AE-CCD positioning tool and the reference surface
of the camera. Set the camera AF to manual, and the focus ring to "0.7 m" by rotating it.
⑦
Start up the inspection and adjustment software for D80 (J18412), and select "Inspection and Adjustment
for AE CCD POSITION" then "Set Camera for AE CCD POSITION".
Looking through the viewnder, move the camera so that the grid lines of the camera coincide with the
extension lines of the AE-CCD positioning tool.
＊
Set the camera and AE-CCD positioning tool horizontally.
⑧
Select "Inspection and Adjustment for AE CCD POSITION".
＊
Cover the camera with a black cloth, etc, when measured.
⑨
Attach the metering FPC unit with three screws (#514) lightly, then give each screw two turns.
By follow-
ing instructions on PC, make the position adjustment of AE-CCD by the screws (a:#514, b:#514).
⑩
Fix the three screws with screw lock.
⑪
After completing the adjustment,x the top cover with the screw and inspect the accuracy. If the result is
out of standard, make readjustment.
Inspection and adjustment of AE CCD Alignment
AE-CCD positioning
tool (J15428)
Attaching surface of the imaging-PCB
Color viewer (J63070)
WARNING
Take extra care not to get an electric shock when detaching
covers.
After removing covers, b
e
sure to discharge the main
condenser according to the instructions of repair manuals
.
To Next Page
