Getting started
Copyright © 2004 Nokia. All rights reserved. 11
■ Changing the covers
Before changing the cover, always
switch off the power and disconnect
the phone from the charger or any
other device. Avoid touching
electronic components while
changing the covers. Always store
and use the phone with the covers
attached.

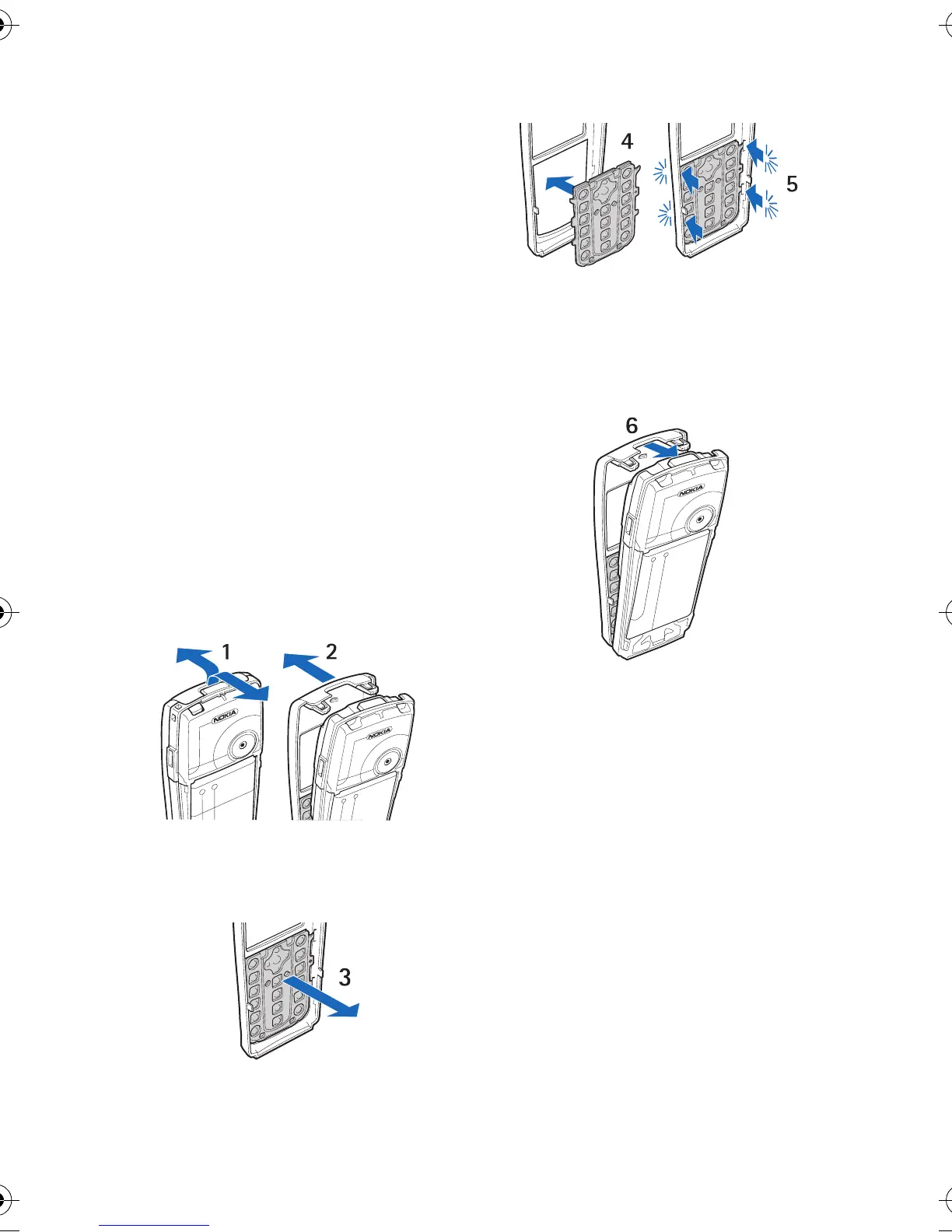

1. Remove the back cover from the
phone. See step 1 in ”Installing
the SIM card and the battery” on
page 9.
2. Gently remove the front cover
from the phone. For this gently
prise the front cover away from
the phone beginning at the top of
the phone (1) and detach the
front cover (2).
3. Remove the key mat from the
front cover by pressing it gently
out (3).
4. Place the key mat in the new
front cover (4).
5. Press the key mat gently in (5).
6. Replace the front cover by
pressing it gently on the phone,
beginning from the bottom (6).
7. Replace the back cover of the
phone. See step 8 in ”Installing
the SIM card and the battery” on
page 9.
Nokia_6230_APAC_UG_en.fm Page 11 Thursday, December 16, 2004 5:16 PM

Nokia 6230 Specifications

General

Display Type	TFT, 65K colors
Resolution	128 x 128 pixels
Internal Memory	6 MB
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Stand-by	Up to 300 h
Talk time	Up to 5 h
Status	Discontinued
Network	GSM
2G bands	GSM 900 / 1800 / 1900
SIM	Mini-SIM
5-way navigation key	Yes
Downloadable wallpapers, screensavers	Yes
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Infrared port	Yes
USB	Pop-Port
Messaging	SMS, MMS, Email, Instant Messaging
Browser	WAP 2.0/xHTML
Java	Yes, MIDP 2.0
Predictive text input	Yes
Organizer	Yes
Voice dial	Yes
Brand	Nokia
Weight	97 g (3.42 oz)
Display Size	1.5 inches
Card Slot	MMC
Main Camera	VGA
Announced	2003
GPRS	Class 10
Phonebook	1000 entries
Alert types	Vibration; Downloadable polyphonic ringtones
Games	Yes
Colors	Black
SAR	0.73 W/kg (head)
Dimensions	103 x 44 x 20 mm, 76 cc
Bluetooth	Yes, v1.1
Radio	FM radio
