7368 ISAM ONT E-240W-A Product Guide
3FE-46974-AAAA-TCZZA Issue: 01
4.4 E-240W-A interfaces and interface capacity
Table 4 describes the supported interfaces and interface capacity for E-240W-A
indoor ONTs.
Table 4 E-240W-A indoor ONT interface connection capacity
Note
(1)
The E-240W-A ONTs provide Wi-Fi service that is enabled and disabled using a Wi-Fi on/off switch.
4.4.1 E-240W-A connections and components

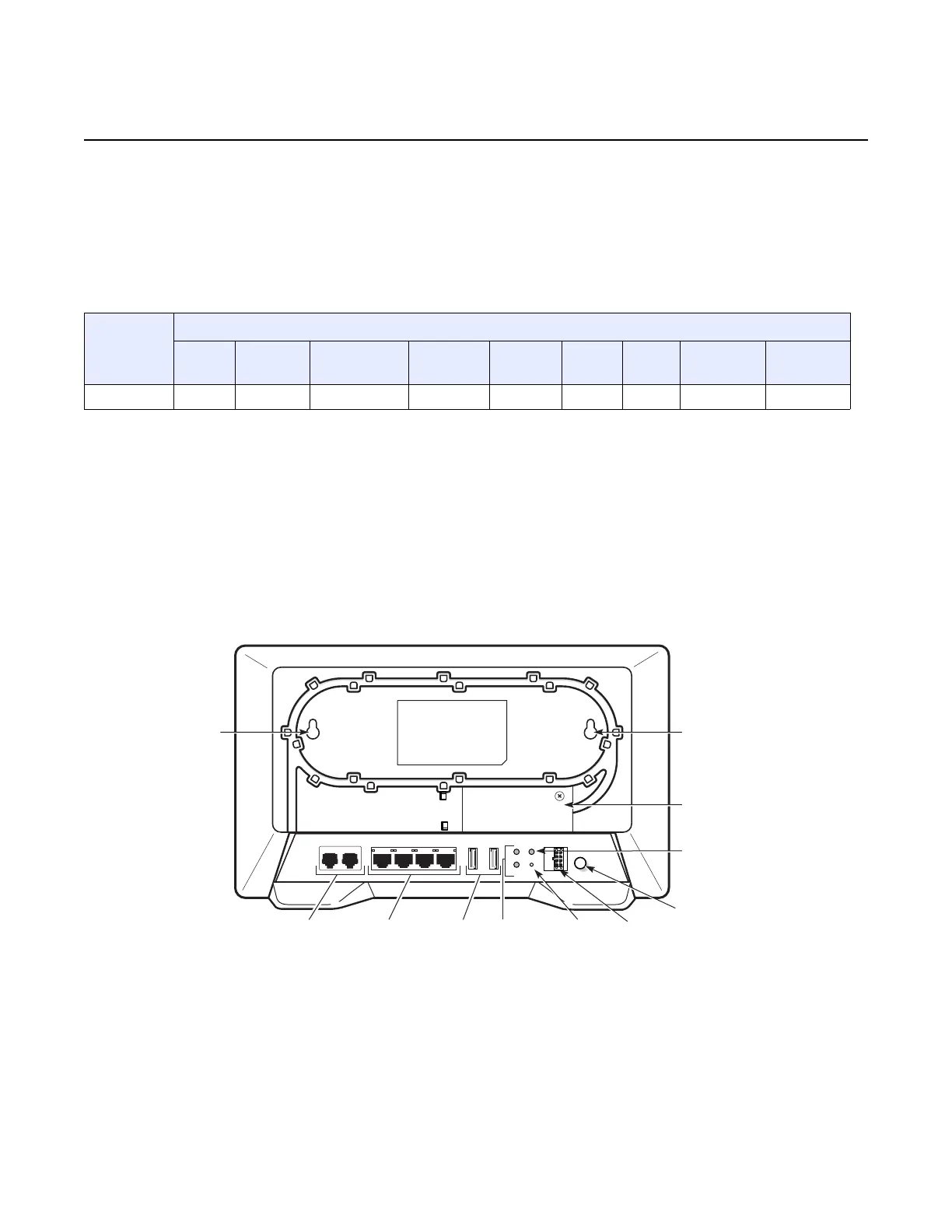

Figure 9 shows the physical connections for E-240W-A indoor ONTs,
Figure 9 E-240W-A indoor ONT physical connections
Figure 10 shows the E-240W-A ONT fiber optic connection
ONT type
and model
Maximum capacity
POTS 10/ 100
BASE-T
10/ 100/ 1000
BASE-T
RF video
(CATV)
MoCA VDSL2 E1/T1 Local craft Turbo
EPON
E-240W-A
(1)
2— 4 — — ——— 1
ON/OFFPOWER
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
WLAN
RESET
WPS2.4G
WPS5G
Wall
mounting
hole
Wall
mounting
hole
POTS
ports (2)
(RJ-11)
Ethernet
ports (4)
(RJ-45)
USB
ports (2)
Wi-Fi
security
buttons
2.4G and 5G
Reset
button
Power
input
Fiber optic
port
Wireless
on/off
button
On/off
button
25272
Release 06.00.00h | January 2019 | Edition 08
