E-240W-A unit data sheet
42
7368 ISAM ONT E-240W-A Product Guide
3FE-46974-AAAA-TCZZA Issue: 01

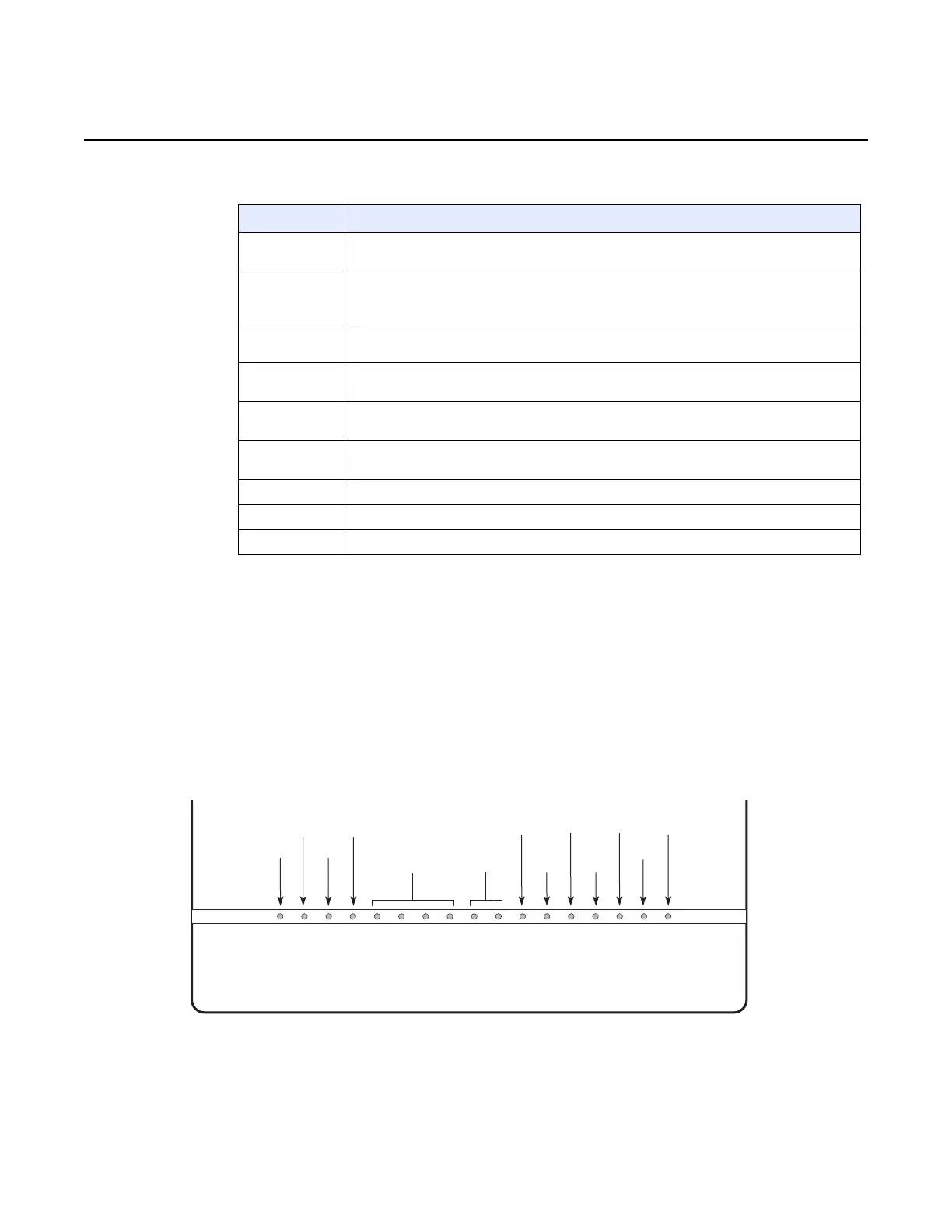

Table 5 E-240W-A indoor ONT physical connections
Note
(1)
The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the power
connector.
4.5 E-240W-A LEDs
Figure 12 shows the E-240W-A indoor ONT LEDs.
Figure 12 E-240W-A indoor ONT LEDs
Table 6 provides LED descriptions for E-240W-A indoor ONTs.
Connection
(1)
Description
POTS ports This connection is provided through RJ-11 ports. Up to two POTS connections are
supported.The POTS ports support voice services.
Ethernet ports This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000
Base-T Ethernet interfaces are supported.The Ethernet ports can support both data and
in-band video services on all four interfaces.
USB ports This connection is provided through 2 USB ports. The ONT supports external USB hard
drives that can be made accessible to all LAN devices.
WPS buttons The Wi-Fi Protected Setup buttons are labeled WPS2.4G and WPS5G. These buttons
enable and disable WLAN data encryption.
WLAN button Wi-Fi service is compliant with IEEE 802.11 standards and is enabled and disabled using
the WLAN button.
Reset button Pressing the Reset button for less than 10 seconds reboots the ONT; pressing the Reset
button for 10 seconds resets the ONT to the factory defaults, except for the LOID and SLID.
Power input This connection is provided through the power cable with a Molex connector.
On/Off button This button turns the ONT on or off.
Fiber optic port This port provides the connection for the fiber optic cable.
TEL
1 and 2
VoIP
WPS
2.4G
WLAN
2.4G
Lan
1 to 4
Auth
Link
Battery
26028
BTRY
LINK
POWER
AUT H
LAN1
LAN2
LAN3
LAN4
TEL1
TEL2
VOI P
W
P
S 2.4G
WPS
5G
W
LA
N
2.4G
W
LA
N
5G
U
S
B
INTE
R
N
E
T
Power
USB
WPS
5G
WLAN
5G
Internet
Release 06.00.00h | January 2019 | Edition 08
