User Guide WebUI screens
3TG-02285-AAAA-TCZZA-02 © 2022 Nokia. Nokia Confidential Information
Use subject to agreed restrictions on disclosure and use.
45
Ethernet /LAN
To view Ethernet LAN information, select Network from the WebUI's left-side menu,
and then select Ethernet. Click on the arrow beside Ethernet and then select LAN to
view the LAN settings, including static DHCP information.

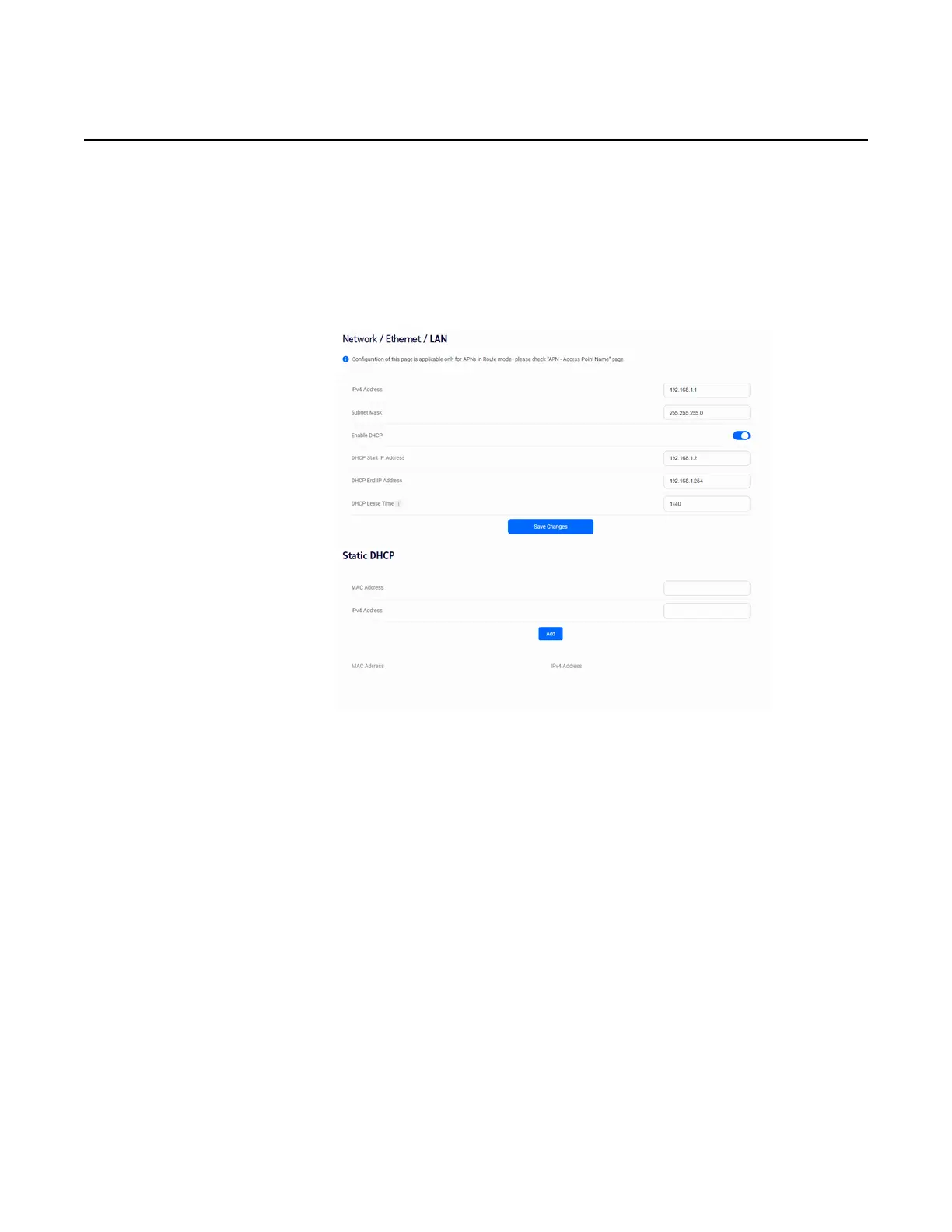

Figure 30 Network/Ethernet/LAN screen example
You can configure the following Ethernet LAN parameters:
• IPv4 address
• Subnet Mask
• enable/disable DHCP
• DHCP start IP address
• DHCP end IP address
• DHCP lease time
Click Save changes.
For static DHCP, bind MAC addresses to the LAN by entering the MAC and IP
addresses, and then clicking Add. Repeat for all MAC addresses to be bound.
