Nordson 3100V Series User Manual

Installation
A1-60
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
4130814
2
11
6
7 8
1
4
5
14
9
10
15
12 13
3

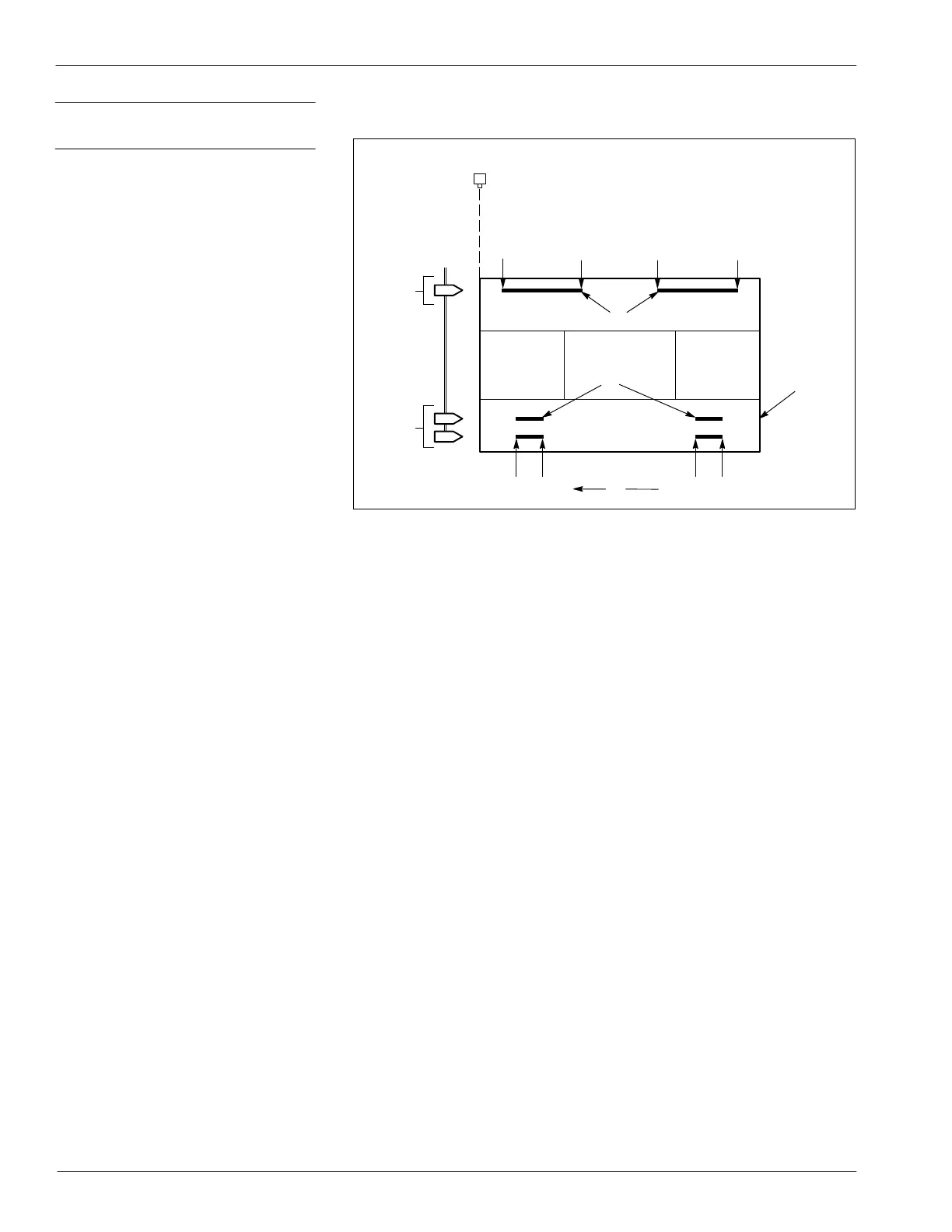

Fig. A 1-38 Pattern Control Process
1. Direction of line
2. Product
3. Sensor
4. Gun (output 1)
5. Guns (output 2)
6. Start point of first bead (output 1)
7. End point of first bead (output 1)
8. Start point of second bead
(output 1)
9. End point of second bead
(output 1)
10. Start point of first bead
(output 2)
11. End point of first bead (output 2)
12. Start point of second bead
(output 2)
13. End point of second bead
(output 2)
14. Pattern (output 1)
15. Pattern (output 2)
8. Programming PATTERN
CONTROl Settings (contd.)
