After defining and programming a pattern set, you should store it so you
can use it any time you want. Refer to UsingaStoredPatternSetin the
Operation section of this manual. You can also replace an existing
pattern set with a new one. You can store up to 99 pattern sets.
1. If you have not already done so, program your pattern sets. Refer to
the preceding procedure, Programming a Pattern Set.
2. See Figure A 1-42. In the System Setup area, press the Move Down
key (1) until the STORE light (2) turns on.
3. Check the Multipurpose display. The display flashes the number of
the next available pattern set. For example, if you have already
stored three pattern sets in system memory, the Multipurpose display
will flash the number 4.

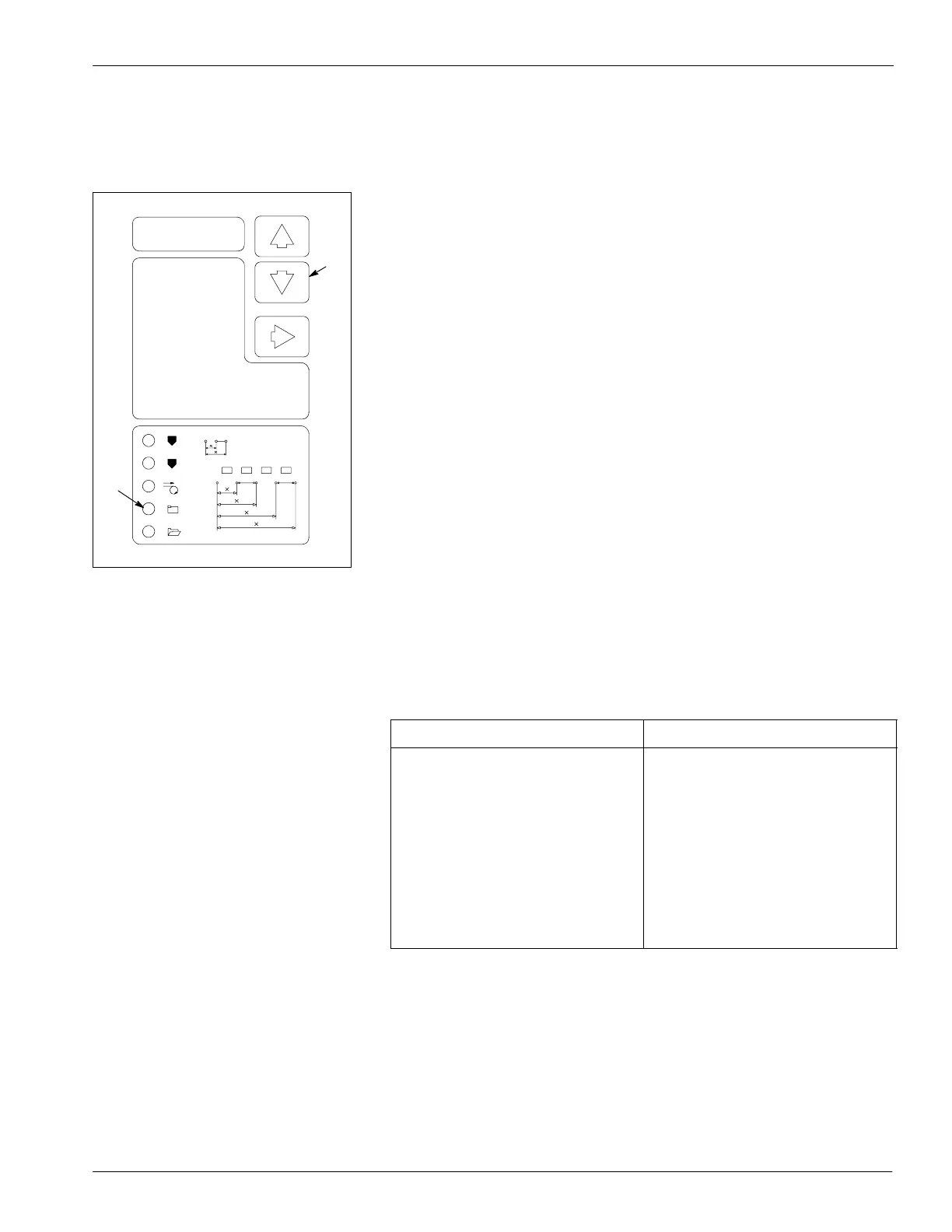

Fig. A 1-42 Selecting the Store
Function
1. Move Down key
2. STORE light
4. Determine whether you want to save the pattern set as a new pattern
set or whether you want to replace an existing pattern set.
To
Do this
Save the pattern set as a new
pattern set
Press the Enter key. The
Multipurpose display stops
flashing.
Replace an existing pattern set
with a new pattern set
A. Press the Up or Down key below
the Multipurpose display until the
number for the pattern set y ou
want to replace appears. The
Multipurpose display flashes.
B. Press the Enter key. The
Multipurpose display stops
flashing.
S
t
o
r
i
n
ga
P
a
t
t
e
r
n
Se
t
