Message Formats General Information
NFS-3030 Operating P/N 51344:C 11/4/03 13
The second, third and fourth lines always contain the same device information, as follows:
The point event example screen below shows a trouble condition that has been generated by the
detector on loop 3, address 2.

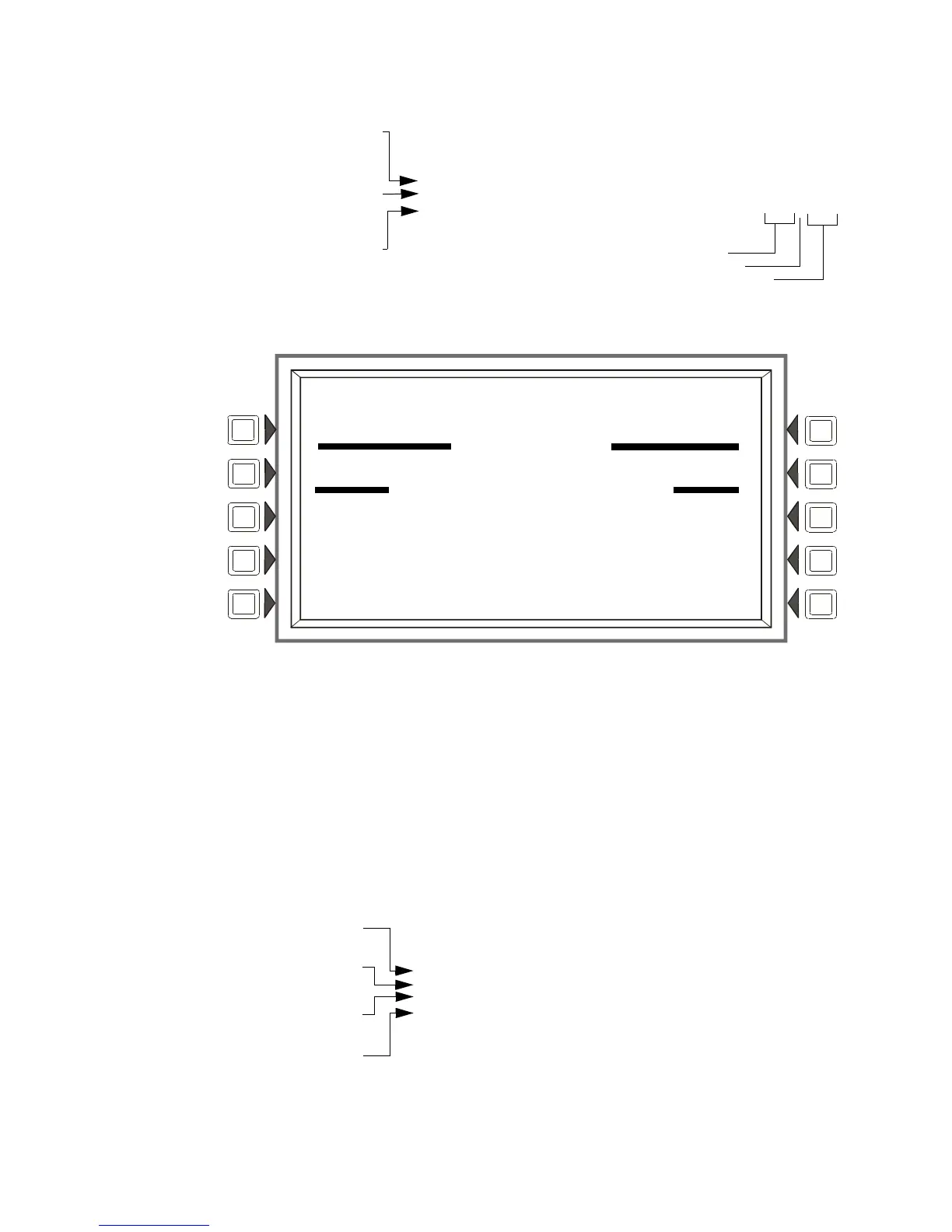

Figure 1.3 Point Event Display Example
The event counts display shows the counts for outstanding events. The date in line eight gives the
current time. The soft keys may be used to deal with the event; their functions are described in the
Operation section of this manual.
System Events Format
When a system trouble occurs, a message is generated to the panel that displays on the top of the
LCD screen, and soft keys display available functions that may be used to handle the event.
The top four lines contain event information, and are formatted as follows:
The system trouble event example screen below shows an annunciator trouble condition.
FIRE ALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A WED JUN 25, 2003 L03D002
Line 2 - Displays the custom
label and the extended label
Line 3 - Displays the primary
zone label, the primary zone
number, and the software
Type ID.
Line 4 - Displays event time,
event date and device
address.
Loop number
Detector
Device address
TROUBLE DETECTOR FAILED TEST
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A WED JUN 25, 2003 L03D002
EVENT COUNTS
FIRE ALARMS:000 PREALARM:000 TROUBLE:001
SUPERVISORY:000 SECURITY:000 OTHER: 000
11:58:46A WED JUN 25, 2003
ACKNOWLEDGE SIGNAL SILENCE
MORE INFORMATION SYSTEM RESET
PROGRAM/ALTER STATUS BACK
TROUBLE
ANNUN 1 TROUBLE
LAKEVIEW GENERAL HOSPITAL
11:58:45A WED JUN 25, 2003
Line 1 - Displays
TROUBLE and whether
it has been
acknowledged or cleared
Line 2 - Displays trouble
type
Line 3 - Displays custom
message.
Line 4 - Displays event
time and date and node
address.
