Smoke Detector Read Status
NFS-3030 Operating P/N 51344:C 11/4/03 39
NEXT POINT/PREVIOUS POINT - Press to view next or previous point.
ACCEPT - Press to accept the displayed point for further viewing.
Pressing the ACCEPT soft key on the Point Select Screen will display the information that
corresponds to the chosen point. Each point type has its own screen.
Note: The first four lines of the display may indicate an alarm for a point unrelated to the requested
point information displayed below them.
3.2 Smoke Detector
When a detector address is entered into the Point Select Screen and the ACCEPT soft key is
pressed, the following screen will display if the detector is a smoke detector.

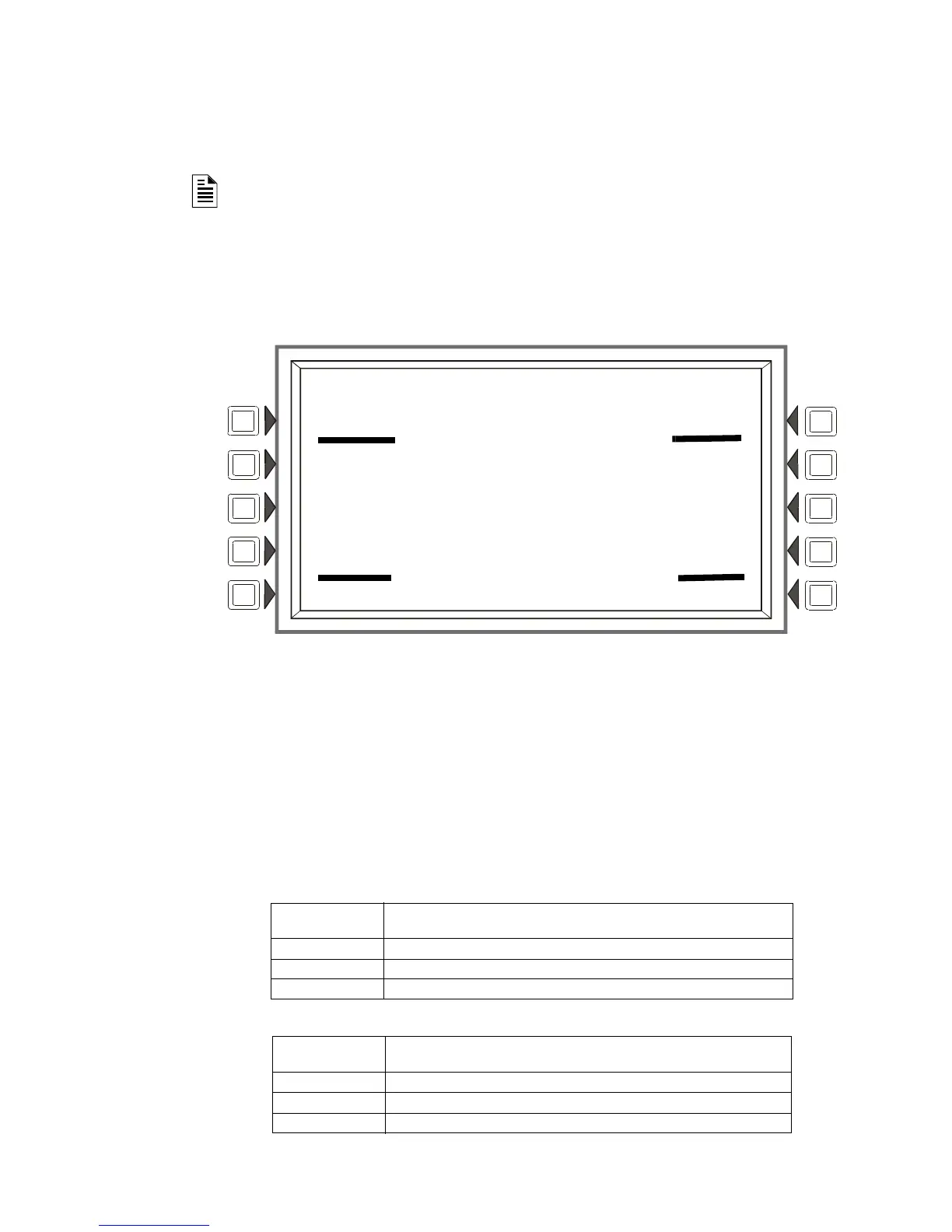

Figure 3.2 Smoke Detector Screen - Read Status
Display
Lines 1- 4 - This could display any current event message, or, as in this example, the System
Normal message.
Line 5 - This line contains the screen title and the address of the point being read.
The area between the separator lines, lines 6-14, shows all information concerning the selected
point, which is L03D052 in the above example.
Line 6 - Line 6 displays two statistics that display for inputs (detectors and modules) and zones; in
the above example they are:
AUTOMATIC INACTIVE
The first field displays the point control. There are three designations that could appear in this field
The second field displays the point status. There are two designations that could appear in this field.
Point Control
Designation
Description
AUTOMATIC The point is being controlled automatically by the panel.
DISABLED The point has been disabled by an outside source.
TROUBLE The point is in a trouble state and is no longer functioning automatically.
Point Status
Designation
Description
INACTIVE The point is currently reporting no events.
ACTIVE The point is currently in an off-normal status.
PREALARM The point is currently in a prealarm status.
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A FRI JUL 18, 2003
READ ADDRESS: L03D052
AUTOMATIC INACTIVE
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 SMOKE(PHOTO)
Z005, Z027, Z066, , ,
,,,,,
VALUES: 011% OF ALARM, 045% OF PREALARM
ALARM: 6= 1.66%, PREALARM: 3= 0.47%
ACTION/STATUS: NONE/VERY CLEAN
PEAKS:56% VERIFY COUNT:02 CO-OP:D100,158
10:22:34A FRI JUL 18, 2003
BACK
