Operation of the Control Panel Overview
20 NFS-3030 Operating P/N 51344:C 11/4/03
Section 2 Operation of the Control Panel
2.1 Overview
The control panel periodically checks for events. An event can be any change in the status of a
device, a transfer of information between a device and the FACP, or a transfer of information
between two devices. Some events are considered background events and are not seen by the user.
The events that are of primary concern to the operator are those identified as off-normal events. An
off-normal event is an event which indicates activity or change in condition that requires the
attention and/or response of an operator. Examples of possible off-normal events are:
•Activation or change in condition of a monitoring device such as a detector or module
•System troubles, such as battery problems, device supervision problems, etc.
When there are no off-normal events, the panel displays the System Normal screen (refer to Figure
2.1). When there is an off-normal event, the panel will display it (for event formats, refer to "Event
Reporting Format" on page 12 ). The action required will vary according to the type of event.
2.1.1 System Normal
The system operates in System Normal mode when no alarms or troubles exist. In this mode, the
control panel displays a System Normal message as follows

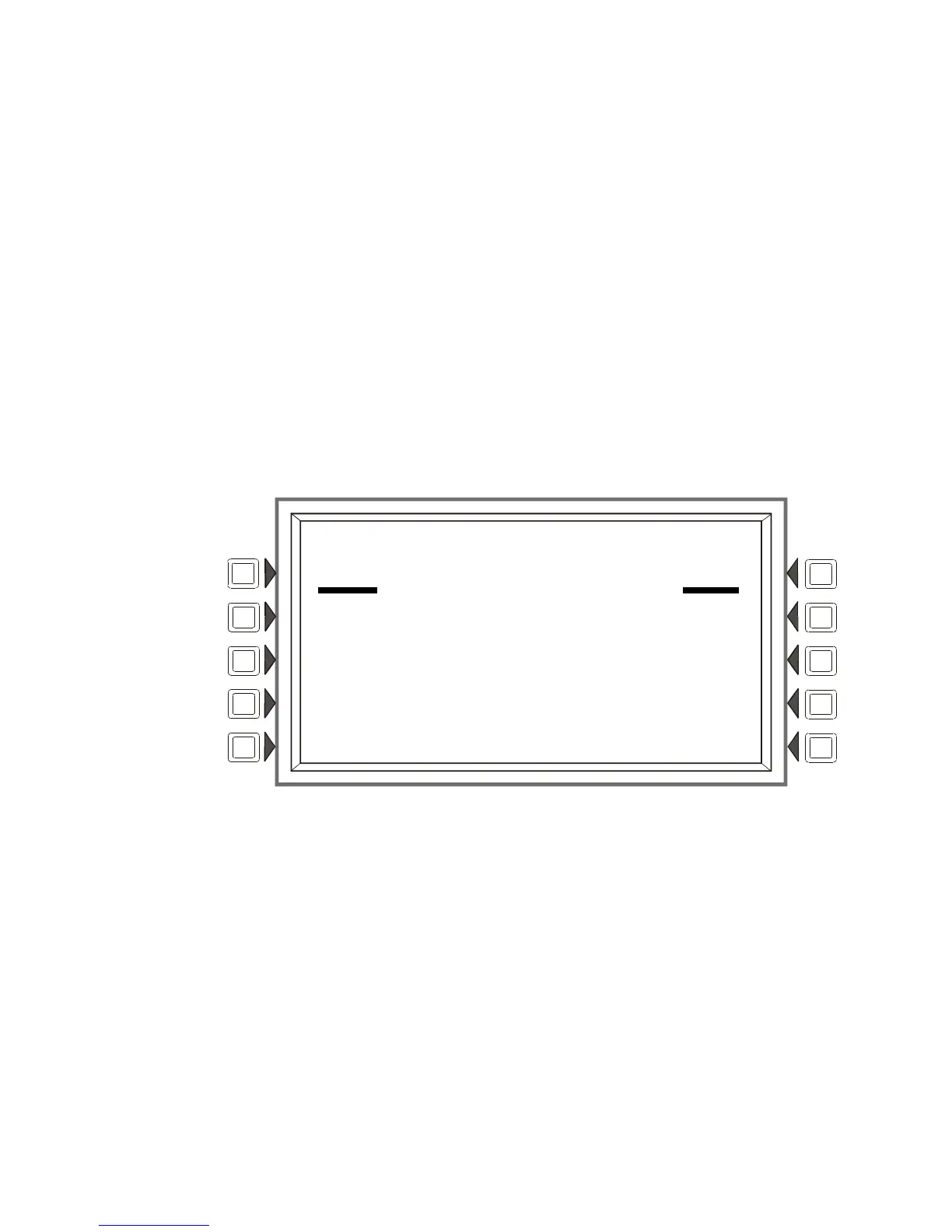

Figure 2.1 System Normal Screen
The control panel performs the following functions at regular intervals:
•Polls all SLC devices and Panel Circuits to check for valid replies, alarms, troubles, circuit
integrity, and supervisory signals, etc.
•Checks power supply troubles and batteries
•Refreshes the panel display and updates time
•Scans for any panel screen, keypad, and Control Key entries
•Performs a detector automatic test operation
•Tests system memory
•Monitors for microcontroller failure
No action is required of the operator when the panel is operating in Normal mode.
2.1.2 Acknowledging an Event
When the panel detects an off-normal event and the information is displayed on-screen, one of the
soft keys displayed on the screen is ACKNOWLEDGE. Use this key to respond to new alarm or
trouble signals. When this key is pressed, the control panel does the following:
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A WED JUN 25, 2003
MAIN MENU
