1. CONFIGURATION
1.5 Interface specifications
1.5.1 USB interface specifications
1.5.1.1 USB interface overview
(1) Basic specications
USB (Hi-Speed USB supported)
(2) Transmission mode
Full speed (Max. 12 Mbps ± 0.25%)
High speed (Max. 480 Mbps ± 0.05%)
(3) Power control
Self-powered device
1.5.1.2 USB interface connector and cable
(1) Connector
• Printer side: B-receptacle (female)
Upstream port
Product equivalent to UBR24-4K5G00 (Made by ACON)

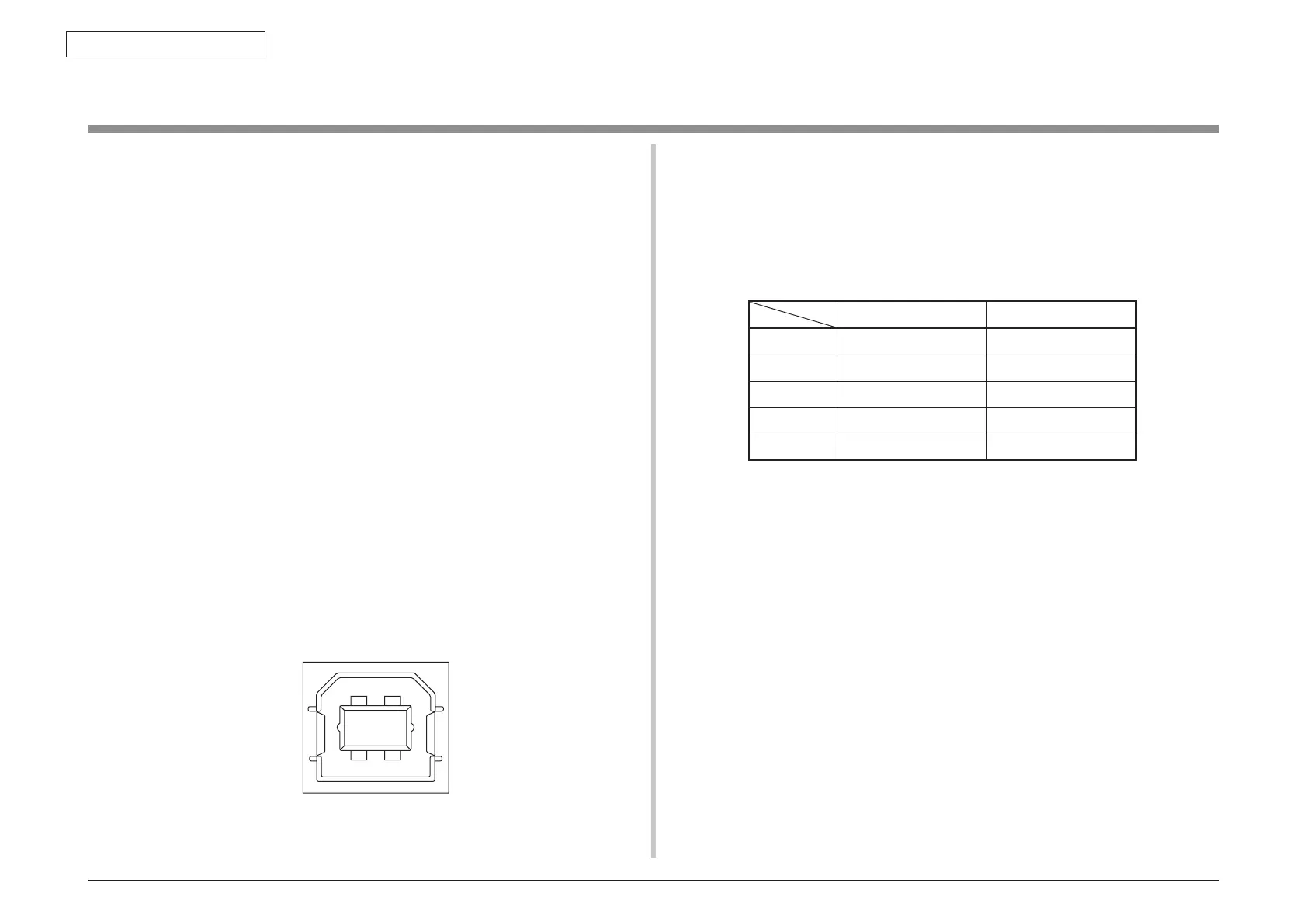

Connector pin arrangement
((2) Cable
Length: USB 2.0 cable no more than five meters long
(two meters or less recommended)
(A shielded USB 2.0 cable shall be used.)
1.5.1.3 USB interface signals
Signal name Function
1 Vbus Power (+5V)
2 D- For data transmission
3 D+ For data transmission
4 GND Signal ground
Shell Shield
• Cable side: B-plug (male)
2
34
1
