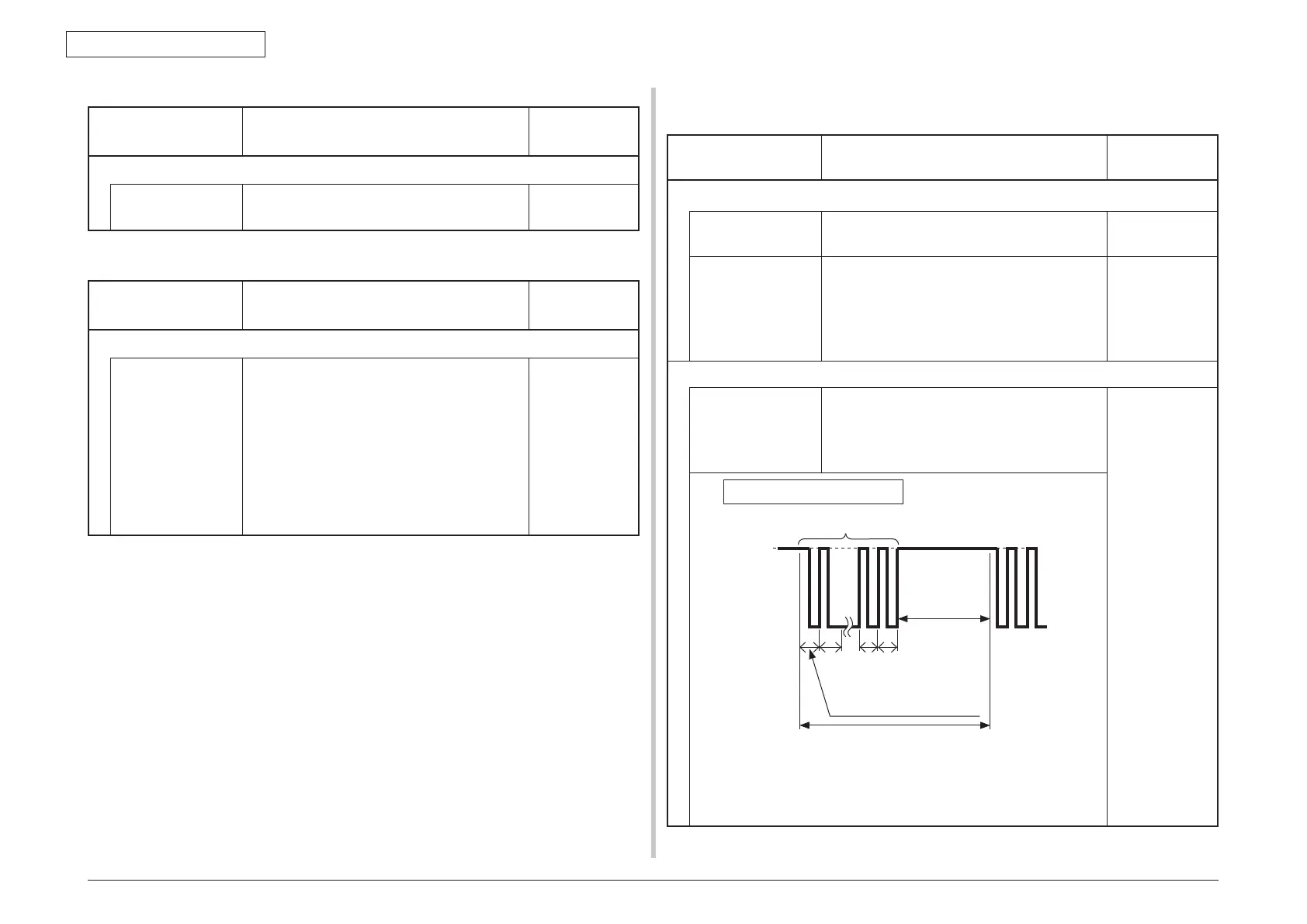

Oki C301 Maintenance Manual

44951501TH Rev.2
7-26
Oki Data CONFIDENTIAL
7. TROUBLESHOOTING
(1-3) Error message display related to operator panel
Check item Check operation
Actions for NG
results
(1-3-1) Error message
Error message Check detail in the error messages list. Follow
instructions.
(1-4) RAM CHECK or INITIALIZING persists
Check item Check operation
Actions for NG
results
(1-4-1) Operator panel display freezes
Operator panel
display
RAM CHECK or INITIALIZING persists. Remove an
option RAM
and SD card
and perform
checking.
Replace the
CU/PU board to
address a NG
result.
7.5.2.(2) Problem operation after printer is turned on
(2-1) No operations start
Check item Check operation
Actions for NG
results
(2-1-1) Power supply periphery check
AC power supplied
to printer
Check the AC power supply voltage. Supply AC
power.
5V and 24V power
supplied to CU/PU
board
Check the power supply by using the CU/PU
board POWER connector 10.
Pins 7, 8 and 9: 24V
Pins 1, 2 and 3: 5V
Pins 4, 5 and 6: 0VL
Pins 10, 11 and 12: 0VP.
Replace the low
voltage power
supply.
(2-1-2) Confirmation of the power switch LED
Power Switch LED Confirm whether the LED is off.
If the LED blinks rapidly, the number of
blinking times in a cycleshows an error. The
timing of blinking rapidly is shown in the
below figure
Replace either
of the power
supply unit, the
CU board, SW-
Assy (Front),
the cables
connected to the
CU board and
power supply
unit or the cables
connected to
the CU board
and SW-assy.In
case of 2, 4, 8 or
10 times of LED
blinking rapidly:
Replace either of
the power supply
unit, the CU
board, the cables
connected to the
power supply
unit and the CU
board.
In case of 3, 6 or
9 times of LED
blinking rapidly:
Replace the CU
board.
1.0 sec lighting
(No blinking)
A cycle
…
One time blinking (2.5Hz)
ON times 250mS
OFF times 150mS
N times blinking
ON
OFF
Rapid blinking of the LED
